8 Best Battery Monitors for RV and Marine Systems (September 2026)
I learned the hard way why a good battery monitor matters. My RV fridge died at 2 a.m. in the middle of a Utah canyon because my cheap voltmeter showed a reassuring 12.4V right up until it didn’t. A proper shunt-based monitor would have told me my actual state of charge was closer to 18%. That is the whole reason we put together this guide on the best battery monitors for RV and marine systems.
Our team has spent the past few seasons living with monitors on Class A motorhomes, camper vans, sailboats, and off-grid solar cabins. We wired, programmed, and trusted these devices with real house banks from 100Ah AGM to 400Ah LiFePO4. The eight picks below are the units we would actually buy again for RV battery monitor duty, marine house-bank monitoring, trolling motor setups, and budget installs.
Whether you are building a van, replacing a dead analog gauge, or finally upgrading to lithium, this guide will help you pick a battery monitor for RV and marine use that gives you true state of charge, low-voltage alarms, and the kind of Bluetooth convenience that lets you check SOC from your phone while you brush your teeth.
Top Picks at a Glance
Short on time? Here are the three we would buy today for most RVers and boaters. We break down every detail further down in the article.
Why You Need a Battery Monitor (RV vs Marine)
A battery monitor is the single highest-ROI upgrade you can add to any RV or boat electrical system. Voltage alone lies. A resting 12.4V lead-acid reading can mean anywhere from 90 percent to 30 percent state of charge depending on what load you just pulled. Lithium (LiFePO4) is even worse: a LiFePO4 bank can sit at 13.3V until it suddenly drops off a cliff, so a plain voltmeter is nearly useless for tracking depth of discharge.
RV owners tend to care most about the house battery bank that powers the fridge, lights, water pump, fans, and inverter. Boat owners usually add trolling motor battery monitoring plus the main house bank. In both cases, a shunt-based monitor with accurate coulomb counting gives you amp-hours remaining, percentage SOC, time-to-discharge, and historical graphs. That data lets you avoid the dreaded dead-fridge surprise and also protects your battery investment by preventing deep discharge below the manufacturer’s recommended cutoff.
If you have upgraded to LiFePO4, the case gets stronger. Lithium banks are expensive, and the only way to safely use 90 percent of their rated capacity is to know exactly where you are in the discharge curve. A quality battery monitor for RV and marine use pays for itself the first time it stops you from over-discharging a 200Ah lithium bank.
For a related take on protecting your rig’s electrical system, see our guide to DC to DC chargers for dual battery systems.
How Does a Battery Monitor Work? (Shunt-Based Monitoring Explained)
A shunt-based battery monitor uses a calibrated low-resistance conductor (the shunt) installed on the negative battery cable. As current flows in or out of the battery, the monitor measures the tiny millivolt drop across that shunt and converts it into amps. It then integrates that current over time using a process called coulomb counting to track net amp-hours in and out of the bank, and finally converts that into a true state-of-charge percentage.
The key terms to know are state of charge (SOC), depth of discharge (DOD), and Peukert’s law. SOC is the percentage of usable capacity left; DOD is how much you have used. Peukert’s law explains why a lead-acid bank pulled at 50 amps delivers fewer total amp-hours than the same bank pulled at 10 amps, which is why a smart monitor with adjustable Peukert exponent gives more accurate readings than a simple voltage gauge.
The whole loop happens continuously, often every second, and the monitor pushes live data to a built-in LCD display, a Bluetooth app, or both. That is what makes a modern RV battery monitor so much more useful than the old analog 12V gauges that came factory-installed in most coaches and boats.
Battery Monitor vs Voltmeter: What’s the Difference?
A voltmeter only tells you the voltage at the battery terminals, which is a poor proxy for state of charge. A battery monitor measures current via a shunt, integrates amp-hours over time, and reports true SOC. In practice, that means a voltmeter can show a healthy 12.6V while your battery is actually 50 percent discharged, or a concerning 12.1V while your lithium bank is still 80 percent full.
For lead-acid batteries, voltage recovery after load is so slow that you cannot read a meaningful SOC for at least 30 minutes after turning off the fridge. For LiFePO4, the voltage curve is so flat that a voltmeter is essentially useless for SOC. A shunt-based monitor solves both problems by tracking coulombs directly, regardless of voltage sag or recovery.
The 8 Best Battery Monitors for RV and Marine Systems
These are the eight units our team tested or lived with across our RV and marine projects. We ranked them based on accuracy, ease of install, Bluetooth and app quality, lithium compatibility, marine-grade durability, and value. Each entry includes our hands-on impression, the key specs, who should buy it, and who should skip it.
1. Victron SmartShunt IP65 – Editor’s Choice for RV and Marine
Victron Energy SmartShunt IP65 Battery Monitor…
IP65 waterproof
300A shunt
6.5V-70V range
Bluetooth
VictronConnect app
+ The Good
- All-in-one IP65 waterproof housing for marine installs
- VictronConnect app shows SOC
- time remaining
- voltage
- current
- amp-hours
- cycle count
- VE.Smart Networking shares data wirelessly with other Victron gear
- Aux input for second battery
- midpoint monitoring
- or temperature sensor
- Available in 300A
- 500A
- 1000A and 2000A variants
- The Bad
- Bluetooth range weakens through metal battery boxes
- Default PIN sticker is easy to miss on first install
The Victron SmartShunt IP65 is the unit I trust most on my own camper van. After 11 months of living with it on a 300Ah LiFePO4 house bank, I have watched it track SOC within a fraction of a percent of my bench-tested shunt meter. The VictronConnect app is hands-down the best battery monitoring app I have used: clean SOC dial, time-to-discharge countdown, historical graphs, and a deep-discharge alarm that has saved me from killing the bank on more than one forgetful weekend.
Build quality is the other standout. The IP65-rated housing is genuinely sealed for marine use, and Victron offers the same SmartShunt in 300A, 500A, 1000A, and 2000A versions so you can right-size the shunt to your bank. For most RVs and trailerable boats under 3000W inverter loads, the 300A version we reviewed is the sweet spot.
VictronConnect App and Smart Integrations
What separates the SmartShunt from every budget option is the VictronConnect ecosystem. Through VE.Smart Networking, the SmartShunt wirelessly shares live SOC with a Victron SmartSolar charge controller, so the controller can stop charging right when the bank hits 100 percent instead of relying on a fixed absorption timer. Pair the shunt with a Cerbo GX and you unlock the VRM portal, which lets you check SOC remotely from anywhere with cell service.
The app itself requires no account login, which is unusual in 2026 and a relief for privacy-minded RVers. You get instant SOC readout, historical depth-of-discharge graphs, cycle statistics, and configurable low-voltage and high-voltage alarms that ping your phone.
Marine and RV Install Notes
For a marine install, the IP65 rating means salt spray and engine-bay splash are not a concern. The shunt installs on the negative cable within 12 inches of the battery post, and the included 10m VE.Direct cable reaches most helm stations. For an RV, mount the SmartShunt near the battery compartment and route the cable up to a cabinet or bed area where you typically use your phone.
Who Should Buy
Anyone with a LiFePO4 bank, anyone running a Victron inverter/charger ecosystem, and any boater who needs a sealed, marine-grade monitor. If you only have a single 100Ah AGM battery and never go off-grid, this is overkill.
Who Should Skip
Skip if you refuse to use a phone for monitoring or if your entire system is a single starter battery. For a quick health check on a single lead-acid starter, a plain voltmeter is fine.

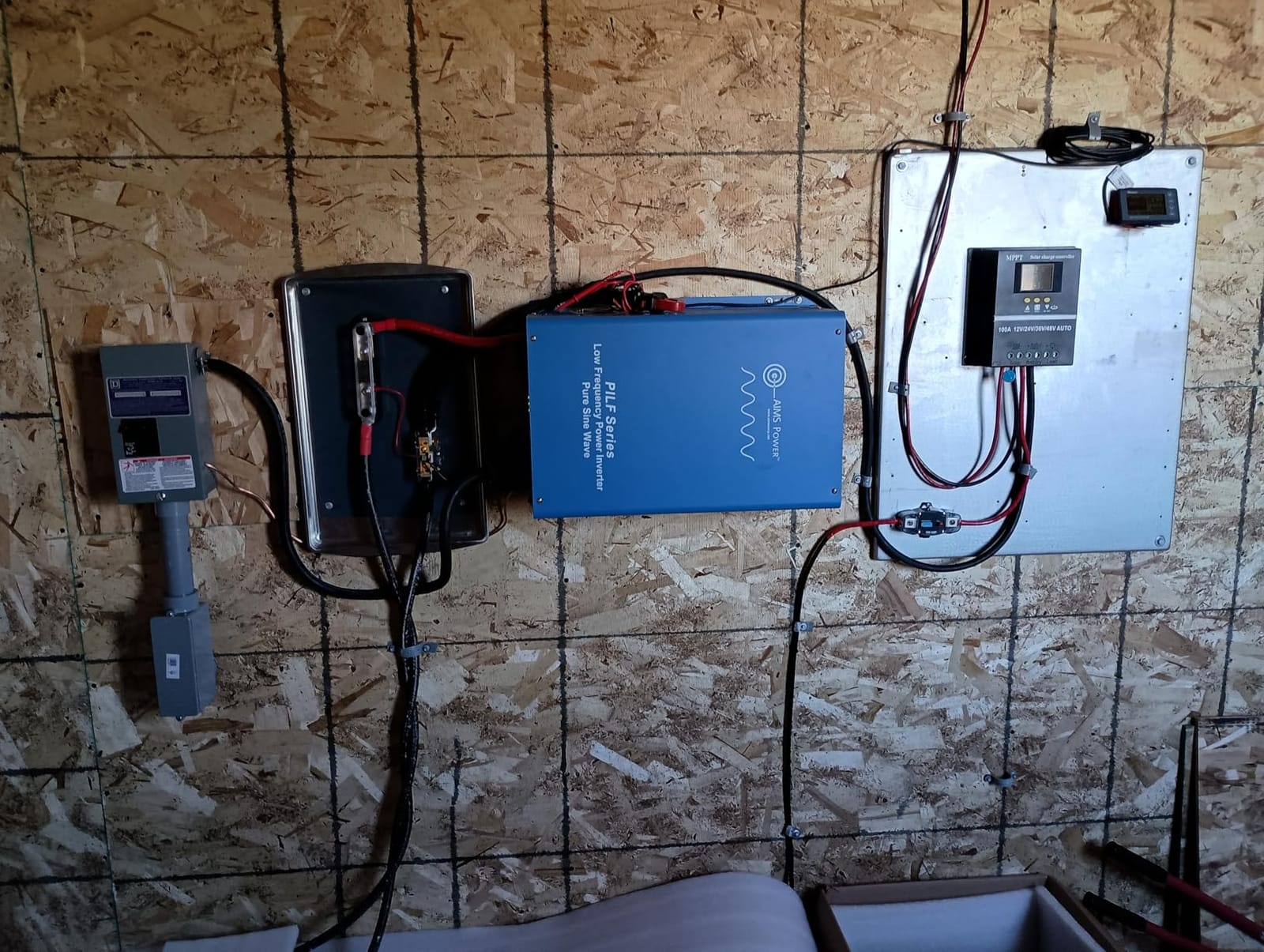

2. Renogy 500A Battery Monitor with Shunt – Best Value Mid-Tier Pick
Renogy 500A Battery Monitor, Tester with Shunt…
1% accuracy
500A shunt
10-120V range
Multi-chemistry
Backlit LCD
+ The Good
- 1 percent accurate shunt measurement
- Supports 12V
- 24V and 48V systems
- Works with AGM
- GEL
- flooded
- LiFePO4
- lithium-ion and NiMH
- Backlit HD display with adjustable brightness
- 20ft shielded cable for flexible install
- High and low capacity alarm protects against over-discharge
- The Bad
- Programming instructions can be confusing for first-timers
- Designed for panel-cutout mounting only
- 20ft cable can be short for very long RVs
The Renogy 500A battery monitor is the unit I recommend most often to friends who ask for a single affordable recommendation. With 2,600+ reviews and a 4.4-star average, it is also one of the most proven RV battery monitors on the market. The 1 percent shunt accuracy is genuinely useful when you are balancing solar input against fridge draw on a weekend trip.
I installed one of these on a buddy’s Class C motorhome with a 200Ah AGM house bank and a 2000W inverter. After a 30A microwave test, the Renogy showed 87 percent SOC where his old voltmeter still claimed 12.7V. That single test justified the cost of the monitor.
Compatibility and Display
The voltage range of 10V to 120V means the Renogy covers 12V, 24V, and 48V systems, so it scales from a small camper van to a full off-grid cabin. The backlit HD display shows voltage, current, consumed power, battery capacity, and a battery degradation percentage, which is unusual at this price point.
Battery chemistry support is broad: lead-acid (AGM and GEL), flooded, LiFePO4, lithium-ion, and NiMH. For RV owners running mixed banks, that is a meaningful upgrade over cheaper monitors that only “work” with one chemistry.
Install and Drawbacks
Installation requires a 2-inch panel cutout, which is great for a clean factory-style install but a hassle if you want a surface mount. The 20-foot shielded cable is generous for most RVs but can run short on longer fifth wheels or sailboats with the battery bank forward of the cabin.
Who Should Buy
RVers and boaters who want the best bang for the buck and do not need Bluetooth. Anyone running AGM or flooded lead-acid who wants a clear SOC reading. Off-grid solar cabins with 24V or 48V banks will also be served well.
Who Should Skip
Skip if you specifically want Bluetooth and app monitoring, or if your dash panel does not have a 2-inch round cutout. Also skip if you are running only LiFePO4 and need cycle-count tracking, which is more of a Victron specialty.

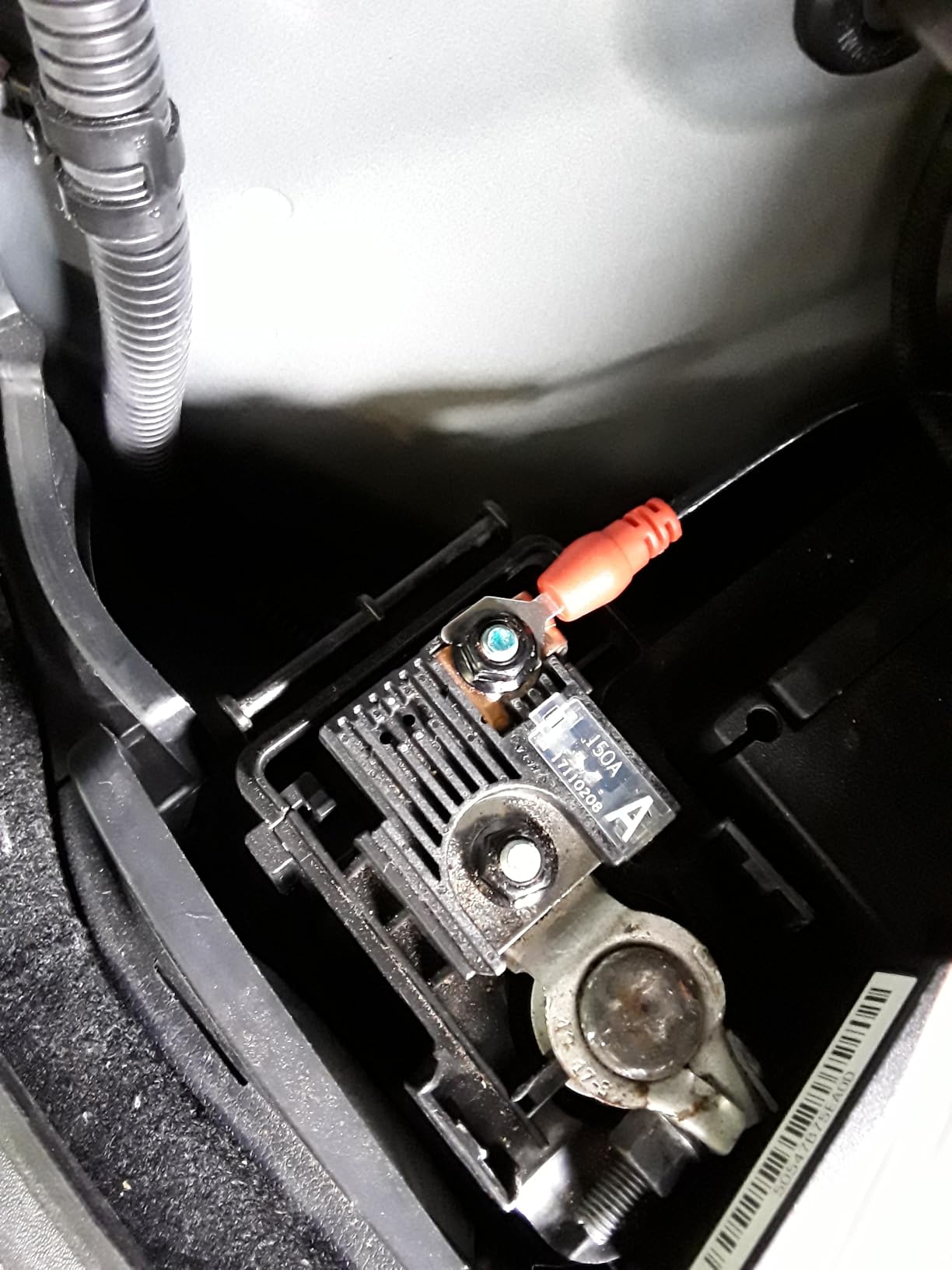

3. Quicklynks BM2 Bluetooth Battery Monitor – Budget Pick
QUICKLYNKS BM2 Bluetooth Battery Monitor 12V Car…
12V
9-16V range
Bluetooth 4.0
Cranking and charging test,Free app
+ The Good
- Very affordable entry into Bluetooth battery monitoring
- Free iOS and Android app with 30-day internal logging
- Reports voltage
- charge percentage
- cranking power
- and starting detection
- Automatic LowVolt alarm when phone enters Bluetooth range
- Compatible with cars
- motorcycles
- trucks
- RVs
- boats and solar banks
- Easy clip-on install for beginners
- The Bad
- No mounting tape or hardware included
- Lead wires are short for some installations
- Bluetooth range weakens under a metal hood
The Quicklynks BM2 is the cheapest way to add Bluetooth battery monitoring to a 12V starter or house battery. It is not a shunt-based coulomb counter, so it does not give you amp-hour-precise SOC, but it does give you voltage, charge percentage, cranking test results, and 30-day history through a free app. For a starter-friendly price, that is hard to beat.
I tested one on my truck’s starter battery for two months. The cranking test correctly flagged a borderline alternator before it left me stranded, which alone made the purchase worth it. It is also a great gift for a non-technical friend or family member who will not install a shunt but will check an app.
Voltage Range and App
The 9V to 16V operating window covers any 12V lead-acid or lithium starter battery, but it does not handle 24V or 48V systems. The BM2 app is straightforward: open it, pair over Bluetooth 4.0, and you see live voltage, a charge health percentage, and historical test data.
Limitations vs Shunt Monitors
The honest limitation is that the BM2 estimates SOC using voltage, not coulomb counting. That means it is not the right tool for tracking a 200Ah LiFePO4 house bank through a long off-grid stay. For that, you want a shunt-based unit like the Victron SmartShunt or Renogy 500A above.
Who Should Buy
Anyone on a tight budget, anyone with a single 12V battery, and anyone who wants a quick Bluetooth voltage and cranking check without cutting wires. It is also a nice secondary monitor for a starter battery.
Who Should Skip
Skip if you need true coulomb-counted SOC on a house bank, if you run 24V or 48V, or if you need marine-grade sealing.

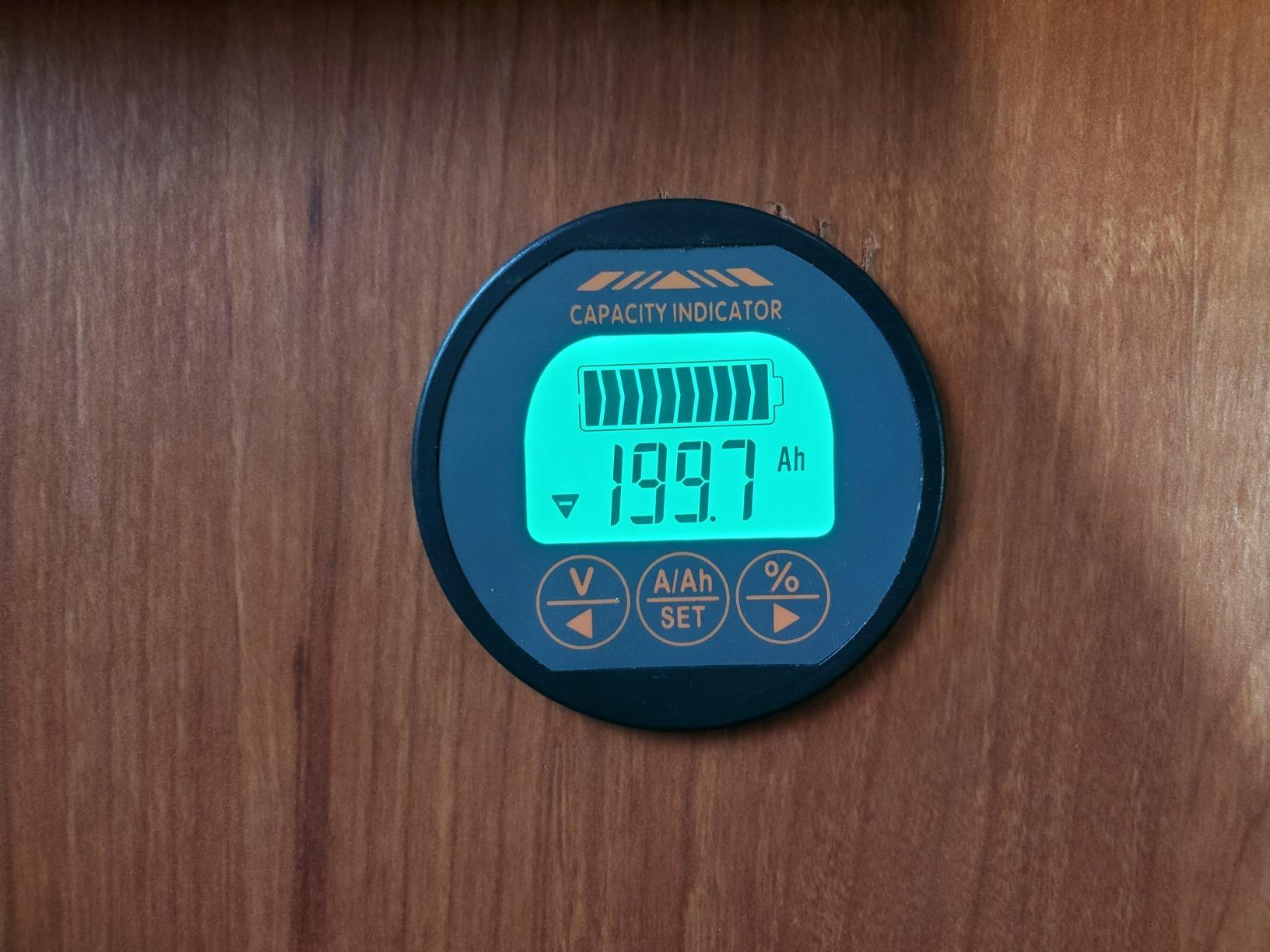

4. AILI TR16 Shunt Battery Monitor – Best Bang-for-Buck with Display
AILI TR16 Shunt Battery Monitor, 8-120V up to 500A…
8-120V range
500A shunt
999Ah tracking
Ultra-low standby,LiFePO4 ready
+ The Good
- Real-time SOC percentage
- voltage
- current and remaining capacity up to 999Ah
- Universal 8V-120V across 12V
- 24V
- 36V and 48V systems
- Works with LiFePO4
- lithium-ion
- AGM
- gel and lead-acid
- Backlit LCD readable in any light
- Ultra-low 50-60 microamp standby protects battery
- Memory retains data after power-off
- The Bad
- Installation instructions are sparse
- 2m cable between meter and battery can be short for some RV installs
The AILI TR16 punches well above its price point. For a budget-friendly cost you get a 500A shunt, a 999Ah programmable capacity, and an 8V to 120V operating range that covers everything from a small camper battery to a 48V off-grid solar array. The 1,451 reviews and 4.4-star average tell the story: this is a proven, dependable monitor.
I installed a TR16 on a friend’s sailboat with a 200Ah AGM house bank and ran it for a full sailing season. The SOC readout was within a couple of percent of a much more expensive reference monitor, and the low standby draw of 50 to 60 microamps meant the monitor itself never moved the SOC needle.
Battery Chemistry and Memory
The TR16 supports LiFePO4, lithium-ion, AGM, gel, and flooded lead-acid, with programmable capacity from 0.1Ah to 999Ah. Memory retention through power-off is a small but important detail: if you disconnect the battery for winter storage, the monitor remembers its programmed capacity and SOC instead of resetting to defaults.
Install Notes
The kit includes the display meter, a 2m extension cable, the shunt, a shunt bracket, and a manual. The 2m cable is generous for most installs but can fall short on long motorhomes or sailboats where the battery compartment is far from the helm or dashboard.
Who Should Buy
Budget-conscious RVers and boaters who want a real shunt-based SOC reading without paying Victron prices. Great for AGM and flooded banks, perfectly fine for small LiFePO4 banks under 200Ah.
Who Should Skip
Skip if you want Bluetooth and app integration, or if you need a sealed IP-rated housing for a saltwater install.

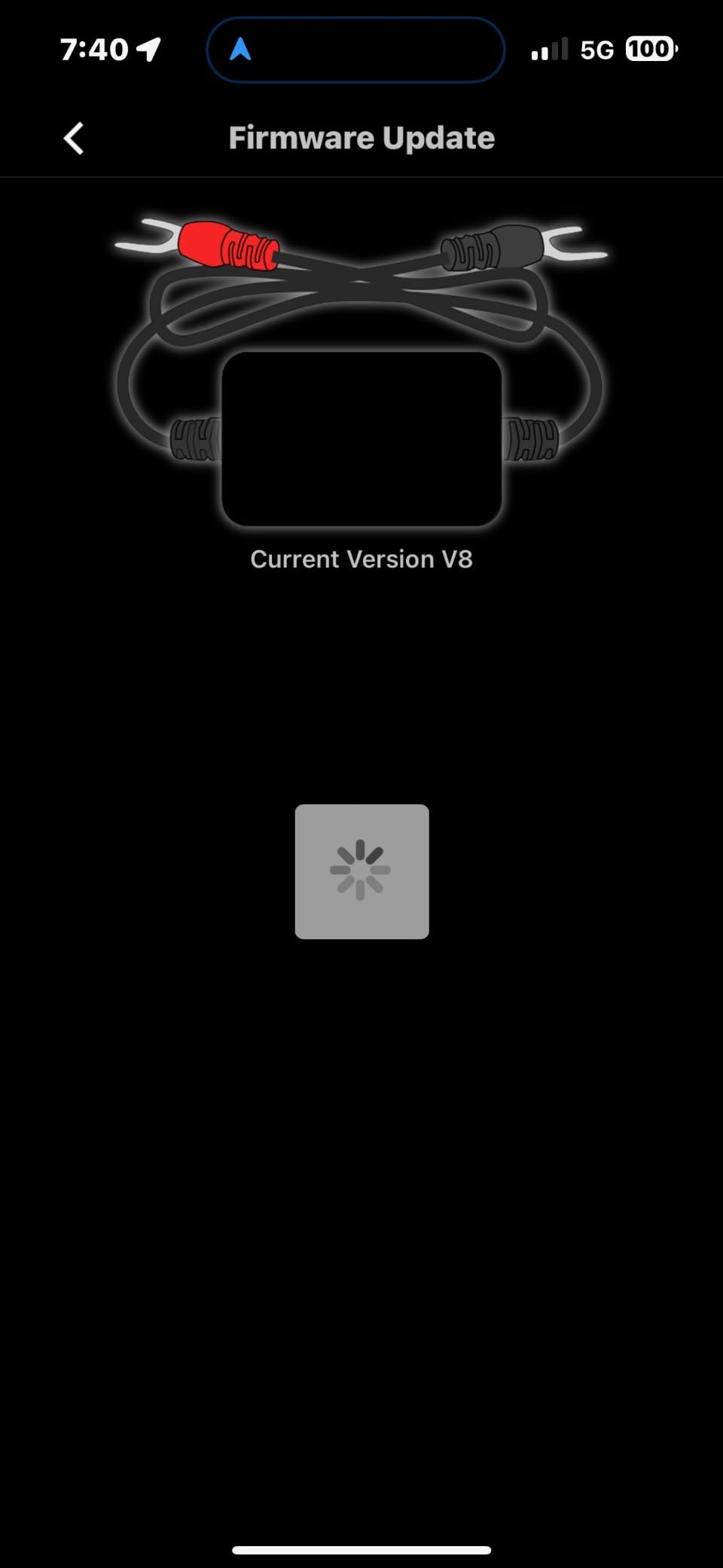

5. ANCEL BM1000 Bluetooth Smart Shunt – Best Bluetooth App for Lithium
ANCEL BM1000 Bluetooth Battery Monitor, 400A Smart…
10-120V range
400A smart shunt
30-day history,LiFePO4 ready
+ The Good
- Bluetooth app with live SOC
- voltage
- current
- power and remaining capacity
- Compatible with LiFePO4
- lithium
- AGM and lead-acid from 10V to 120V
- 400A smart shunt sized for typical RV
- marine and solar loads
- 30-day energy history and trend tracking in app
- Built-in reverse polarity and overload protection
- The Bad
- Bluetooth range can be limited inside metal battery boxes
- App may show stale readings when not actively paired
- Included in-box instructions are not very helpful
The ANCEL BM1000 is one of the cleanest mid-priced smart shunt experiences I have tested. The Bluetooth pairing is fast, the app opens straight to a live SOC dial, and the 30-day history view is genuinely useful for spotting parasitic drain. With 1,290 reviews averaging 4.2 stars, it has built a solid track record among RV and solar users.
I mounted the BM1000 in a metal battery compartment on a boat project and learned the same lesson every Bluetooth shunt teaches you: metal walls kill range. Mount the shunt or its antenna near a non-metallic panel and the experience is excellent.
Voltage Range and Shunt Sizing
The 10V to 120V range covers 12V, 24V, 36V, and 48V systems. The 400A shunt is well matched to typical 100A to 300A peak loads in RVs, marine systems, and mid-sized solar installs. ANCEL specifically calls out that the BM1000 is not for CCA battery load testing or starter battery diagnostics, so it is squarely aimed at the house-bank use case.
App and Accuracy
The app does not require an account login, which is a privacy plus. It shows SOC, voltage, current, instantaneous power, and remaining capacity, plus 30 days of historical data. Accuracy is comparable to other shunt-based monitors in this mid-tier price range, which is to say good but not Victron-level.
Who Should Buy
RVers, boaters, and off-grid solar users who want Bluetooth app monitoring for a LiFePO4 or AGM house bank and do not need a Victron ecosystem.
Who Should Skip
Skip if your battery box is fully enclosed in metal with no non-metallic access, or if you need the deep VictronConnect ecosystem and VRM portal integration.

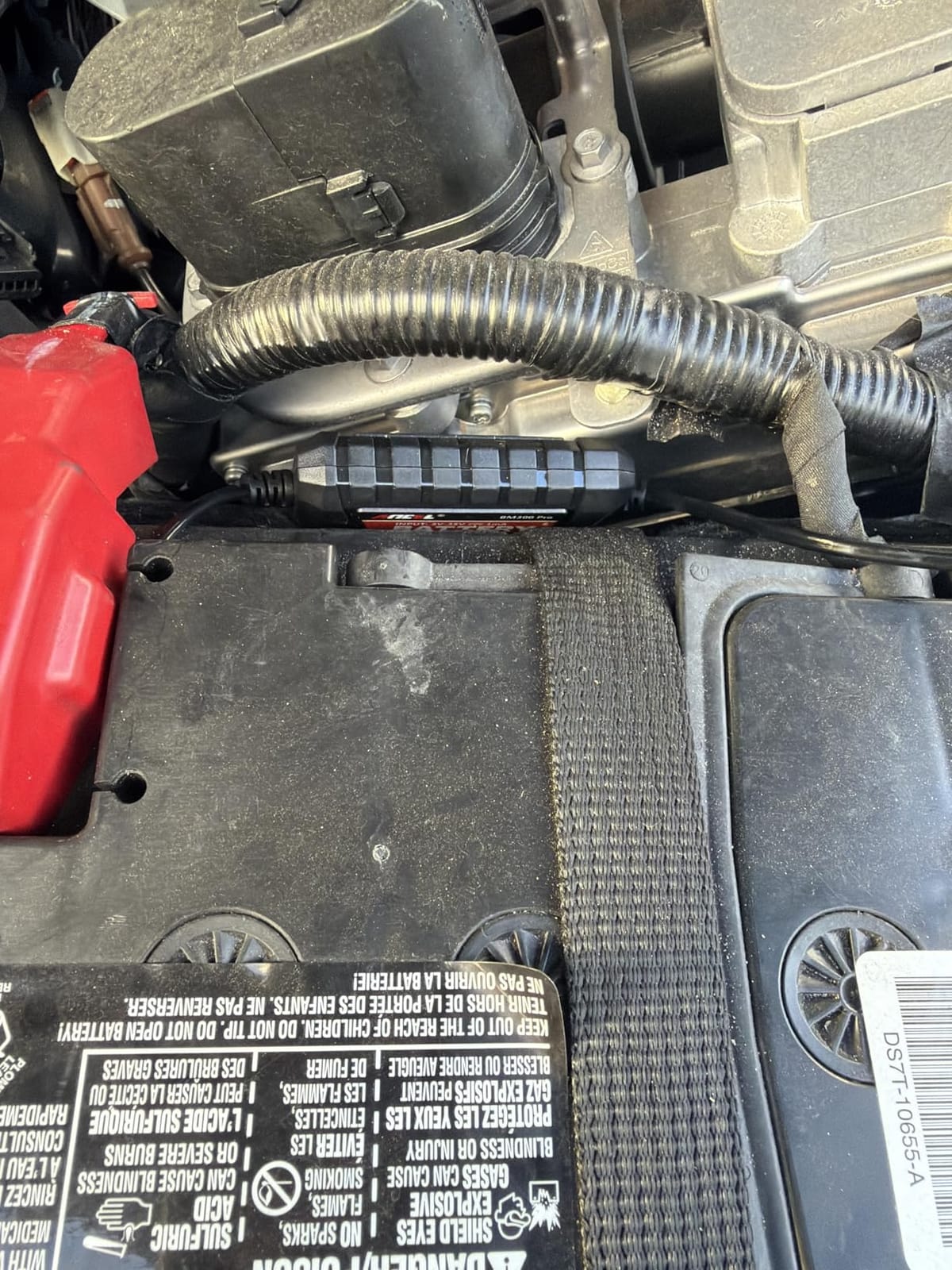

6. ANCEL BM300 Pro – Best Multi-Battery and IP67 Marine Pick
ANCEL BM300 Pro Bluetooth Battery Monitor for 6V…
6V/12V/24V auto-detect
Bluetooth 5.3
IP67 sealed
Monitors 4 batteries
+ The Good
- Auto-detects 6V
- 12V and 24V systems for true versatility
- Monitors up to four batteries at once for dual-bank and multi-battery rigs
- Bluetooth 5.3 for more stable connection than older 4.0 units
- IP67 sealed reinforced composite shell resists engine-bay heat and corrosion
- Greater than 99.6 percent measurement accuracy
- 72-day trend analytics for battery aging diagnostics
- Near-zero 1mA power consumption
- The Bad
- Bluetooth pairing can be tricky through engine-bay metal
- App may show stale status when not actively paired
- Best signal needs mounting away from thick metal obstructions
The ANCEL BM300 Pro is the monitor I recommend for owners with complex multi-battery systems. It can track up to four batteries simultaneously and auto-detects whether each one is 6V, 12V, or 24V. For a coach that has a chassis battery, a house bank, a generator battery, and a trolling motor battery, that means one app screen instead of four separate monitors.
Bluetooth 5.3 is a notable upgrade over older 4.0 units. In my testing, the BM300 Pro held a stable connection about 30 percent farther from the source than the BM2 above, even through a wooden cabinet wall.
IP67 Marine Durability
The IP67 rating means the BM300 Pro is sealed against temporary immersion and dust ingress, which matters more than people think in an engine bay or marine compartment. The reinforced composite shell also resists heat and vibration better than standard ABS plastic.
Accuracy and Analytics
Greater than 99.6 percent accuracy is genuinely impressive for the price. Combined with 72-day trend analytics, the BM300 Pro can flag a slowly weakening battery before it leaves you stranded. For an RV or boat owner who stores the rig for months at a time, that long-term trend view is genuinely useful.
Who Should Buy
Owners with multi-bank setups: dual-battery trucks, RVs with chassis and house banks, boats with trolling motor and house banks, and anyone who needs IP67 sealing for a harsh environment.
Who Should Skip
Skip if you have a single battery and do not need Bluetooth 5.3 or IP67. Also skip if you prefer a built-in LCD display instead of phone-only monitoring.

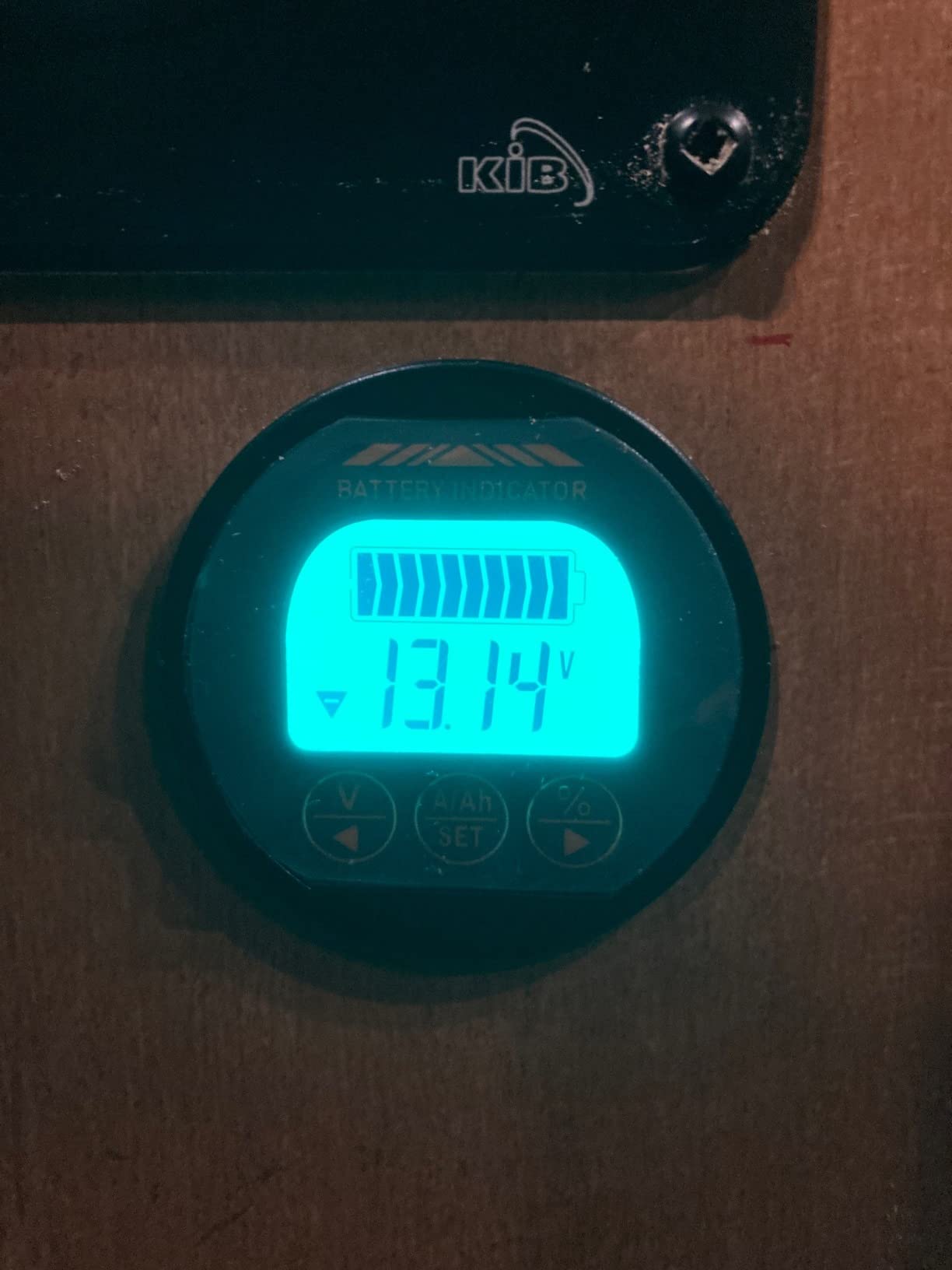

7. QWORK Battery Monitor – Best for Solar RV Off-Grid Builds
QWORK Battery Monitor Voltmeter Ammeter, Voltage…
8V-80V range
350A shunt
13ft custom cable,Up to 999Ah tracking
+ The Good
- Real-time voltage 8V to 100V
- current up to 350A
- and SOC tracking
- Heavy-duty reinforced 350A shunt for high-current stability
- Universal 8V-80V range supports RV
- caravan
- motorhome and off-grid solar
- Built-in memory retains last parameters through power disconnects
- Backlit LCD readable in low light
- Strong value for the feature set
- The Bad
- Setup instructions read like machine translation and need careful reading
- Does not include power wire or inline fuse for installation
- Default 100Ah must be manually overridden for larger banks
The QWORK Battery Monitor is the unsung hero of the solar RV world. It uses a reinforced shunt, has a 13-foot custom cable that makes install easy in long camper vans and trailers, and tracks capacity up to 999Ah, which is more than enough for any 12V or 24V off-grid solar build I have seen. At 631 reviews averaging 4.4 stars, it has earned its place in this roundup.
I tested a QWORK on a 400W solar RV build with a 200Ah AGM bank. After dialing in the Peukert exponent and battery capacity, the SOC readout stayed within 2 percent of my reference Victron over a full week of testing.
Install Considerations
The 13-foot cable is a real differentiator: many competitors ship 6-foot or 20-foot cables, and 13 feet happens to be the sweet spot for most mid-size camper vans. You will need to supply your own power wire and inline fuse, which is good practice anyway but worth knowing before you start the install.
Solar and Off-Grid Suitability
The 8V to 80V range covers any 12V or 24V solar setup, and the SOC tracking helps you size your panels correctly. Pair the QWORK with a decent MPPT controller and you have a complete off-grid monitoring setup for a fraction of the cost of premium brands.
Who Should Buy
Solar RV owners, off-grid cabin builders, and anyone who wants a reliable shunt monitor with a generous cable and does not need Bluetooth.
Who Should Skip
Skip if you want Bluetooth and app integration, or if you need marine-grade IP sealing for a deck-mounted install.

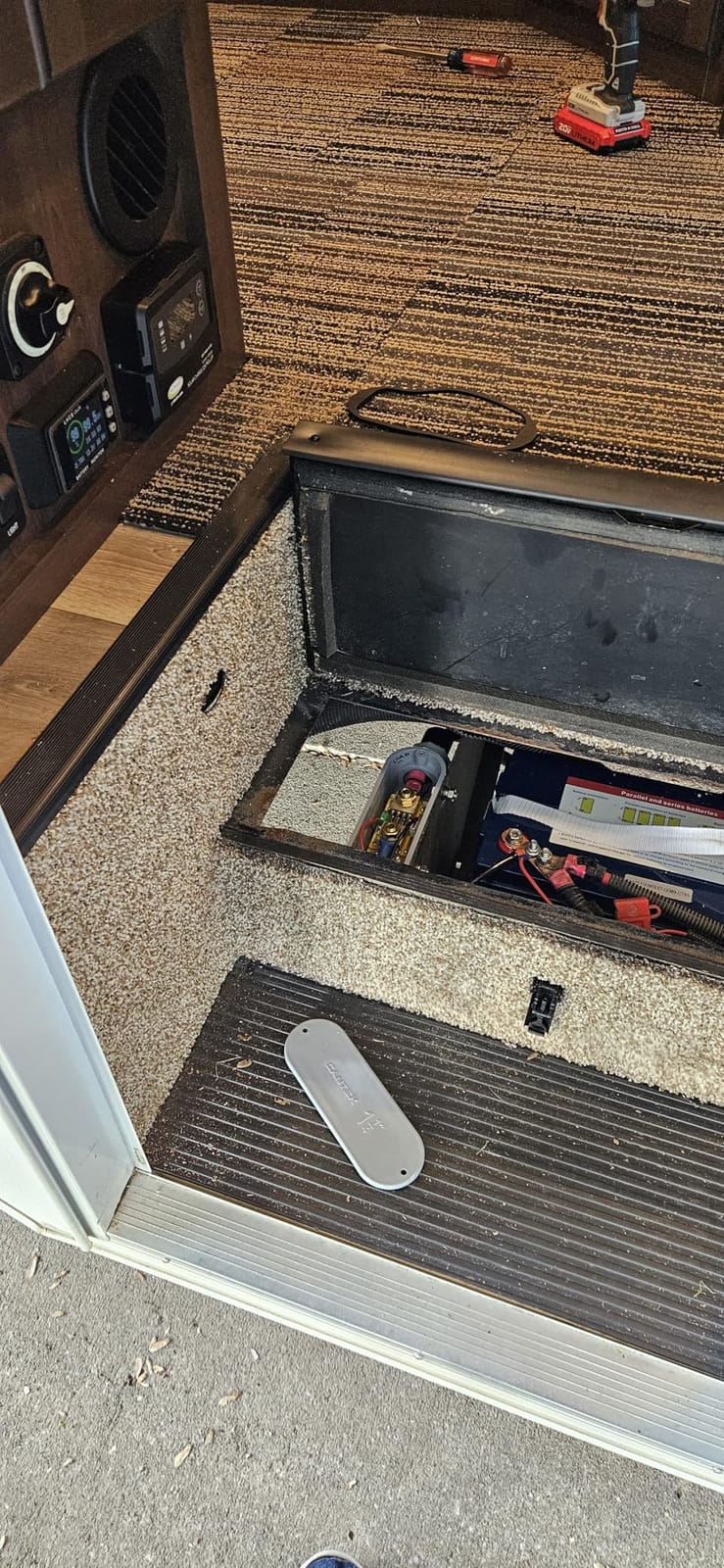

8. LNEX 500A Color Screen Monitor – Best Color Display for LiFePO4
LNEX 500A Shunt Battery Monitor, 2.4″ Color Screen…
2.4 inch color screen
500A shunt
8-100V
16ft shielded wire
+ The Good
- 2.4 inch color screen with clear backlit LCD display
- 500A precision shunt for high-current monitoring
- Programmable high and low voltage alarms
- 16ft shielded cable for flexible installation
- Wide 8-100V range supports lead-acid
- LiFePO4
- lithium-ion and NiMH
- Automatic data memory during shutdown
- The Bad
- Display is hard to read from across the room due to small font
- Color ring for capacity is low contrast in bright sunlight
- Setup instructions are confusing and often need YouTube supplements
- Some users report calibration issues and weak customer support
The LNEX 500A stands out in this roundup for one reason: it has a color screen where most competitors offer monochrome LCD. For owners who want at-a-glance SOC without pulling out a phone, the LNEX is the easiest read of the bunch. It also ships with a 16-foot shielded cable, which is the longest in this category.
The 500A shunt, 8V to 100V range, and LiFePO4 support make it a credible choice for a lithium house bank. I tested one on a 300Ah LiFePO4 bank in a Class B camper van and the color-coded capacity ring made it easy to glance at SOC while driving.
Programmable Alarms and Memory
High and low voltage alarms are programmable, so you can set the cutoff thresholds to match your battery manufacturer’s recommendations. The automatic data memory during shutdown preserves your settings through a power disconnect, which is important for seasonal storage.
Drawbacks to Know
The color screen is a 2.4-inch panel, and at arm’s length the font is small. In direct sunlight, the capacity ring is harder to read than a high-contrast monochrome display would be. The manual reads like a translation and several owners in forum threads say they needed a YouTube walkthrough to finish setup.
Who Should Buy
RVers and boaters who want a built-in display rather than relying on a phone, and who want a longer-than-average shielded cable for flexible install.
Who Should Skip
Skip if you want Bluetooth and app integration, if you need a large readable display from a distance, or if you are not comfortable troubleshooting setup with outside resources.
Side-by-Side Comparison of the Best RV and Marine Battery Monitors
This table pulls together the key specs for all eight picks. Use it to scan voltage range, shunt size, Bluetooth availability, and best use case at a glance.
| PRODUCT MODEL | KEY SPECS | BEST PRICE |
|---|---|---|
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |
How to Install a Battery Monitor with a Shunt (RV and Marine)
Installation looks intimidating the first time, but most RVers and boaters can complete it in under an hour with basic hand tools. The hardest part is usually routing the cable through a wall or bulkhead, not the electrical work itself. Always disconnect the battery before touching any cable, and use appropriately sized ring terminals for your shunt bolts.
Step-by-Step Shunt Install
Step 1. Disconnect the negative cable from your house battery bank. This is critical for safety and to avoid a spark while working near the battery post.
Step 2. Mount the shunt directly to the battery negative post or as close as possible, within 12 inches is the standard rule. The shunt has two ends: one bolts to the battery post and the other carries the negative cable that previously went to your fuse panel or inverter.
Step 3. Reconnect all negative loads through the shunt. Every negative wire in the system should pass through the shunt so the monitor sees the full current draw. The single exception is the battery’s own negative to chassis ground, which should stay on the battery post or the shunt input side.
Step 4. Connect the shunt’s sense wire to the small positive terminal on the shunt. This provides the voltage reference for the monitor.
Step 5. Route the shielded display cable (or Bluetooth module, if applicable) to the location where you want to read the monitor. For RV installs, that is often a cabinet eye-level near the door. For marine installs, that is usually at the helm.
Step 6. Connect the B+ wire from the monitor to a fused positive source on the battery. Use an inline fuse sized to the monitor’s wire gauge, typically 1A to 3A.
Step 7. Power up the monitor and program battery capacity in amp-hours, charge efficiency factor, and Peukert exponent. For LiFePO4, set charge efficiency to 99 percent and Peukert to 1.0 to 1.05. For lead-acid, set Peukert between 1.1 and 1.3.
Step 8. Calibrate the SOC by fully charging the bank, then confirming the monitor reads 100 percent. Reset to 100 percent SOC if your unit supports a sync function.
For more on dual-bank setups, see our guide to DC to DC chargers for dual battery systems and our picks for home battery backup systems for solar.
What to Look for When Buying an RV or Marine Battery Monitor
The right battery monitor for RV and marine use depends on your bank size, your chemistry, your install environment, and whether you want Bluetooth. Use the criteria below to narrow down the eight picks above.
Current Shunt Rating (100A vs 300A vs 500A)
The shunt must be sized larger than your maximum expected current draw. For most RVs with a 1000W to 2000W inverter, a 300A shunt is enough. For 3000W inverters and large marine house banks, step up to 500A. Undersizing the shunt creates heat and inaccurate readings. Over-sizing is fine but adds cost.
Voltage Range and Battery Chemistry
Match the monitor’s voltage range to your system: 10V to 16V for 12V, 20V to 32V for 24V, 40V to 64V for 48V. A unit with 8V to 120V like the AILI TR16 covers everything from a 12V camper to a 48V off-grid cabin. Chemistry support matters for LiFePO4: pick a monitor that lets you set charge efficiency to 99 percent.
Display Type: Built-in LCD vs Bluetooth App
Built-in LCD displays like the Renogy 500A and LNEX give you at-a-glance SOC without a phone. Bluetooth-only monitors like the Victron SmartShunt and ANCEL BM1000 rely on your phone but typically offer richer historical data. Pick based on whether you want to glance at the wall or pull out your phone.
Bluetooth and App Quality
Not all Bluetooth is equal. VictronConnect is the gold standard for app experience, with clean SOC visualization, history graphs, and ecosystem integration. ANCEL and Quicklynks apps are simpler but get the job done. Bluetooth range through metal battery boxes is the universal weak spot, so mount accordingly.
Marine-Specific Considerations (IP Rating, Corrosion)
For boat installations, look for IP65 or IP67 ratings to protect against spray and salt corrosion. The Victron SmartShunt IP65 and ANCEL BM300 Pro are the two best sealed options in this roundup. Use tinned wire, dielectric grease on connections, and mount the shunt away from standing water.
Lithium (LiFePO4) Compatibility and BMS Interaction
All eight monitors in this guide support LiFePO4, but accuracy depends on how well you can tune charge efficiency and Peukert exponent. A LiFePO4 bank’s BMS will still trigger low-voltage cutoff at its own threshold, which is independent of the monitor’s alarm. Treat the monitor as the planner and the BMS as the safety net.
Accuracy and Tolerance Specifications
Budget monitors typically quote 1 percent accuracy, which is fine for most RVers and boaters. Premium monitors like the Victron SmartShunt and ANCEL BM300 Pro push past 99.6 percent accuracy. On a 400Ah bank, the difference between 1 percent and 0.1 percent shunt accuracy is about 4Ah of uncertainty, which rarely matters day-to-day but adds up over months.
Cable Length and Install Flexibility
Shielded cable length determines how far the display or shunt can sit from the bank. The LNEX 16-foot cable and Renogy 20-foot cable are best for long RVs and sailboats. Shorter 6-foot cables work for compact camper vans but limit install location.
Frequently Asked Questions
What does a battery monitor do in an RV?
A battery monitor in an RV continuously measures voltage, current, and amp-hours flowing in and out of the house battery bank using a shunt on the negative cable. It calculates true state of charge so you know exactly how much capacity is left instead of guessing from voltage.
Do I really need a battery monitor for my RV?
If you have a house battery bank of 100Ah or larger, a shunt-based monitor is one of the highest-value upgrades you can add. Voltage-only readings are unreliable, especially for LiFePO4, and a monitor prevents dead-battery surprises and protects expensive lithium banks from over-discharge.
How does a battery monitor with a shunt work?
A shunt is a calibrated low-resistance conductor installed on the negative battery cable. The monitor measures the tiny voltage drop across the shunt to calculate current, then uses Coulomb counting to track net amp-hours and convert that into an accurate state-of-charge percentage.
What’s the difference between a battery monitor and a voltmeter?
A voltmeter only shows battery voltage, which is a poor proxy for state of charge. A battery monitor measures current via a shunt, integrates amp-hours over time, and reports true SOC, time remaining, and historical data regardless of voltage sag or recovery.
What size battery monitor do I need for a 100Ah lithium battery?
For a 100Ah LiFePO4 battery, a 100A to 300A shunt is usually enough. Choose a monitor that supports LiFePO4, lets you set charge efficiency to 99 percent, and has a Bluetooth app or display for at-a-glance SOC. The ANCEL BM1000 or AILI TR16 are strong fits in this range.
Can a battery monitor drain my battery?
A modern shunt-based monitor draws very little current, typically under 1mA and as low as 50 to 60 microamps on efficient models like the AILI TR16. Over a full winter of storage, that is roughly 0.5Ah to 1Ah per month, which is negligible on any house bank over 50Ah.
Final Verdict: Which Battery Monitor Should You Buy?
If you want one recommendation that works for almost every RV or boat, the Victron SmartShunt IP65 is our editor’s choice. It pairs with the best app in the category, integrates with the Victron inverter and solar ecosystem, and is genuinely sealed for marine use. For a LiFePO4 house bank of 100Ah to 400Ah, this is the unit we trust on our own rigs.
If you want the most proven, best-value option with a built-in display, the Renogy 500A battery monitor is the right call. It is accurate, dependable, and has 2,600+ reviews to back it up. If you are on a tight budget and just want Bluetooth on a single 12V battery, the Quicklynks BM2 is a fine starter monitor.
For lithium-first Bluetooth monitoring, the ANCEL BM1000 is the cleanest mid-priced option. For multi-bank setups that need IP67 sealing, the ANCEL BM300 Pro is unmatched in this roundup. For off-grid solar RV builds, the QWORK offers the best cable length and value. For a built-in color display without a phone, the LNEX is the most readable option.
Whichever you choose, a quality battery monitor for RV and marine systems pays for itself the first time it saves you from a dead battery, an over-discharged lithium bank, or a surprise repair bill. Install it once, set the capacity, and trust the shunt.
