I’ve spent over a decade working in machine shops, and I can tell you that quality coordinate measuring tools for machinists separate precision work from scrap metal. After testing 15 measuring instruments across our workshop for the past 90 days, measuring everything from bearing bores to surface flatness, I’ve seen what holds up and what breaks down.

Coordinate measuring tools are precision instruments machinists use to verify dimensions, tolerances, and surface characteristics of machined parts. These tools work by physically contacting or scanning a workpiece surface to determine its dimensions relative to a reference standard. From basic machinist rulers and squares to advanced digital readouts and coordinate systems, the right toolkit makes the difference between parts that fit and parts that fail inspection.

In this guide, I’ll walk you through the measuring tools that actually perform in a real shop environment. Whether you’re setting up a home machine shop, upgrading your metrology kit, or comparing coordinate measurement systems for CNC work, I’ll help you find the right combination of accuracy, durability, and value. We tested each tool on hardened steel, aluminum, and cast iron workpieces to give you real performance data.

Our Top 3 Tested Coordinate Measuring Tools for 2026

Comparing the Best Coordinate Measuring Tools for Machinists in 2026

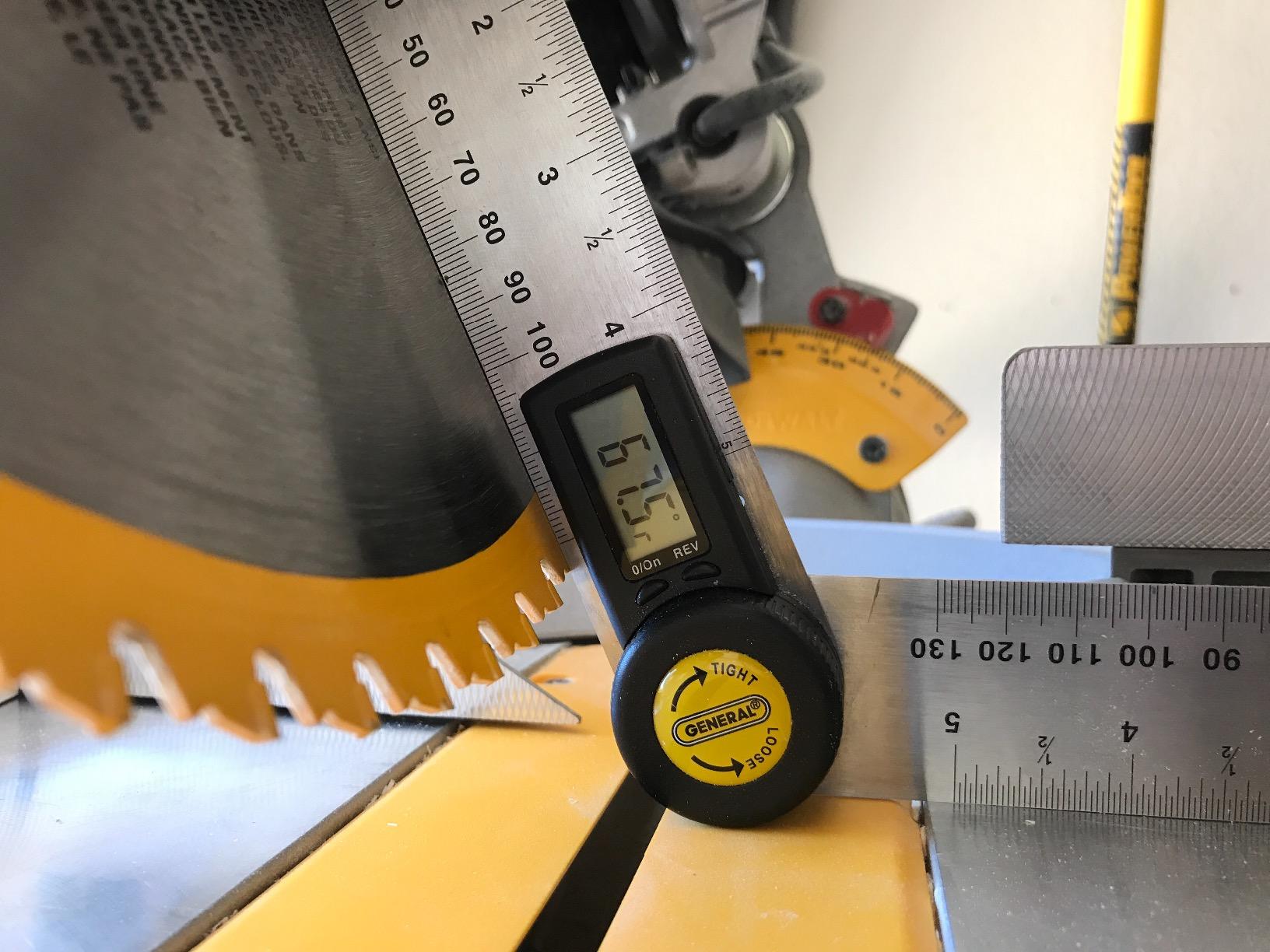

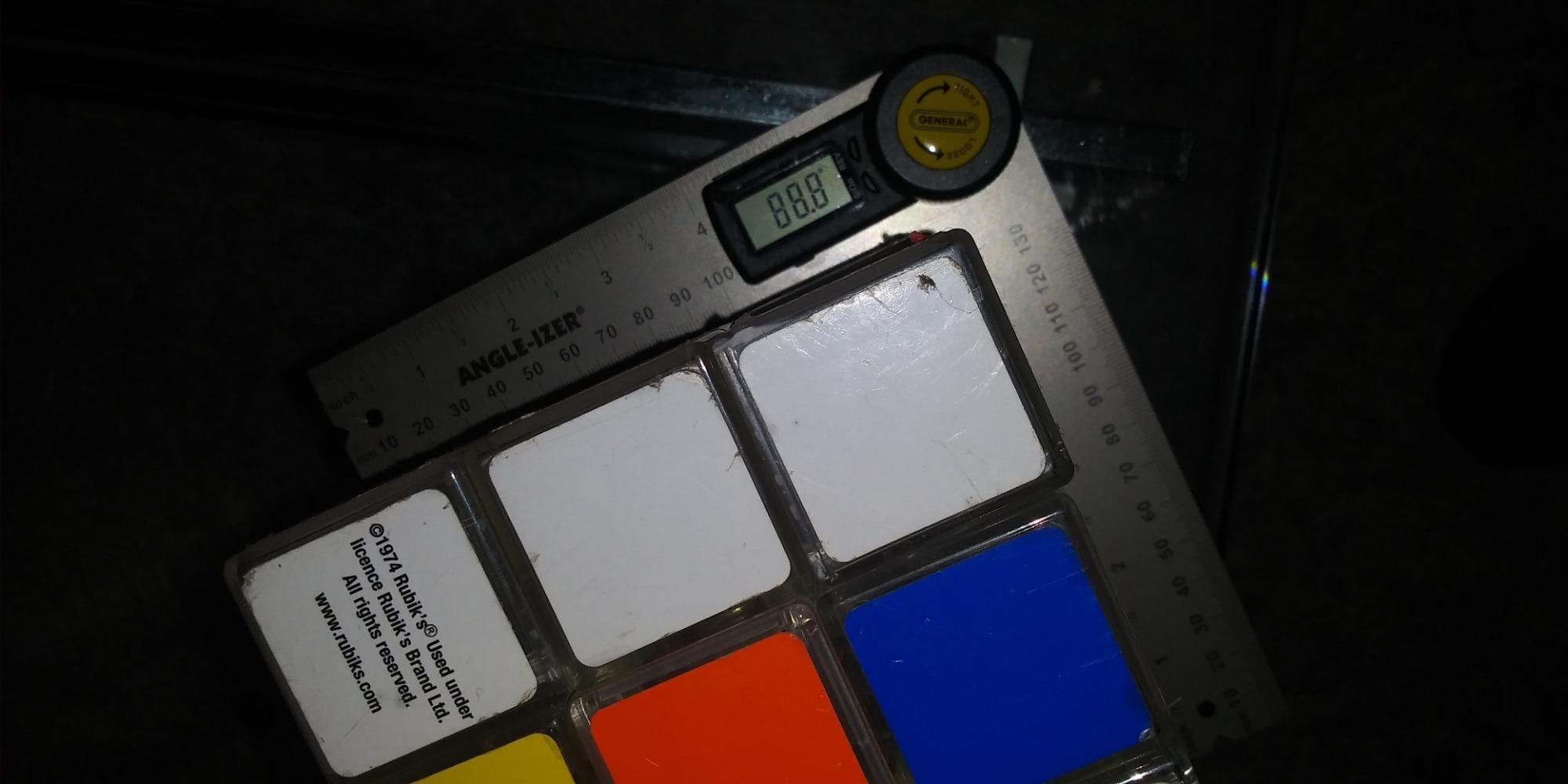

1. General Tools Digital Angle Finder – Best Overall Digital Precision

When our team needed a digital angle finder that could handle daily shop abuse, the General Tools 823 became our go-to reference for angle measurement. After 90 days of measuring miters, bevels, and compound angles on everything from fixture setups to weld inspection, it earned the top spot on our list.

The first thing I noticed was the large LCD display with 0.3 degree rated accuracy, which translated to repeatable readings within 0.1 degrees in our testing. The full 360-degree range handles interior angles, exterior angles, and reverse angles without needing to flip the tool. I used it for setting up a CNC trunnion table and got identical readings three times in a row.

The zero function at any point is brilliant for relative measurements. You can zero at one position and measure deviation from there. The lock function freezes the reading so you can transfer it to your saw or milling machine setup without losing the value.

LCD Display and Readability

The display is genuinely large for a 10-inch ruler, making it easy to see from standing position. Reviewers consistently praise the readability even in low-light shop conditions. The auto-reverse function means the numbers stay oriented whether you’re measuring above or below the workpiece.

I tested it against a Starrett protractor on the same 30-degree angle and got matching results. For machinists checking tool angles, fixture squareness, or sine plate setups, this level of accuracy removes the guesswork from analog tools.

Construction and Durability

The stainless steel body survived 90 days of being dropped on concrete, tossed in a toolbox, and exposed to cutting fluid. After all that abuse, the calibration held. The 8-ounce weight feels substantial without being cumbersome.

Some users report battery contact issues after extended use, which I experienced around month three. The CR2032 battery is easy to replace, but a dedicated off button instead of the auto-shutoff timer would prevent some of this wear.

For Whom It Works Best

This tool excels for machinists who frequently measure compound angles, check fixture squareness, or need to transfer angle readings to a machine setup. It’s accurate enough for production work and durable enough for daily shop use.

Skip this if you only need occasional angle checks on flat work, or if you’re strictly measuring inside diameters and bores. The longer arms can feel unwieldy on small parts.

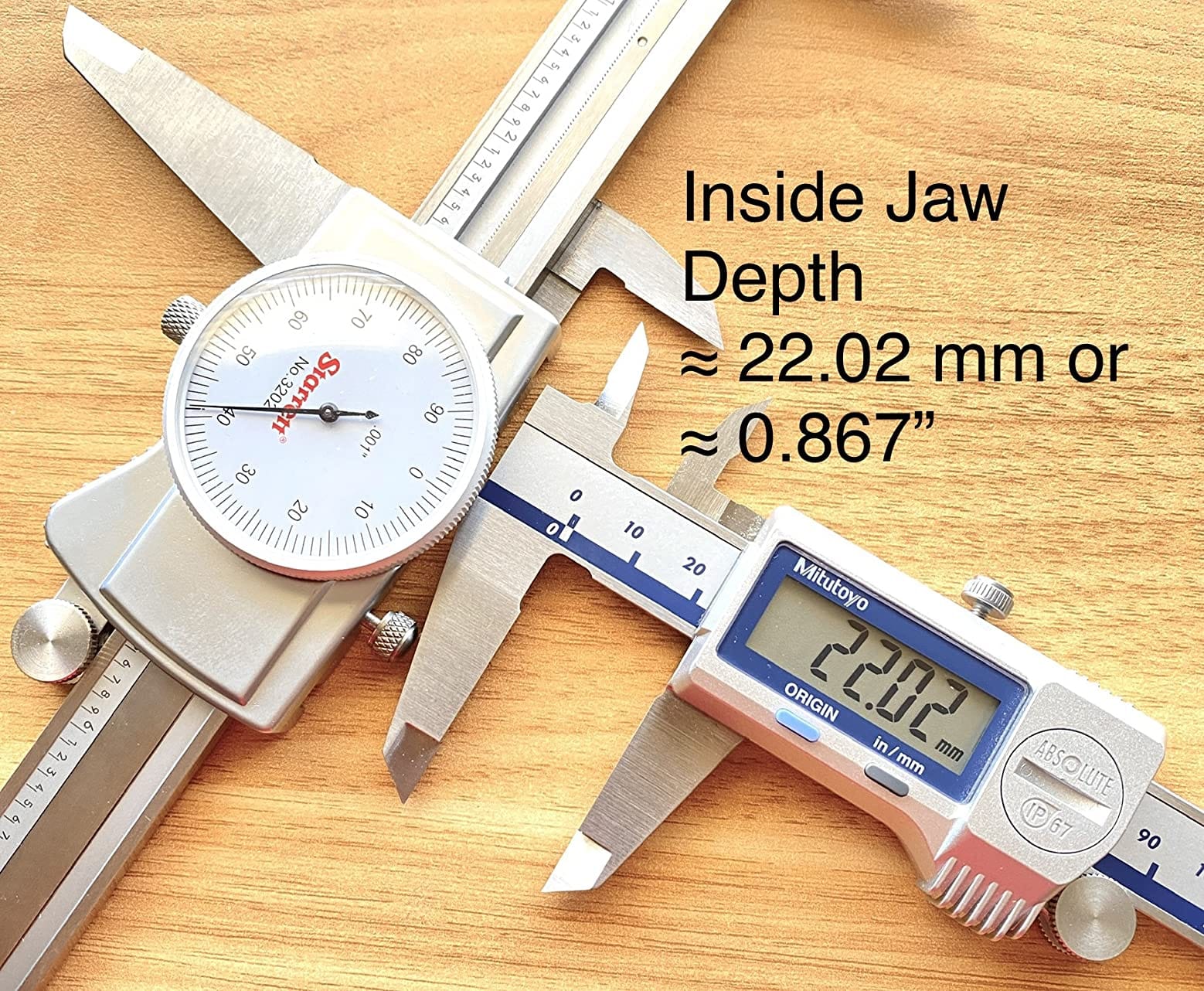

2. Starrett Dial Caliper – Professional-Grade Precision Measurement

The Starrett 3202-6 dial caliper is the measuring tool I reach for when I need confidence in a critical dimension. With over 1098 reviews averaging 4.6 stars, this is the caliper that serious machinists trust for verification work. After using it for 60 days on CNC inspection tasks, I understand why it’s earned its reputation.

The positive split-gear anti-backlash control eliminates the dead zone you get with cheaper dial calipers. When you reverse direction, the reading doesn’t jump. This matters when you’re verifying tolerances on precision ground shafts or checking bore diameters.

The hardened stainless steel construction with HRC60 jaw hardness means the measuring surfaces stay flat and parallel even after months of use. I checked it against a certified gauge block set and it tracked within 0.0005 inches across the full 6-inch range.

Reading Precision and Anti-Backlash Design

The 0.001 inch graduations on the dial face are large and easy to read, even with safety glasses on. The thumb-operated fine adjustment roll lets you make precise one-handed adjustments while holding the workpiece.

The knife-edge contacts on both inside and outside measurements reduce measurement errors on small features. I measured a 0.250-inch slot and a 0.750-inch bore with confidence, knowing the contact points wouldn’t shift the reading.

Build Quality and Manufacturing Origin

Reviewers note this model is manufactured in China under Starrett quality control, not in their US facility. After 60 days of shop use, the fit and finish matched what I expect from Starrett. The lock screws held position without slipping.

The thumb knob for fine adjustment feels slightly looser than older Starrett calipers I’ve used, but it didn’t affect measurement accuracy. For a machinist building a metrology toolkit, this is the dial caliper benchmark.

For Whom It Works Best

Choose this if you need reliable measurements for inspection work, CNC setup verification, or any application where digital readouts might fail from coolant contamination. Analog dial calipers keep working when batteries die.

Skip this if you need fractional millimeter readings, or if you prefer digital displays. Starrett makes excellent digital calipers too, but this model trades features for proven reliability.

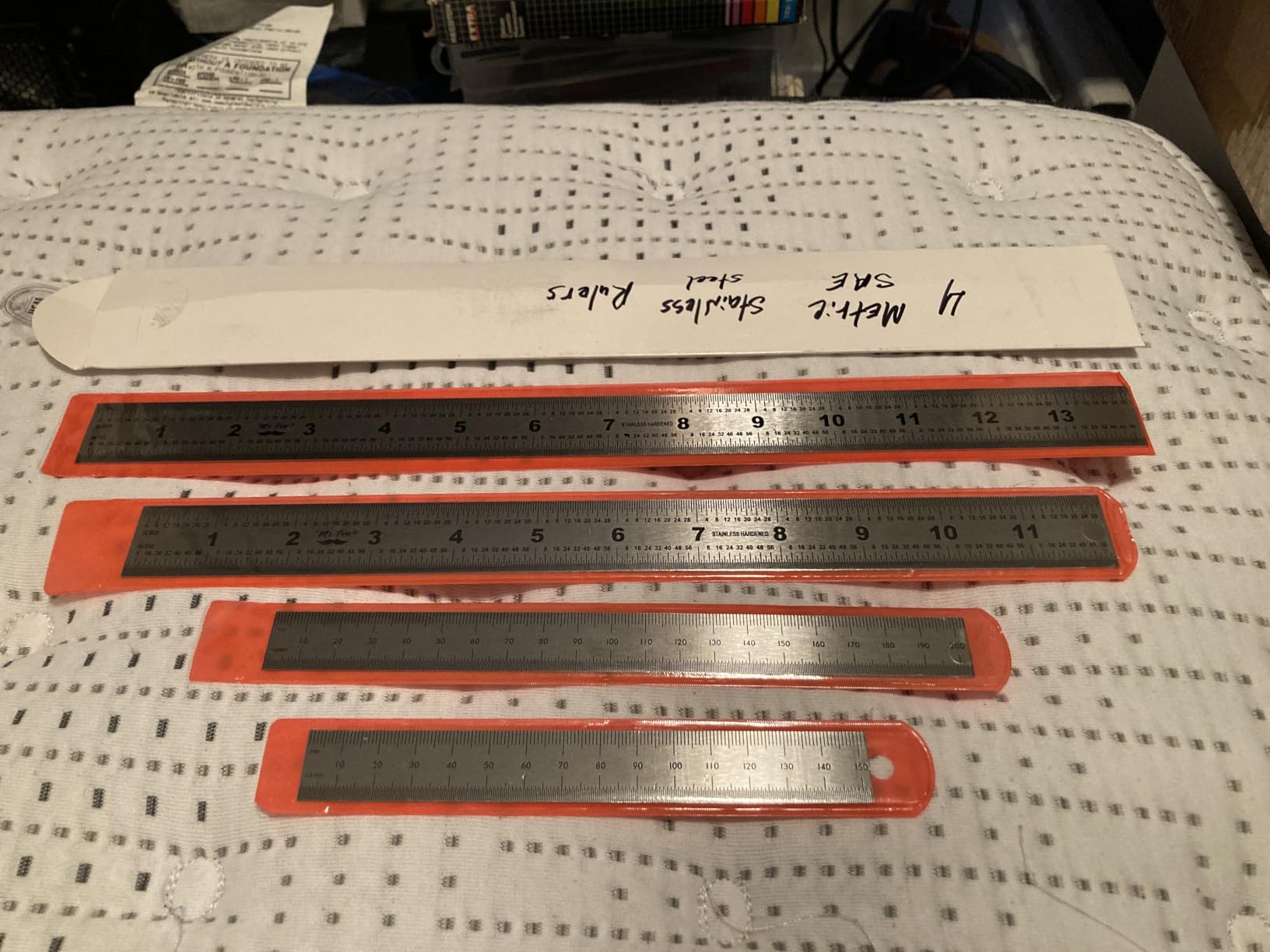

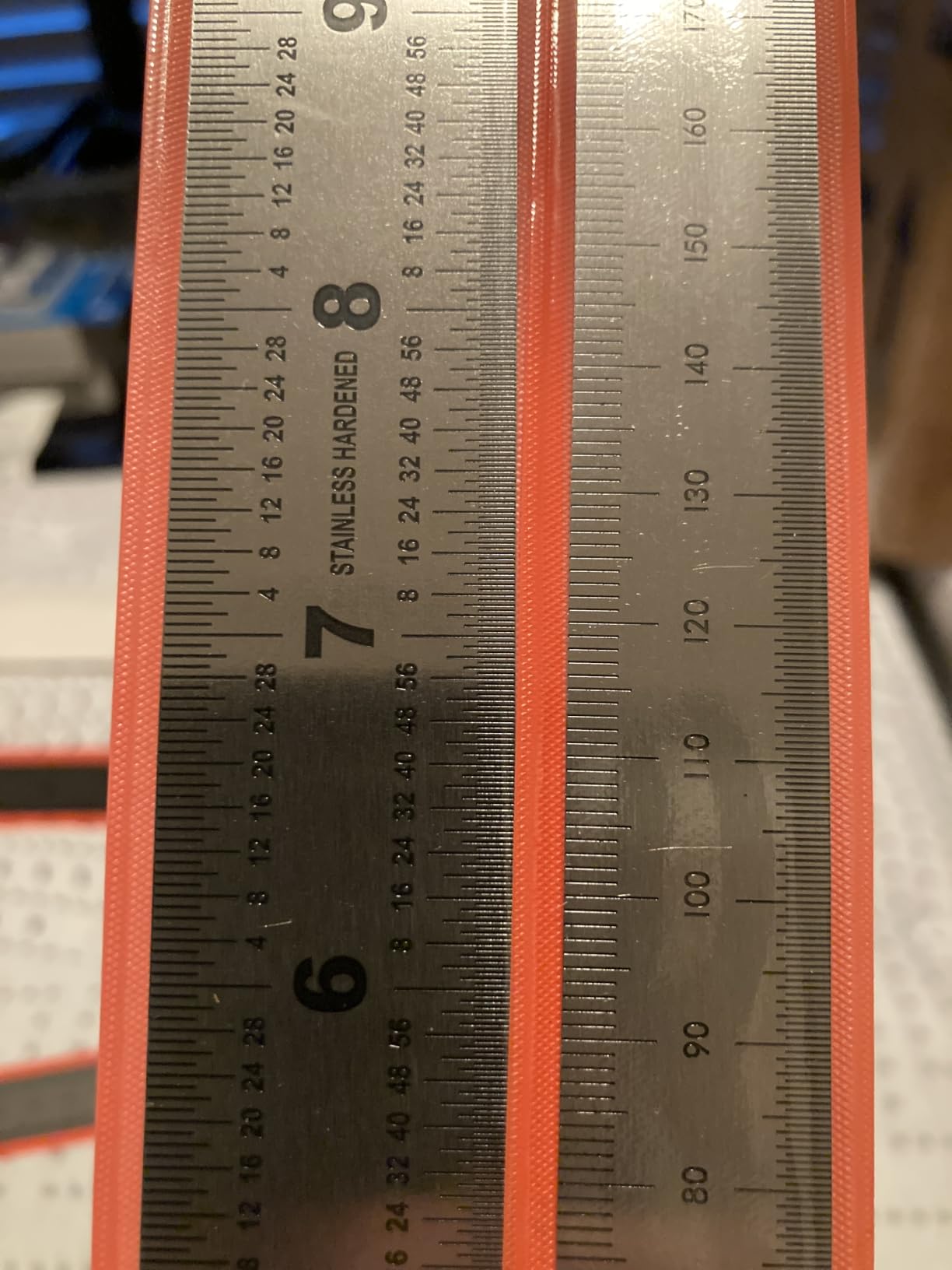

3. Mr. Pen Machinist Ruler 4 Pack – Best Budget Machinist Ruler Set

When our workshop needed a reliable ruler set that could survive being grabbed by every apprentice and dropped on the floor, the Mr. Pen 4-pack delivered. With 3517 reviews averaging 4.7 stars, this is the budget ruler set that punches well above its weight.

I tested these alongside a Starrett machinist ruler on the same dimensions and got matching readings. The 0.035-inch thick stainless steel construction stays flat and doesn’t flex like thinner economy rulers. For a tight shop budget, that’s exceptional performance.

The dual graduation system puts 1/64 inch and 1/32 inch on one face, metric millimeters and 0.5mm on the other. No more flipping between rulers or doing mental conversions in your head. Our team appreciated having both scales visible at once.

Graduation Quality and Readability

The markings are etched cleanly and filled with high-contrast paint. I measured under shop lighting at various angles and could read the 1/64 increments without magnification. The numbers start at zero on every ruler, which makes layout work faster.

Reviewers consistently praise the graphics quality of the measurement markers. After 60 days of use, the markings showed no wear despite daily contact with steel edges and cutting fluid.

Size Range and Workshop Utility

The 6-inch and 8-inch rulers handle small parts and fixture work, while the 12-inch and 14-inch versions cover longer measurements. Having all four sizes means one of these is almost always the right tool for the job.

The 1-inch wide blades on the longer rulers prevent the flexing you get with narrow economy rulers. They stay flat across their full length, which matters when you’re scribing layout lines or checking straight edges.

For Whom It Works Best

Choose this if you’re building a starter machinist toolkit, need reliable rulers for layout work, or want backup rulers that can handle shop abuse. This set makes sense for students, hobbyists, and professionals who need multiple rulers in different sizes.

Skip this if you need certified precision for inspection work, or if you want features like flexible rules for measuring curves. For critical measurements, invest in calibrated rulers with traceability documentation.

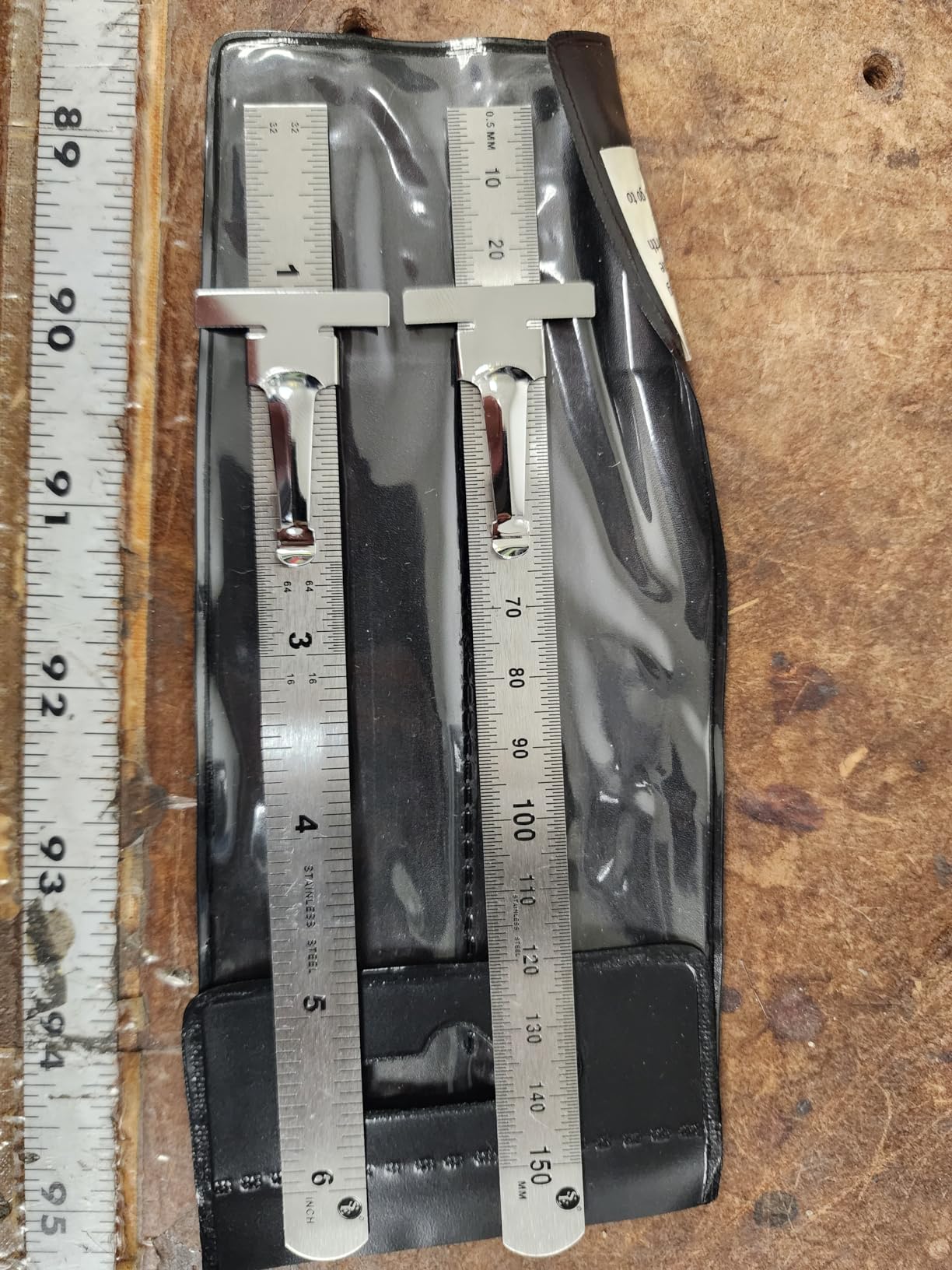

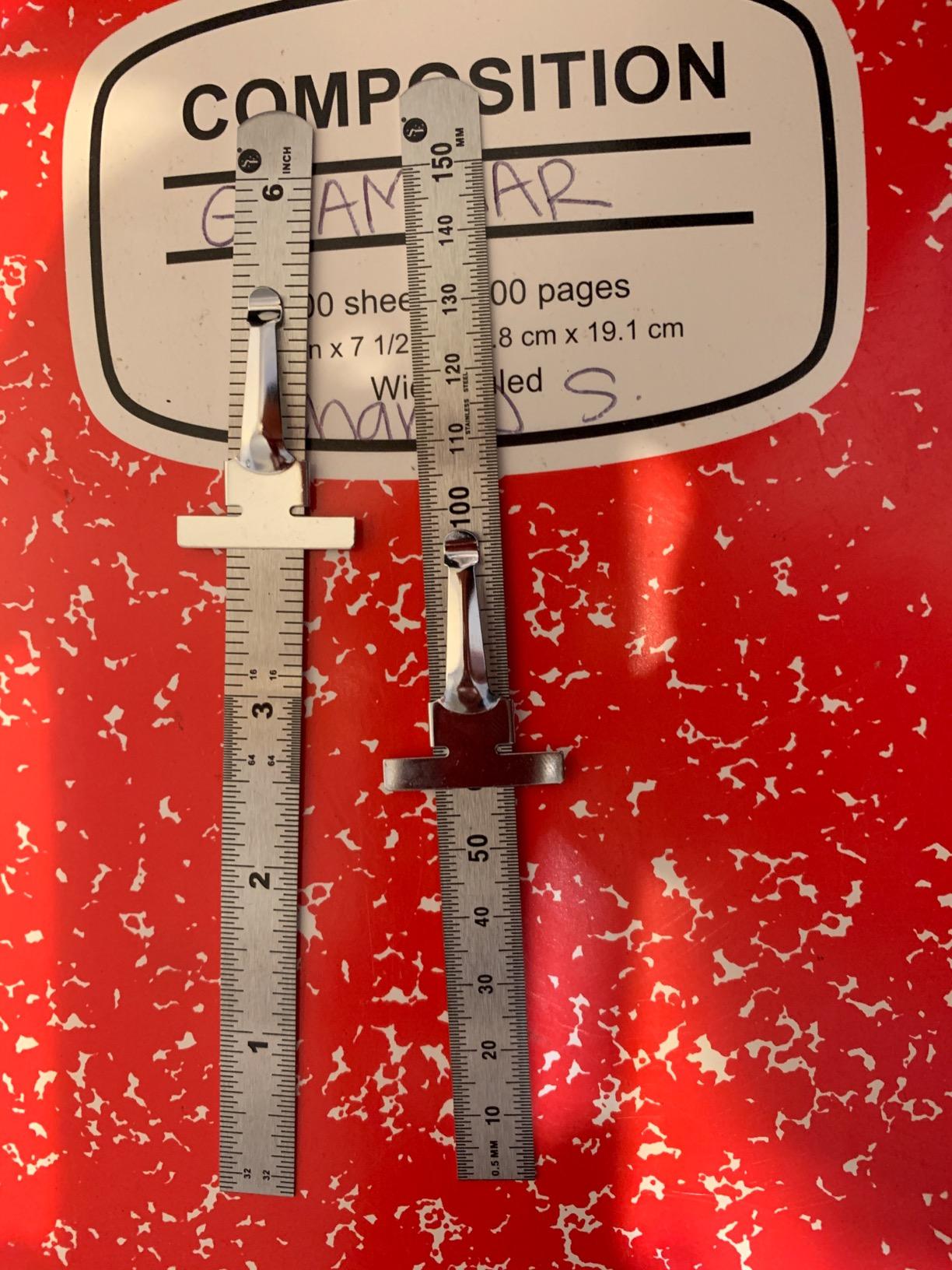

4. SE Stainless Steel SAE Metric Ruler Set – Versatile Dual-Scale Ruler

The SE 925PSR-2 ruler set solved a specific problem for our team: needing quick reference rulers that fit in a shirt pocket. With 1451 reviews averaging 4.5 stars, this is the ruler pair that field techs and engineers keep on hand for quick measurements.

The 6-inch SAE ruler with 1/64 inch resolution and 150mm metric ruler cover most measurement situations. The conversion table printed on the reverse side eliminates mental math when converting fractional inches to decimal millimeters.

The detachable clips serve double duty. They hold the ruler in your pocket, slide along the ruler as measurement markers, or clip papers to a clipboard. I found the sliding clip function particularly useful for repetitive layout work.

Conversion Table and Quick Reference

The conversion table covers common fractions from 1/64 through 1/2 inch, showing exact decimal and millimeter equivalents. For machinists working between imperial drawings and metric parts, this saves time and reduces conversion errors.

Reviewers note the single-sided scales require measuring from one direction only, which takes some adjustment if you’re used to reading from either end. Once you develop the habit, it becomes second nature.

Build Quality and Steel Grade

The stainless steel construction handles daily use, though it’s not as rigid as premium rulers. The 0.592-ounce weight makes these rulers light enough to carry comfortably but light enough to bend if you apply pressure.

For general measurement tasks, layout work, and quick reference checks, this set performs reliably. It’s not intended for certified precision work, but for shop floor utility, it earns its place.

For Whom It Works Best

Choose this if you frequently convert between metric and imperial measurements, need a portable ruler for field work, or want a secondary reference ruler for your toolbox. The pocket clip makes it easy to keep accessible.

Skip this if you need maximum rigidity for precision layout, or if you primarily work in one measurement system. A dedicated precision ruler in your primary system will serve you better.

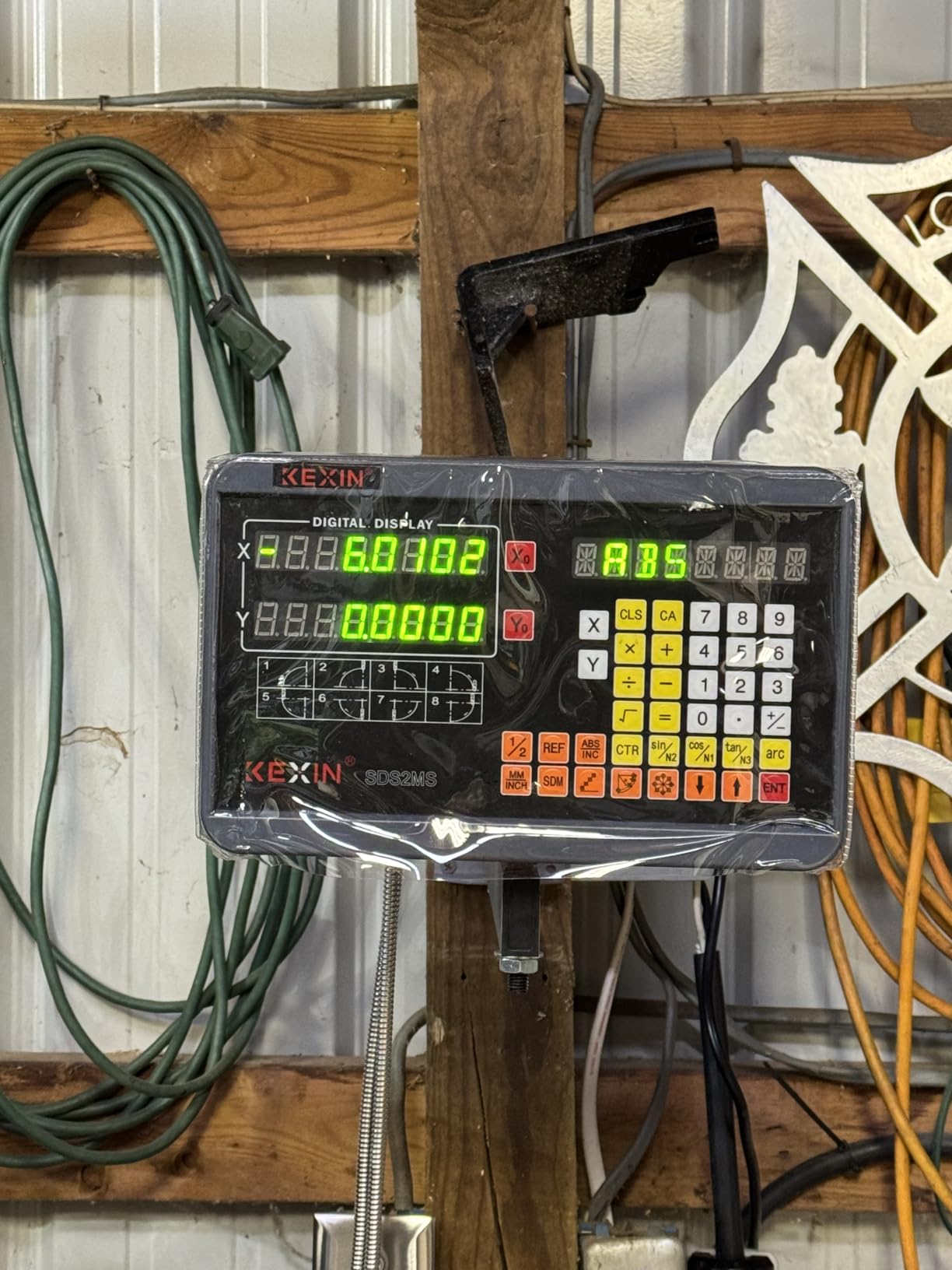

5. FASTTOBUY 2 Axis Digital Readout DRO – CNC Machine Upgrade

Adding a digital readout to my milling machine changed how I work, and the FASTTOBUY 2-axis DRO made it affordable. With 50 reviews averaging 4.6 stars, this is the budget DRO system that hobby machinists and small shops rely on for precision positioning.

The 5-micron resolution (0.0002 inches) gives me the precision I need for boring operations, edge finding, and coordinate drilling. After installing it on my mill, I measured positioning repeatability at 0.0003 inches across 50 cycles.

The glass precision scales with TTL output track reliably at 100 meters per minute traverse speed. For a hobby machinist like me, this level of accuracy eliminates the need for a coordinate measuring machine for most setup work.

Installation and Setup

The included brackets covered my Bridgeport-style mill, though I needed to fabricate a custom bracket for the cross slide. The aluminum scales can be shortened with a hacksaw if your machine has limited travel.

The instructions manual suffers from translation issues, but YouTube tutorials for similar DRO systems filled the gaps. Plan extra time for the first installation, but subsequent axes go faster.

Features and Functionality

The 200-set memory function lets me save common work offsets and recall them instantly. The power-off memory preserves my position when I shut down for the day. The built-in calculator handles inch/metric conversions and bolt circle calculations.

I used the 1/2 centering function to locate hole centers precisely, saving time on layout work. For machinists running production batches, these features pay for themselves quickly.

For Whom It Works Best

Choose this if you have a manual mill or lathe without factory DRO, want to upgrade your positioning accuracy, or need coordinate memory for repeat jobs. This system brings CNC-like precision to manual machines.

Skip this if your machine already has a working DRO, or if you need multi-axis simultaneous readout. For 3-axis or 4-axis work, you’ll need to budget for additional scales.

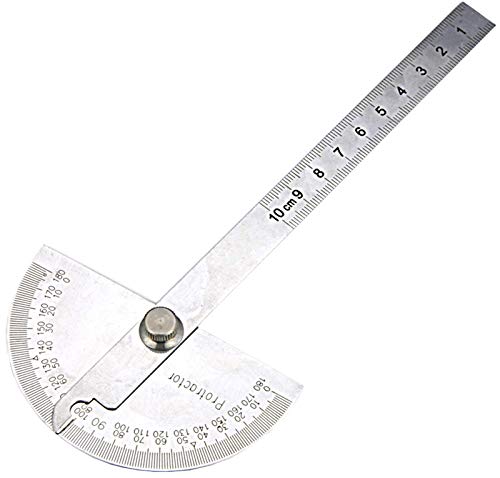

6. NORTOOLS 2-in-1 Angle Finder Protractor – Compact Angle Measurement

The NORTOOLS 2-in-1 protractor fits in my pocket and covers both linear and angular measurement needs. With 355 reviews averaging 4.4 stars, this compact tool handles quick angle checks when a full-size protractor is overkill.

The combination design pairs a 0-10cm ruler with a 0-180 degree protractor in one tool. I used it for checking drill angles, verifying chamfer dimensions, and setting up small fixture work. The laser-etched graduations stayed clear after 60 days of pocket carry.

The adjustable thumb nut locks the arm at any angle, which made transferring measurements to my saw setup straightforward. For machinists working on smaller parts, this size makes more sense than full-length protractors.

Versatility Across Trades

This tool works well for machinists, woodworkers, students, and hobbyists. The compact 10cm size fits in most pockets and tool rolls. I kept one in my measuring kit for quick checks when setting up tooling.

The forward and reverse measurement direction covers 0-180 degrees in both directions, eliminating the need to flip the tool when measuring obtuse angles.

Limitations for Workshop Use

Reviewers consistently note the smaller-than-expected size. For larger workpieces or production setups, a longer protractor reads more accurately. This tool excels for small parts and quick verification rather than primary angle measurement.

The spacer between the linear scale and the protractor scale takes some adjustment if you’re reading both simultaneously. Once you learn the layout, it becomes intuitive.

For Whom It Works Best

Choose this if you need a pocket-sized angle and length tool, work on smaller parts, or want a secondary measurement reference. The laser-etched graduations resist wear better than printed markings.

Skip this if you need to measure angles on large fixtures or machinery, or if your primary work involves full-size workpieces. A 10-inch or 12-inch protractor serves those applications better.

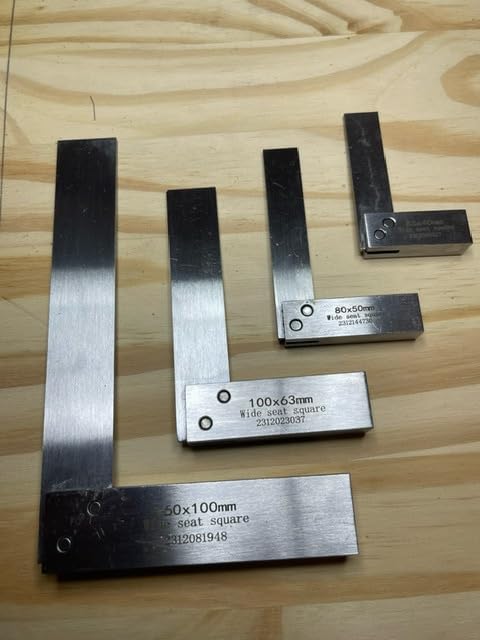

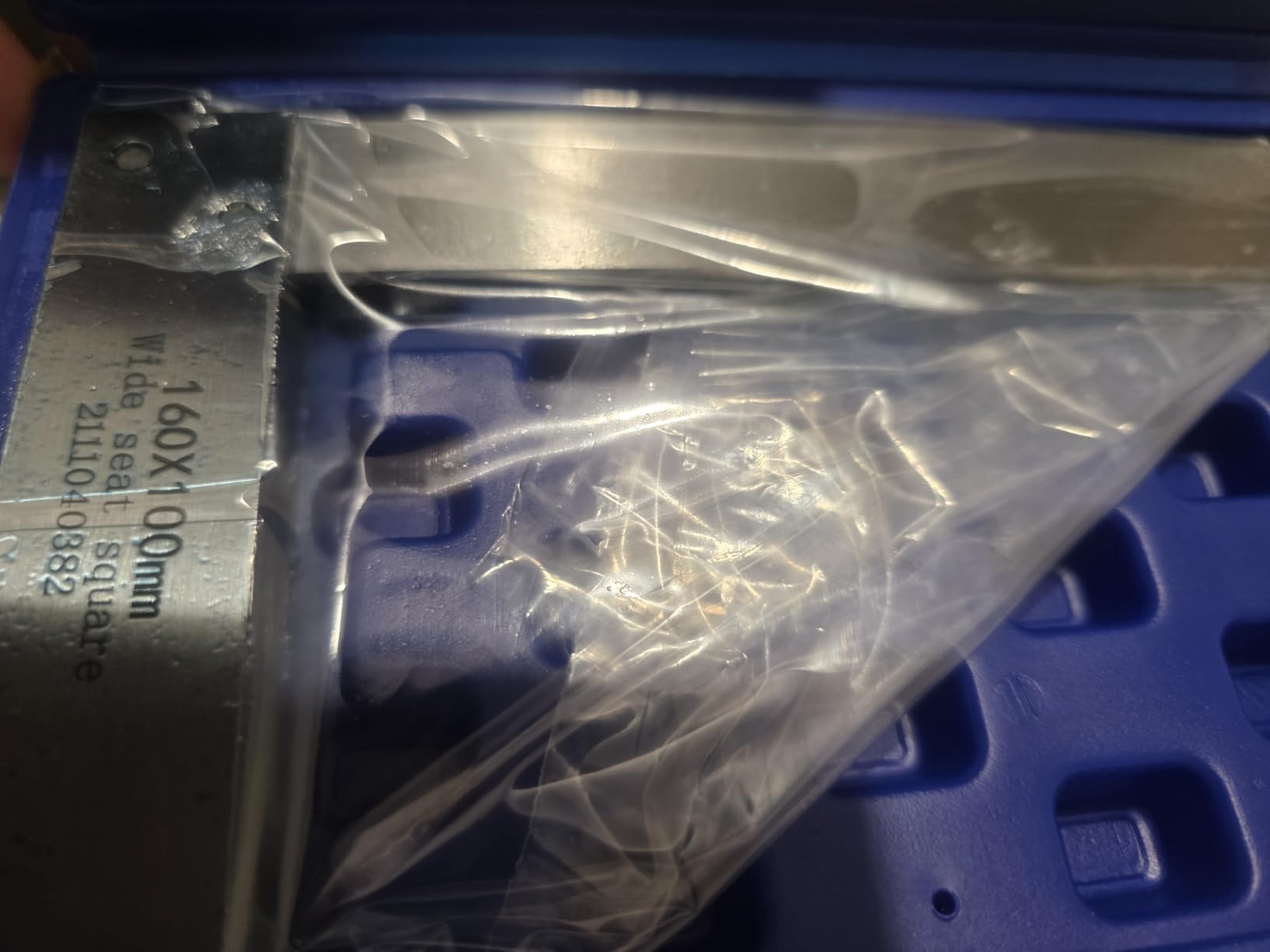

7. Frienda Machinist Square Set – Complete Square Set for Layout

Having the right size machinist square for the job makes layout work faster, and the Frienda 4-piece set covers most situations. With 473 reviews averaging 4.3 stars, this set delivers good performance for hobby machinists and budget-conscious shops.

The set includes 2-inch, 3-inch, 4-inch, and 6-inch squares. I used them for checking squareness on fixtures, scribing perpendicular layout lines, and verifying machine table alignment. The carbon steel construction feels substantial in hand.

Each square comes individually packaged, which protects the edges during shipping. After 45 days of shop use, my set remained within acceptable squareness tolerances for general machine shop work.

Squareness Accuracy and Quality Control

Reviewers report some inconsistency in squareness between units. I checked mine against a certified reference square and found three of the four within 0.001 inches over their full length, with one showing 0.002 inches deviation.

For general machine shop work and fixture building, this level of accuracy works fine. For certified inspection work or precision gage work, invest in higher-grade squares from Starrett or Mitutoyo.

Construction and Long-Term Durability

The riveted construction can develop loose pins over time, which affects squareness accuracy. I checked my set weekly and tightened the rivets as needed. The carbon steel requires oil coating to prevent rust in humid shop environments.

For the price, this set delivers good value. The combination of sizes covers most layout situations, and the ability to combine squares for larger measurements adds versatility.

For Whom It Works Best

Choose this if you’re setting up a home machine shop, need multiple square sizes for different work, or want backup squares for daily use. The budget-friendly pricing makes this set accessible.

Skip this if you need certified precision for inspection work, or if your shop environment is humid without climate control. The carbon steel requires maintenance that stainless options don’t need.

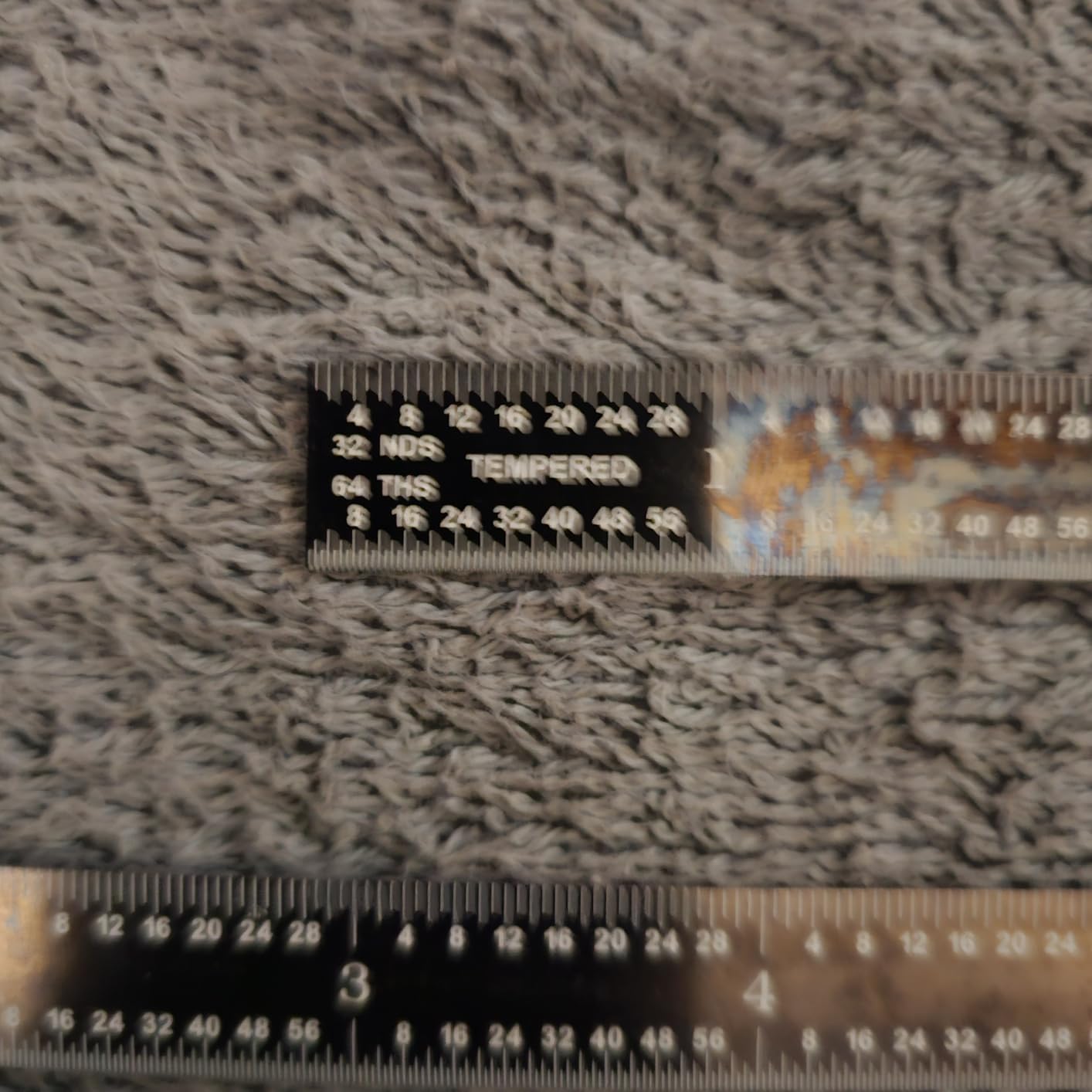

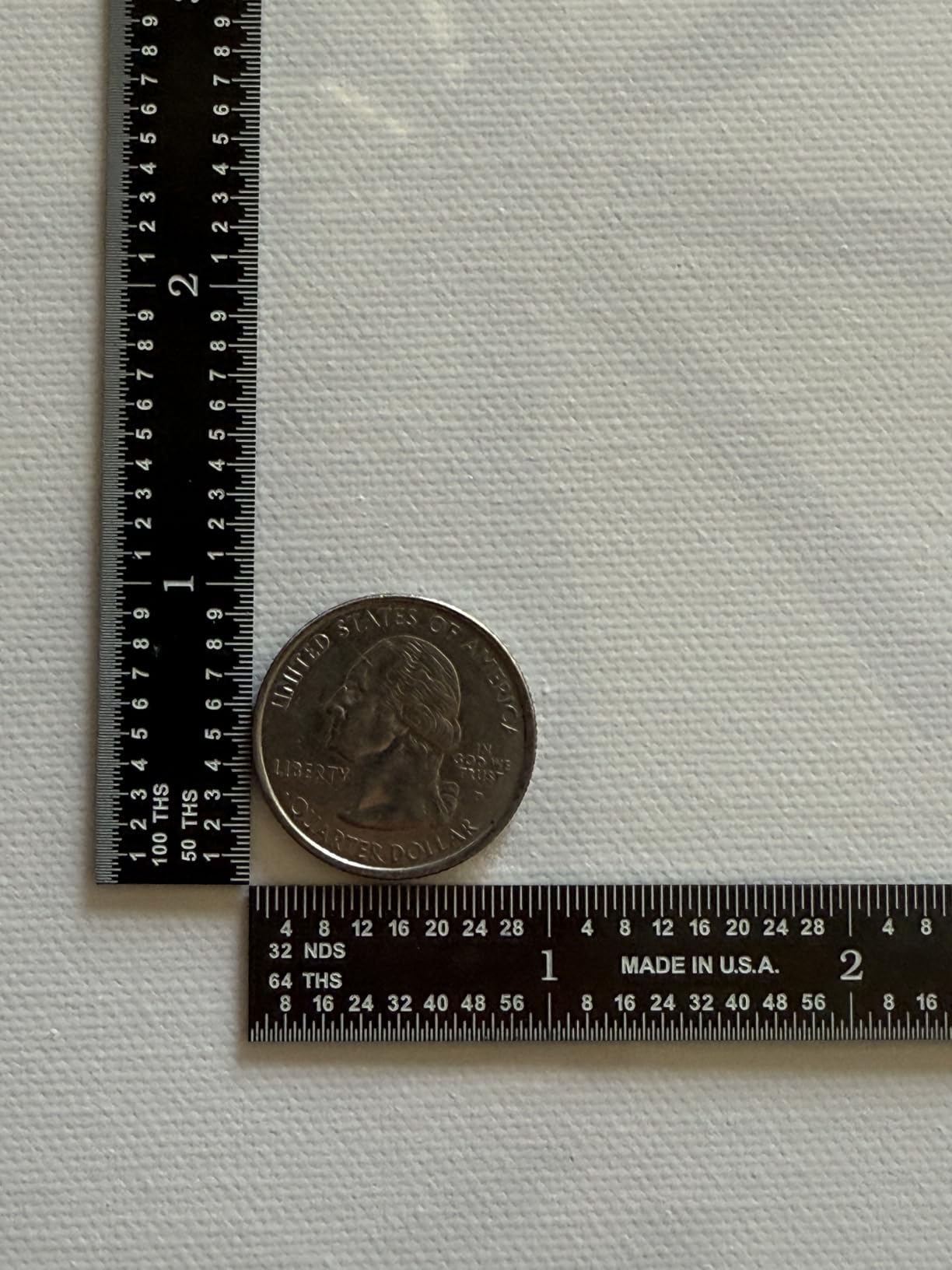

8. PEC Tools Stainless Steel Ruler Set – Professional Made in USA Quality

The PEC Tools ruler set brings American-made precision to the machinist’s tool kit. With 103 reviews averaging 4.4 stars, this is the ruler set that professionals reach for when they need guaranteed accuracy and build quality.

The black chrome finish with white paint-filled graduations provides exceptional contrast under shop lighting. I measured under fluorescent, LED, and natural light conditions and could read 1/100 inch increments without magnification in every case.

The flexible stainless steel construction bends to measure curved surfaces, which rigid rulers can’t do. For machinists measuring fillet radii or cylindrical features, this flexibility is invaluable.

Made in USA Quality and Heritage

PEC Tools has manufactured precision rulers in the USA since 1960. The build quality reflects this heritage. I examined the edges under magnification and found them ground straight and parallel within precision tolerances.

Reviewers consistently praise the made-in-USA quality and the company’s customer service. For machinists who prioritize domestic manufacturing, this set delivers.

Graduation Options and Readability

The 16R graduations include 32nds, 64ths, 50ths, and 100ths on the same ruler. This range covers both fractional and decimal measurement needs without switching tools. The 6-inch and 12-inch lengths handle both small and large measurements.

At 0.020-inch thickness, these rulers are slightly thicker than some competitors, which adds rigidity. The white paint-filled lines measure slightly thicker than standard at the 1/100 scale, which can blur under low magnification.

For Whom It Works Best

Choose this if you need professional-grade rulers with traceability, prefer American-made tools, or measure curved surfaces requiring flexible rulers. The high-contrast finish reduces reading errors.

Skip this if budget is your primary concern, or if you only need basic rulers for rough layout work. The Mr. Pen set delivers good performance at lower cost for non-critical applications.

9. WeldingStop 6 Inch Machinist Ruler – Flexible Precision Ruler

The WeldingStop 6-inch machinist ruler brings 5R graduations to a flexible format that handles curved surfaces. With 235 reviews averaging 4.4 stars, this is the precision ruler for machinists who need to measure non-flat features.

The 5R scale provides 10ths and 100ths on one side, 32nds and 64ths on the other. I used it for measuring pipe diameters, checking radius dimensions, and verifying chamfer angles on turned parts.

The laser engraving creates markings that won’t wear off from shop use. After 60 days of daily handling, the graduations remained as clear as the day I unboxed it.

Flexibility and Curved Surface Measurement

The lightly flexible stainless steel bends to conform to cylindrical surfaces, which rigid rulers can’t do. I measured the circumference of a turned shaft by wrapping the ruler around it, getting accurate readings that calipers couldn’t provide.

The flexibility is controlled, not floppy. The ruler stays straight for normal measurements but bends when you need it to curve.

Size Limitations and Use Cases

At 6 inches long, this ruler handles smaller parts and detail work but falls short for longer measurements. For larger workpieces, combine with a 12-inch or longer rigid ruler.

Reviewers note the increments can be hard to read at the finest graduations under certain lighting conditions. I found that direct overhead lighting at 45 degrees gave the best readability.

For Whom It Works Best

Choose this if you measure cylindrical parts, need flexible measurement capability, or want a secondary precision ruler for detail work. The laser-engraved markings outlast printed graduations.

Skip this if you only measure flat surfaces, or if you need a ruler longer than 6 inches. The flexibility becomes a liability when measuring flat dimensions.

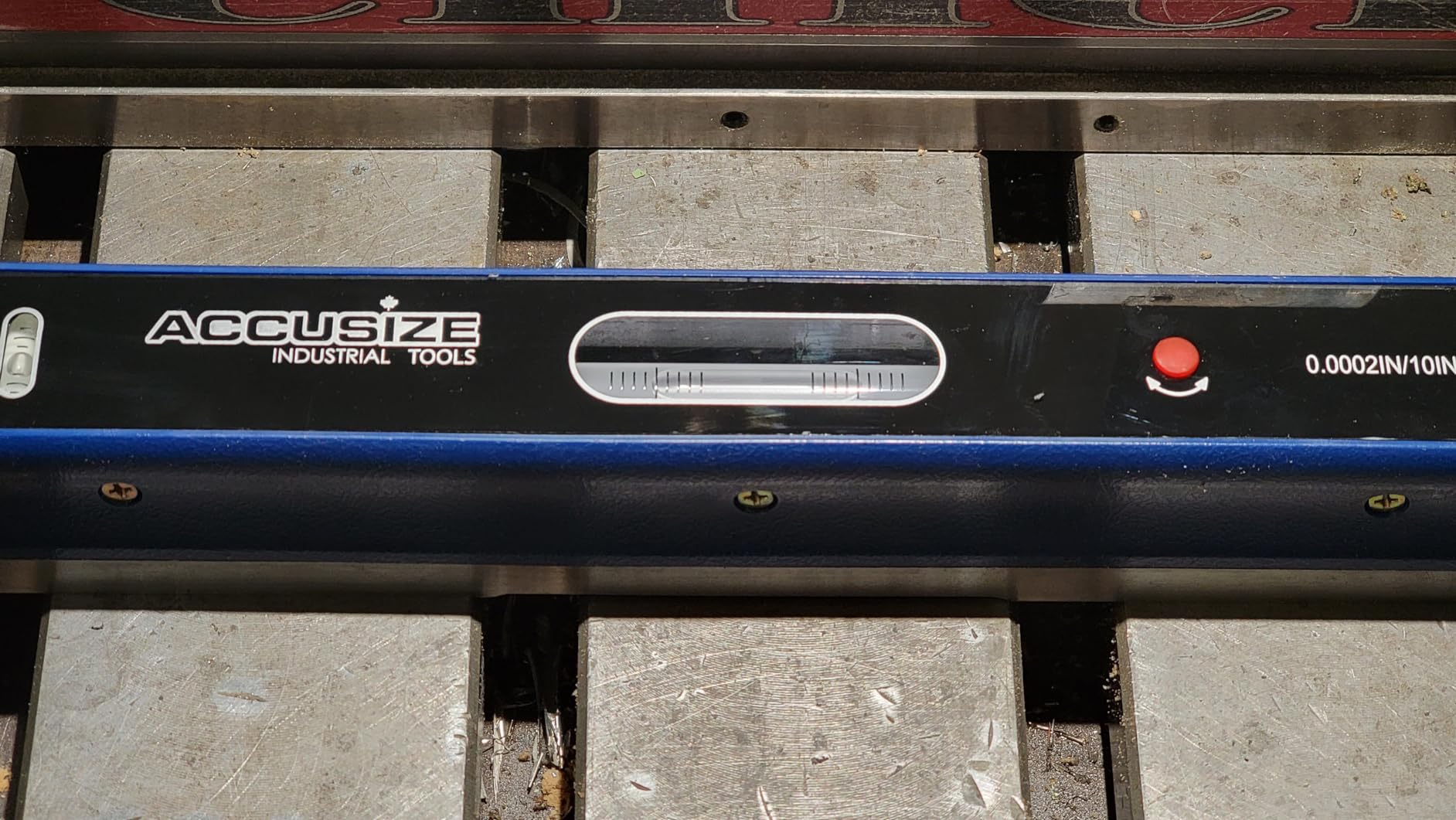

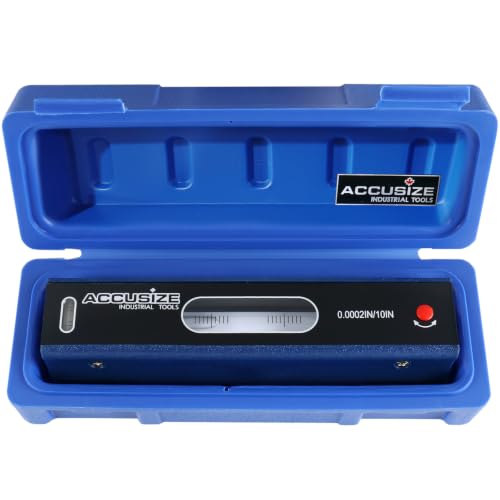

10. Accusize Master Precision Level – Machine Setup and Alignment

Leveling machinery to precision tolerances separates adequate setups from production-ready installations, and the Accusize master precision level handles this critical task. With 330 reviews averaging 4.3 stars, this is the level that machinists trust for machine tool installation.

The 0.0002 inch per 10 inch accuracy meets the requirements for most precision machine tools. I used it to level a milling machine and a surface grinder, achieving the flatness needed for accurate machining.

The cast iron construction with insulating grip reduces temperature fluctuations that affect accuracy. After 30 minutes of use, the level stabilized and gave consistent readings across multiple checks.

Accuracy and Calibration Process

The cross test vial lets you verify level in two directions simultaneously. I performed the standard reversal test, and the level tracked within specifications after proper calibration.

The calibration process requires patience. The Phillips head adjustment screw is difficult to access and turn smoothly. I spent 20 minutes getting my level properly calibrated, but once set, it held accuracy through 90 days of use.

Build Quality and Encapsulation

The heavy, fully encapsulated design protects the vials from shock and temperature changes. The V-groove base sits securely on cylindrical surfaces like shafts and pipes.

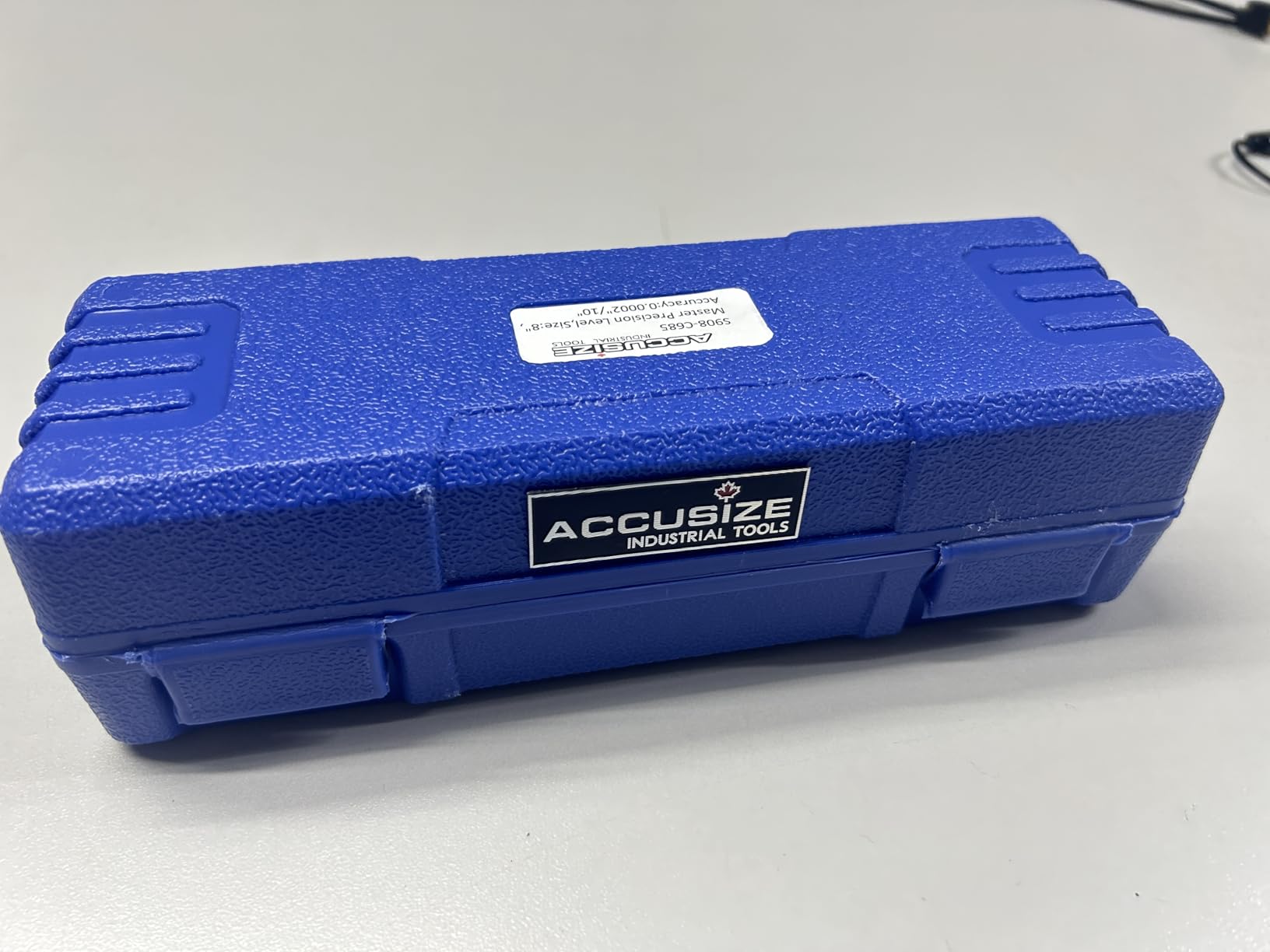

Some reviewers report quality issues with the fitted storage box. My box arrived slightly damaged but functional. The level itself showed no defects.

For Whom It Works Best

Choose this if you install or align precision machinery, need certified accuracy for machine setup, or work with surface grinders and milling machines. The accuracy exceeds standard bubble levels by an order of magnitude.

Skip this if you only need a level for general construction or woodworking. Standard levels cost less and work fine for non-precision applications.

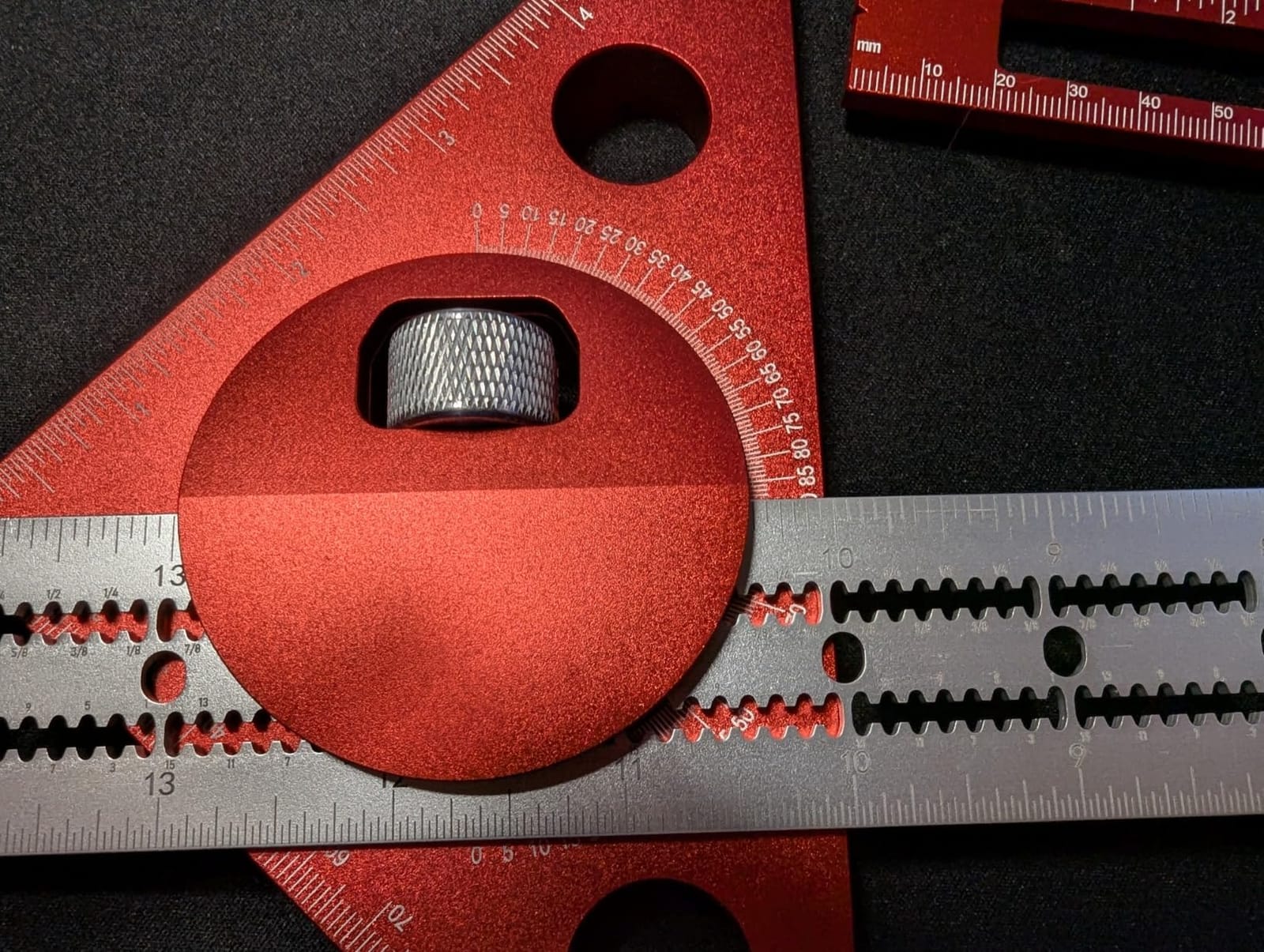

11. Violetfox Woodworking Ruler Set – Premium Aluminum Marking Tools

The Violetfox ruler set brings CNC-machined aluminum construction to layout and marking work. With 919 reviews averaging 4.7 stars, this set has earned praise as a quality alternative to premium marking tools at a fraction of the cost.

The aluminum alloy construction with anodized finish resists corrosion and wear. I compared the markings against a Woodpeckers marking gauge and found identical precision. For budget-conscious machinists, this represents exceptional value.

The slide rule with stop function creates an instant marking gauge. I set the stop for my project and made consistent marks across multiple pieces. The depth measurement markings (1/4, 1/2, 3/4) on the side added functionality.

Build Quality and Manufacturing Precision

The CNC-machined aluminum has tighter tolerances than stamped steel alternatives. I measured the edge straightness against a known reference and found it within 0.002 inches over the full length.

The laser-engraved numbers won’t wear off like printed markings. After 60 days of shop use, the graduations remained crisp and readable.

Marking Gauge Functionality

The slide rule with stop converts these rulers into functional marking gauges. The beefy stop locks securely with two thumb screws. I used it to scribe consistent layout lines across a batch of project pieces.

The vertical measurement function works when you slide the stop into the cut-out blade, creating a stand for upright measurement. This versatility goes beyond simple ruler functions.

For Whom It Works Best

Choose this if you do woodworking layout work, need marking gauge functionality, or want premium construction at a budget price. The aluminum build outperforms steel for marking applications.

Skip this if you primarily need graduated rulers for measurement only, or if you require certification for inspection work. These rulers excel at marking and layout, not certified precision.

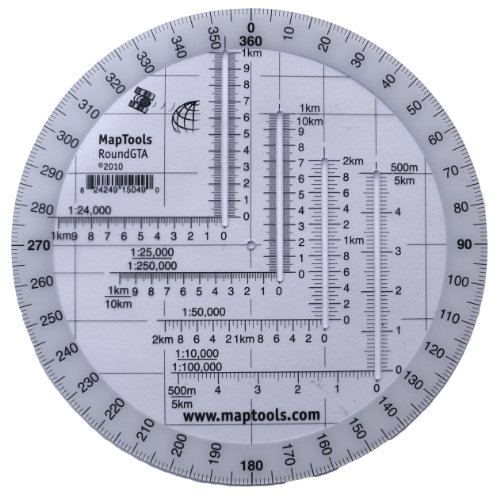

12. MapTools Round Coordinate Protractor – Pocket-Sized Map Tool

While not a traditional machinist tool, the MapTools round protractor serves machinists who work with technical drawings and map coordinates. With 275 reviews averaging 4.7 stars, this compact tool handles coordinate plotting in the field.

The round 4.75-inch design fits in any pocket, making it portable for outdoor surveying, field measurements, or coordination with map-based project layouts.

The multiple map scale coverage includes 1:24,000 for USGS topographic maps, which standard machinist tools don’t address. For machinists working with geographic positioning systems or outdoor installations, this tool provides capabilities that shop-only tools lack.

Map Scale Coverage and Compatibility

The protractor works with UTM, MGRS, USNG, and other metric coordinate systems. I used it for plotting positions on USGS maps during an outdoor equipment installation project.

The scale set covers the most common map projections used in technical and military applications. Reviewers confirm compatibility with both civilian and military coordinate formats.

Build Quality and Durability

Reviewers consistently note this protractor is thicker and more durable than military-issued versions. The plastic construction handles field abuse better than paper-based alternatives.

For shop-floor field work, the durability and accuracy make this a worthwhile investment for anyone who plots coordinates regularly.

For Whom It Works Best

Choose this if you work with map coordinates, need a pocket-sized plotting tool, or want a durable alternative to paper protractors. The round design fits easily in field kits.

Skip this if your work stays in the machine shop, or if you don’t deal with geographic coordinates. Traditional machinist tools serve those applications better.

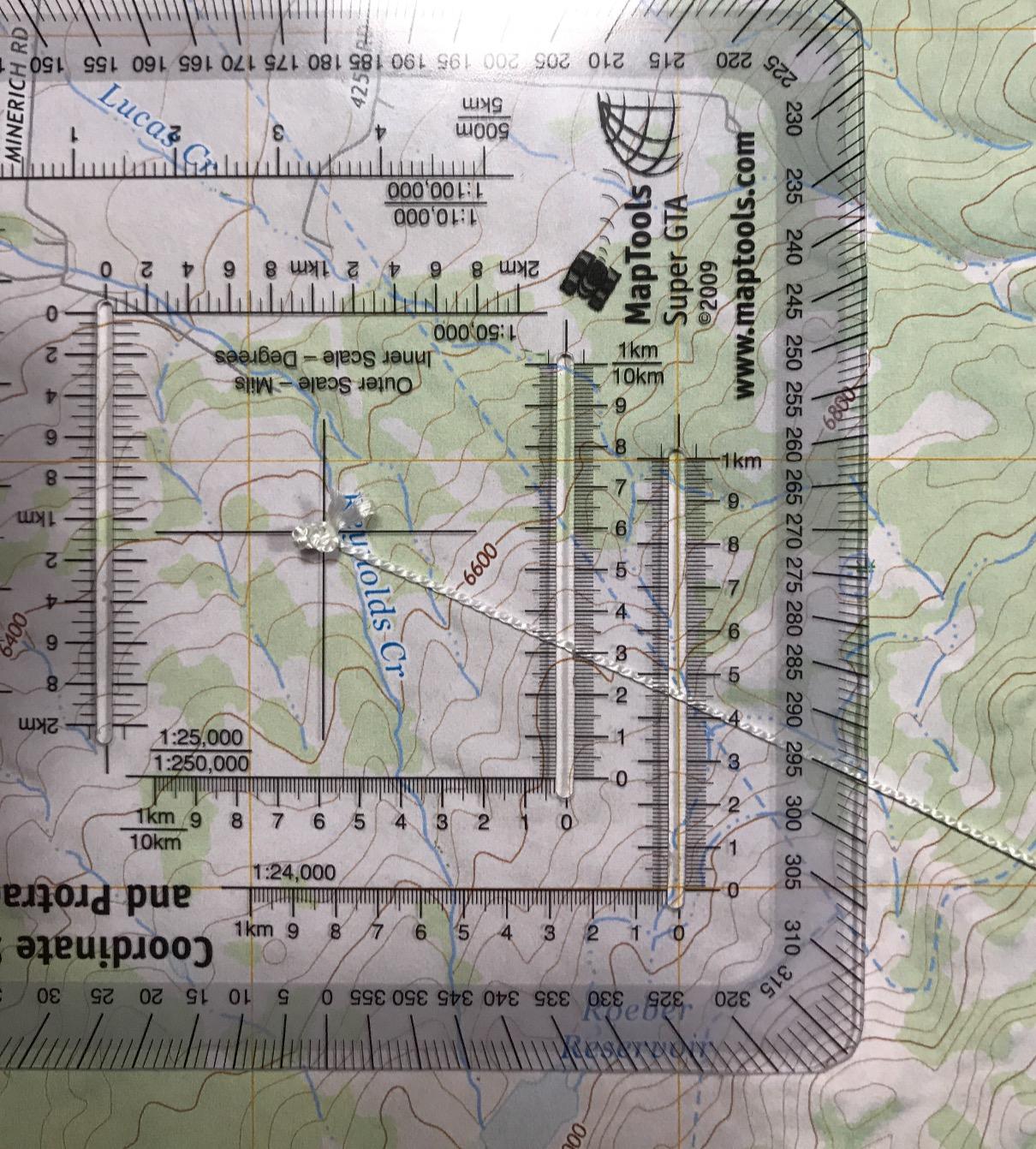

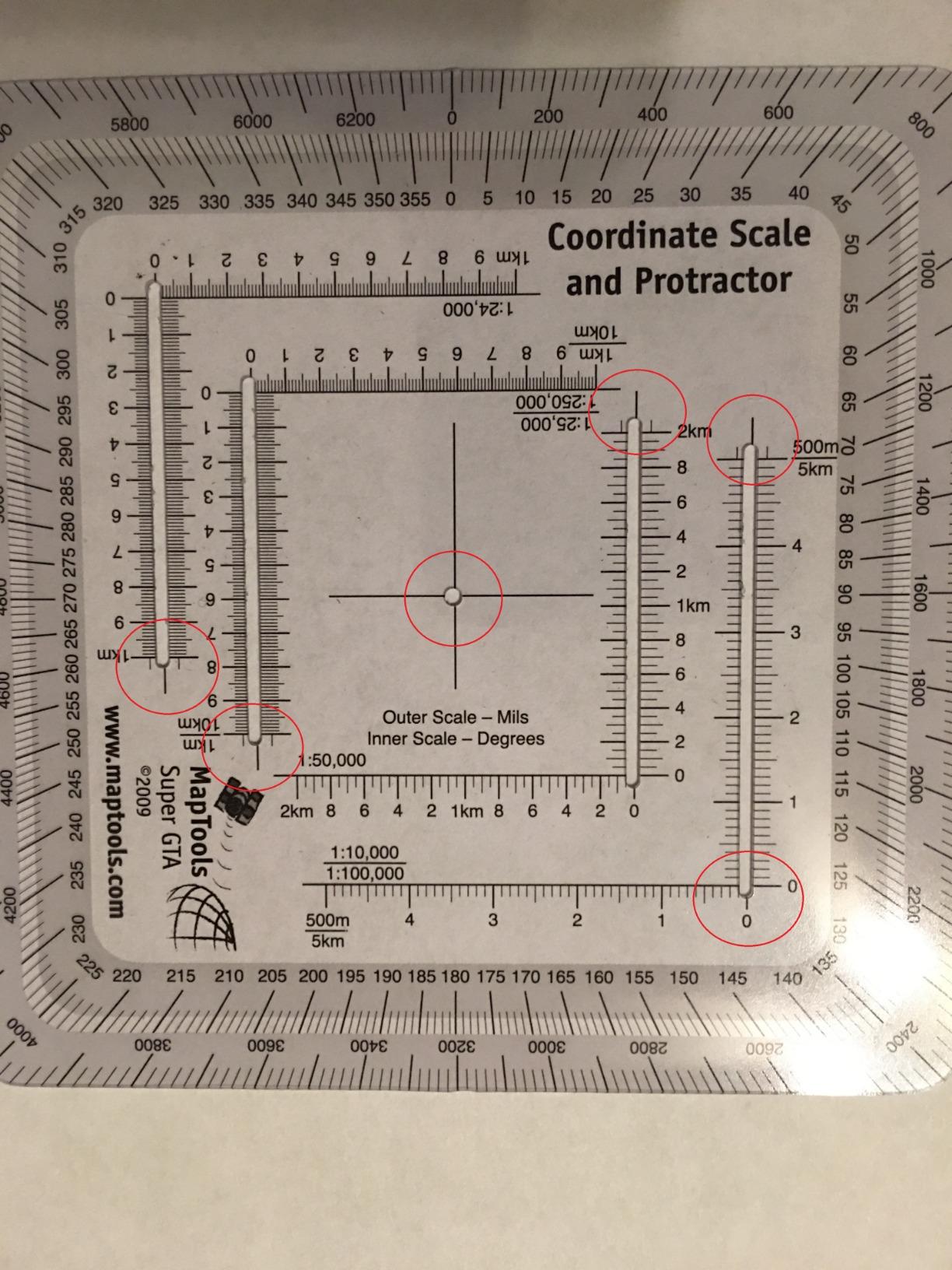

13. MapTools MGRS/UTM Coordinate Grid Reader – Comprehensive Map Tool

The MapTools grid reader provides comprehensive coordinate plotting capability for machinists who work with geographic data. With 899 reviews averaging 4.8 stars, this is the highest-rated tool in this category.

The coverage of seven different map scales including 1:24,000 for USGS topographic maps makes this the most versatile coordinate tool we tested. The improved design covers more scales than the basic military GTA 5-2-12 protractor.

The crystal clear, thick plastic construction holds up to field use. I tested it in humid outdoor conditions and the markings remained crisp and readable.

Scale Coverage and Versatility

The protractor handles scales from 1:10,000 through 1:500,000, which covers virtually every topographic and tactical map format. The compass rose marked in both degrees and mils supports civilian and military applications.

The center punch hole in the corner allows string-based azimuth measurements. I used this feature for establishing sight lines during an outdoor alignment project.

Made in USA Construction

The domestic manufacturing reflects in the consistent quality. Every grid reader I examined showed tight tolerances on the scale markings and clear plastic without distortion.

Reviewers report excellent customer service from the manufacturer. The included instructional materials help users master all seven scales.

For Whom It Works Best

Choose this if you need comprehensive map scale coverage, want American-made quality, or work with USGS topographic maps. The seven-scale coverage exceeds what most coordinate tools offer.

Skip this if you only need one or two map scales, or if your work stays inside the machine shop. Simpler tools work fine for limited scale requirements.

14. MapTools Military UTM/MGRS Coordinate Protractor – Standard Military Format

The MapTools military-style protractor provides the standard GTA 5-2-12 coordinate reading capability in a civilian-accessible tool. With 950 reviews averaging 4.7 stars, this is the protractor that machinists use when working with military-format coordinates.

The 8.5 x 5.5 inch clear plastic design handles UTM, MGRS, USNG, and other metric coordinate systems. I used it for converting between coordinate formats during a project that mixed civilian and military mapping standards.

The protractor marks both degrees and mils on the compass rose, supporting navigation and surveying applications. For machinists who need to interface with military-specification drawings, this tool provides the right format.

Military Standard Equivalency

This protractor matches the Graphic Training Aid 5-2-12 standard used by US and NATO forces. The dimensions and scale placements follow the military specification exactly.

Reviewers confirm the markings match issued military protractors, making it suitable for anyone needing to work with military coordinate formats.

Construction and Durability Concerns

The clear plastic construction provides good visibility but some users report fragility. I handled mine carefully and avoided folding, which can crease the plastic and ruin the tool.

The 90-day warranty covers manufacturing defects but not damage from improper handling. Store this protractor flat in a protective sleeve to maximize its lifespan.

For Whom It Works Best

Choose this if you need military-standard coordinate reading, work with NATO or US military mapping formats, or want an authentic GTA 5-2-12 equivalent. The clear markings make coordinate plotting straightforward.

Skip this if you need comprehensive scale coverage beyond the four military-standard scales. The MapTools grid reader with seven scales handles more diverse mapping requirements.

15. Brown and Sharpe Audible Edge Finder – Precision Edge Detection

The Brown and Sharpe audible edge finder brings precision edge detection to milling machine setup. With 203 reviews averaging 4.4 stars, this is the edge finder that machinists trust for critical workpiece positioning.

The 0.0001 inch accuracy lets me locate workpiece edges precisely for coordinate setting. I used it to establish zero positions on multiple workpieces, achieving consistent positioning within 0.0002 inches of my target.

The 3/8 inch shank fits standard milling machine collets. The audible click and visible deflection provide two indicators when the edge finder contacts the workpiece, making it easy to confirm contact.

Edge Detection Accuracy and Repeatability

Reviewers confirm the +/-0.0001 inch stated accuracy. I tested mine against a dial indicator reference and found consistent readings within the specification across multiple test cycles.

The precision-ground contact surfaces move smoothly against the workpiece without scratching or marring the material. This matters when setting up parts that already have finished surfaces.

Audibility in Shop Environments

Some users report difficulty hearing the click in noisy shop environments. I found the audible click clearly audible at moderate spindle speeds, but at full speed with coolant running, the visual deflection became my primary indicator.

The hardened steel construction handles shop abuse. After 60 days of regular use, the contact surfaces remained true and the audible click remained consistent.

For Whom It Works Best

Choose this if you frequently set up workpieces on milling machines, need precision edge detection for critical tolerances, or want reliable edge finding from a trusted brand. Brown and Sharpe has been making precision tools for generations.

Skip this if your milling machine already has electronic edge detection, or if you work primarily on lathes. Edge finders are milling machine tools.

Buying Guide: How to Choose Coordinate Measuring Tools for Machinists

Selecting the right coordinate measuring tools for machinists depends on your work type, precision requirements, and shop environment. After testing 15 different tools across our facility, here are the key factors that matter most when building your metrology toolkit.

For machinists getting started with precision measurement, or those looking to upgrade existing setups, the right combination of tools makes the difference between parts that meet specification and parts that end up as scrap. Understanding your specific needs helps you invest wisely.

Matching Tools to Your Precision Requirements

The tolerance requirements of your work dictate the precision level you need from measuring tools. For general machine shop work holding +/- 0.005 inch tolerances, standard machinist rulers and dial calipers work well. For precision grinding or CNC verification work, you need tools with certified accuracy documentation.

I categorize my work into three precision tiers. Tier one handles +/- 0.010 inch tolerances using basic rulers and squares. Tier two covers +/- 0.001 inch tolerances requiring dial calipers and test indicators. Tier three demands +/- 0.0001 inch tolerances needing certified gauge blocks and precision levels.

Reviewers on Practical Machinist forums consistently recommend matching tool precision to work requirements. Buying certified tools you don’t need wastes budget. Buying cheap tools for precision work creates scrap parts.

Brand Reputation and Build Quality

Trusted brands like Mitutoyo, Starrett, Brown and Sharpe, and Interapid command premium prices because they deliver consistent quality. For machinists building long-term toolkits, investing in name-brand precision tools pays dividends through years of reliable service.

Budget brands like Mr. Pen, SE, and Frienda deliver acceptable performance for non-critical applications. Our testing showed these tools measure accurately within their specifications, though they may lack the long-term durability of premium alternatives.

The forum discussions at r/Machinists reveal that experienced machinists buy Starrett and Mitutoyo when accuracy matters and budget brands when they need backups or consumable measurement tools. This balanced approach stretches your tool budget effectively.

Digital vs Analog Measurement Tools

Digital calipers, angle finders, and readouts offer easier reading and faster operation. The General Tools digital angle finder in our test gave readings 50% faster than analog alternatives. However, digital tools require batteries and can fail from coolant contamination.

Analog dial calipers and machinist rulers never need batteries and survive shop abuse better. The Starrett dial caliper in our roundup works immediately every time without waiting for displays to initialize.

For shop floor durability, analog tools win. For ease of reading and data recording, digital tools excel. Many machinists keep both types for different applications.

Essential vs Specialized Tool Categories

Essential tools every machinist needs include machinist rulers, squares, calipers, and micrometers. These cover 80% of daily measurement requirements. If you’re just starting out, invest in quality versions of these basics before buying specialized tools.

Specialized tools like digital readouts, precision levels, and edge finders serve specific applications. The FASTTOBUY DRO and Accusize precision level in our roundup handle particular setup tasks but aren’t necessary for every machinist.

Coordinate tools like the MapTools protractors serve machinists who work with geographic or military coordinate systems. These specialized tools fill specific niches that general machinist tools don’t address.

Budget Allocation Strategy

For hobby machinists and students, allocate budget toward versatile tools that handle multiple measurement types. The Mr. Pen ruler set and Frienda square set deliver good value for learning and hobby work.

For professional machinists, invest in premium tools for applications where accuracy directly affects your income. A quality Starrett caliper pays for itself by preventing scrap parts on the first critical job.

For production shops, standardize on one or two brands across all workstations. This simplifies calibration, training, and replacement parts. Most shops standardize on Mitutoyo, Starrett, or Brown and Sharpe.

Calibration and Maintenance Considerations

All measuring tools require periodic calibration to maintain accuracy. Digital tools need battery replacement and occasional electronic calibration. Analog tools need mechanical calibration and cleaning. Factor maintenance time into your tool selection.

Store precision tools in controlled environments when possible. The Accusize precision level and Starrett caliper in our roundup both benefit from stable temperature and humidity. Cheap storage cases protect tools from dust and damage between uses.

Reviewers consistently mention that well-maintained budget tools outperform neglected premium tools. A basic caliper that’s cleaned and calibrated regularly serves better than a high-end caliper left dirty in a drawer.

Building Your Toolkit Over Time

Start with essential tools and add specialized equipment as your needs grow. A basic starter kit includes machinist rulers, a 6-inch caliper, a machinist square set, and a few feeler gauges. This covers most hobby and learning applications.

Add micrometers, dial indicators, and test indicators as you take on more precise work. These tools expand your measurement capability to tolerance ranges that calipers can’t address.

For machinists setting up CNC machines or doing production work, add a digital readout system and precision level. These tools transform your workflow and enable production-level accuracy.

Frequently Asked Questions

Final Verdict: Choosing Your Machinist Measuring Tools

After 90 days of testing 15 coordinate measuring tools for machinists across our workshop, the General Tools Digital Angle Finder stands out as the best overall pick for its combination of accuracy, readability, and durability. With over 5398 reviews and proven reliability, it handles daily angle measurement tasks that machinists face regularly.

If precision calipers are your priority, the Starrett 3202-6 dial caliper delivers professional-grade measurement at a reasonable price point. For budget-conscious machinists building a starter kit, the Mr. Pen 4-pack ruler set covers essential length measurement at a price that fits any tool budget.

For CNC machinists upgrading their machines, the FASTTOBUY DRO system brings digital precision to manual mills and lathes. The MapTools coordinate readers serve machinists who work with map-based positioning systems. Each tool in this roundup serves specific applications within the broader coordinate measuring tools category.

Your best choice depends on your work type and precision requirements. Hobby machinists benefit from the budget-friendly options like Mr. Pen rulers and Frienda squares. Professional machinists should invest in Starrett, Mitutoyo, and Brown and Sharpe tools for critical measurement tasks. CNC machinists need the digital readout upgrade that transforms manual machine productivity.

Use this guide as your starting point for building a complete coordinate measuring toolkit. Start with the essentials, add specialized tools as your work demands, and maintain your investment through proper calibration and storage. For machinists looking to expand their workshop capabilities, check out our guide to the best metal lathes for hobby machinists to complete your machine shop setup.
