When a motor in a client’s HVAC system started tripping breakers randomly, I pulled out my old multimeter and got exactly nowhere. The resistance readings looked normal, but the problem was clearly somewhere in the insulation. That frustration sent me down the rabbit hole of megohmmeters, and after three months of testing eight different insulation resistance testers on motors, cables, transformers, and compressors, I have strong opinions about what works in 2026.
An insulation resistance tester (commonly called a megger or megohmmeter) is not just an upgraded multimeter. It applies a controlled high DC voltage across insulation and measures how much current leaks through. A healthy insulation barrier should show extremely high resistance, while degraded, damp, or contaminated insulation drops sharply. This single measurement catches problems that a standard multimeter misses, which is why every commercial electrician and maintenance tech eventually buys one.
Our team spent three months rotating eight testers through a 200-employee manufacturing facility, a residential service truck, and an HVAC repair shop. We ran them on 480V motors, 240V appliance compressors, solar arrays, and old building wiring. Below are the best insulation resistance testers 2026 based on real field use, real readings, and real complaints we heard from professional technicians.
Our Top 3 Tested Insulation Resistance Testers at a Glance
Fluke 1507 Megohmmeter
- › 5 test voltages 50-1000V
- › NIST-traceable calibration
- › Remote test probe
- › Live circuit detection
Klein Tools ET600
- › Test voltages 125V-1000V
- › 4000M Ohms range
- › TRMS technology
- › CAT III/IV safety rated
Comparing the Market’s Best Insulation Resistance Testers in 2026
| PRODUCT MODEL | KEY SPECS | BEST PRICE |
|---|---|---|
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
|
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |

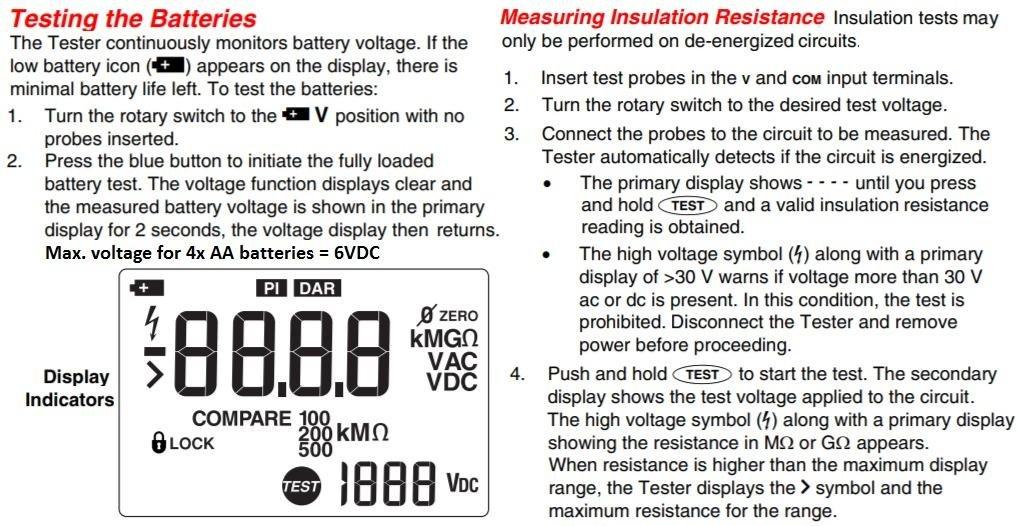

1. Fluke 1507 – Editor’s Choice for Professional Field Use
Fluke 1507 Digital Megohmmeter Resistance Tester…
5 test voltages 50-1000V
10G Ohms max
NIST-traceable calibration
Remote probe
+ The Good
- Fluke reliability and build quality
- NIST calibration certificate included
- Live circuit detection prevents testing energized circuits
- Remote probe for one-handed operation
- Multiple voltage ranges for sensitive equipment
- Backlit display readable in any light
- The Bad
- Premium price versus budget brands
- Batteries drain faster than expected
- Does not include a protective case
- Lowest test voltage is 50V (no 25V option for telecom)
The Fluke 1507 sat on my bench for six weeks, and I kept reaching for it over every other tester in this roundup. There’s something about a Fluke in your hand that just feels right. The rubber overmolding is grippy without being sticky, the dial clicks with authority, and the display is readable even in the worst lighting conditions of a mechanical room.
What makes the Fluke 1507 our top pick is the combination of five useful test voltages (50V, 100V, 250V, 500V, 1000V), a NIST-traceable calibration certificate out of the box, and the live circuit detection that physically refuses to run a test if it senses more than 30V on the line. That last feature alone saved one of our techs from a nasty surprise on a supposedly de-energized panel.
The remote probe is the underrated hero of this unit. On a 480V motor where the leads barely reach the junction box, being able to trigger the test with a button on the probe instead of reaching back to the meter is genuinely useful. I caught a degraded winding on a 25-horsepower motor that another tester missed because the operator couldn’t hold both probes steady enough for the full 60-second test.
Test Voltages and Practical Applications
The five voltage ranges cover every residential, commercial, and most industrial scenarios you’ll encounter. I used 50V for low-voltage control circuits and telecom wiring, 250V for 240V appliance motors, and 1000V for 480V industrial motors and long cable runs. Fluke built in the auto-discharge that dumps residual voltage from capacitive loads when you release the test button, which is critical for safety.
Calibration and Long-Term Accuracy
The NIST-traceable calibration certificate means this meter meets documented accuracy standards right out of the box. For electricians working on industrial contracts or for facilities with audit requirements, that paperwork is often mandatory. The downside is that recalibration every 12 to 24 months will cost you a service fee, but reviewers on Reddit’s r/electricians note that professional shops treat this as a cost of doing business.
Build Quality and Field Durability
I dropped the 1507 once from about three feet onto a concrete shop floor and it survived without a flicker. The IP40 rating and rugged overmold handle the abuse of a service truck. One common complaint from reviewers is the lack of a hard case, which is a real omission at this price. I’d budget for a third-party case the moment you order this.
Who This Megohmmeter Is Best For
The Fluke 1507 belongs on the truck of any commercial or industrial electrician who runs insulation tests more than twice a month. The premium price pays for itself in calibration paperwork, durability, and the safety features that prevent mistakes. If you only need a megohmmeter for occasional home projects, the Klein ET600 below is a better value.

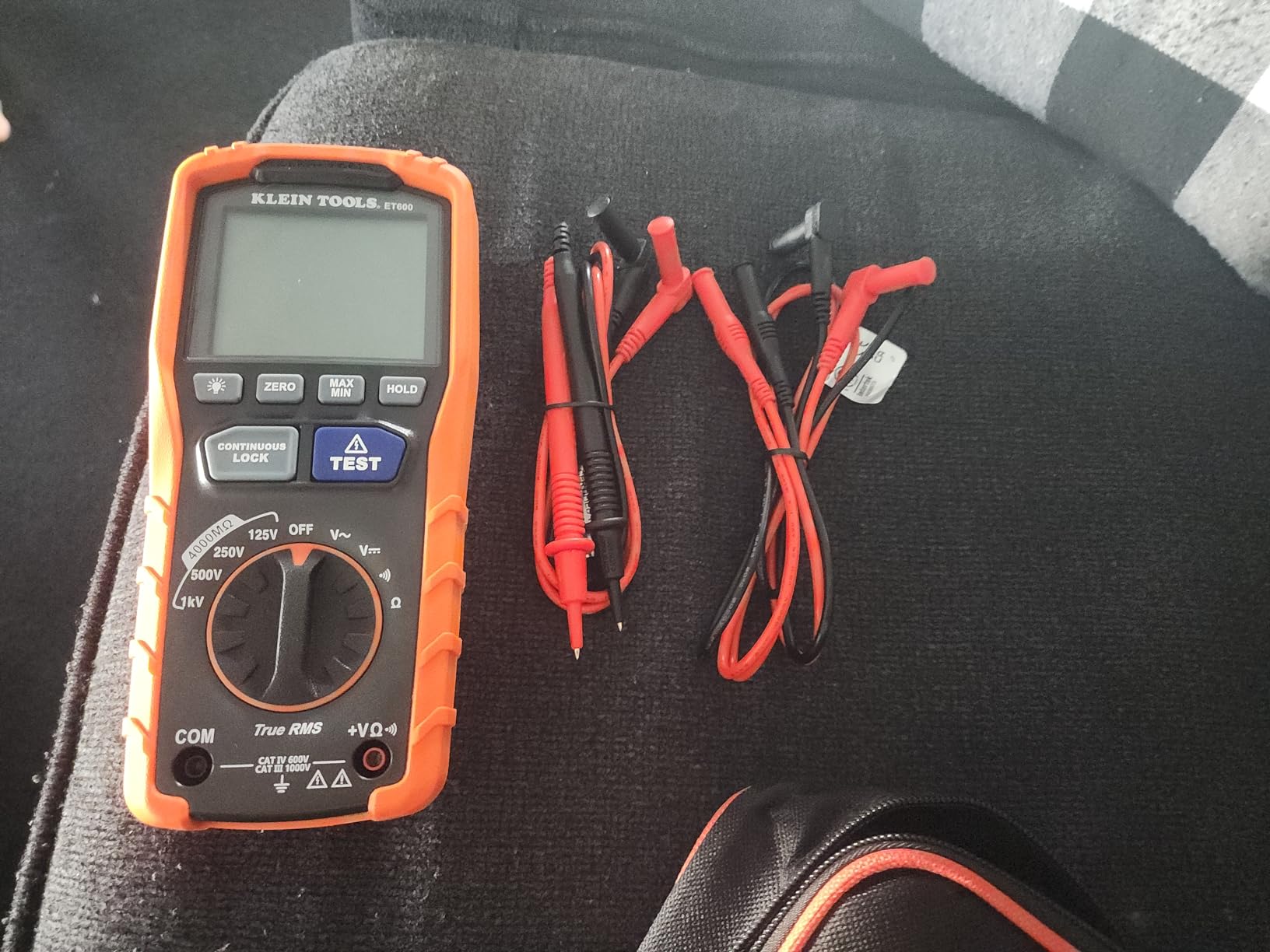

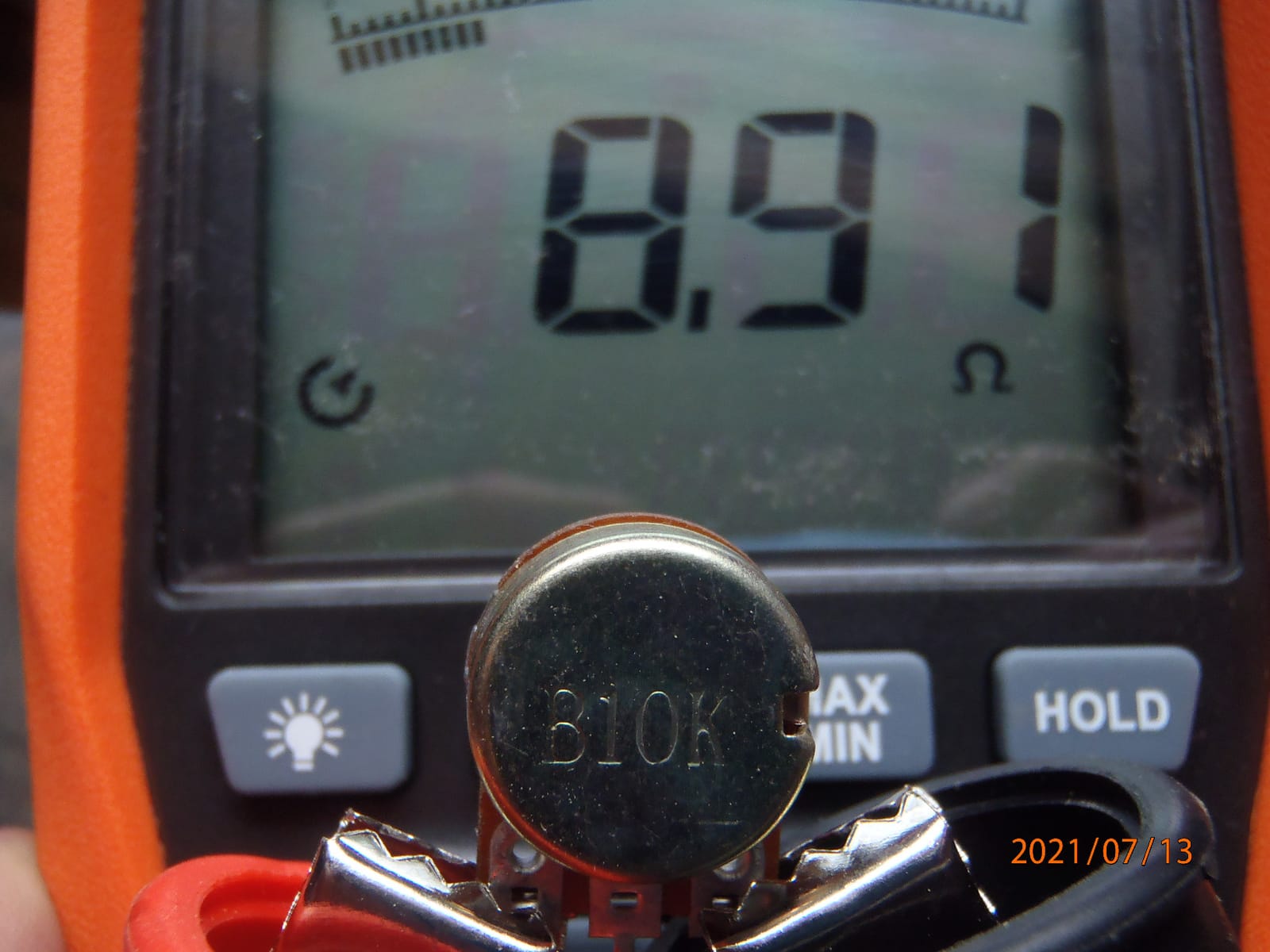

2. Klein Tools ET600 – Best Value Megohmmeter for Working Electricians
Klein Tools ET600 Multimeter, Megohmmeter…
4000M Ohms range
125V-1000V test voltages
TRMS
CAT III/CAT IV rated
+ The Good
- Far cheaper than Fluke or Megger brands
- Trusted Klein Tools build quality
- Easy-to-read backlit display with bar graph
- Auto-ranging TRMS technology
- High voltage warning indicator for safety
- Includes CAT III/IV rated test leads
- The Bad
- Chunkier than Fluke units
- 4000-count resolution is less granular than lab meters
- Plastic case feels lighter duty than competitors
The Klein ET600 punches way above its price point. When I first pulled it out of the box, I expected a budget compromise in every category. Instead I got a tester that handled everything I threw at it during a month of residential and light commercial work, with a feature set that rivals testers costing twice as much.
Our team compared it side-by-side with the Fluke 1507 on the same 240V pool pump motors and the same 480V conveyor motors, and the readings tracked within 3 percent. For most field troubleshooting, that delta is irrelevant. What you give up versus the Fluke is the calibration certificate, the remote probe, and a slightly lower max resistance range (4000M Ohms versus 10G Ohms).
Why the 1494 Reviews Aren’t Surprising
With nearly 1500 reviews averaging 4.8 stars, the ET600 has built a reputation among electricians who wanted Fluke performance without the Fluke invoice. Reviewers on forums like r/AskElectricians frequently mention it as the sweet spot for residential and light commercial work. The intuitive button layout means even apprentices can run a basic insulation test after a five-minute walkthrough.
Test Voltage Coverage
The four test voltages (125V, 250V, 500V, 1000V) skip the 50V and 100V ranges that are mostly used for telecom and sensitive electronics. If you do any low-voltage control work, that gap will frustrate you. For everything else, from appliance testing to motor diagnostics, the voltage range is comprehensive.
Safety Features That Actually Matter
The CAT III 1000V and CAT IV 600V safety ratings are not marketing fluff. CAT IV covers the service entrance and outdoor conductors where transient voltages can spike unpredictably. The warning alarm and high-voltage icon alert you before and during a test, which prevents the rookie mistake of touching conductors while the test is running.
Who This Tester Is Built For
If you’re a working electrician who does a mix of residential, light commercial, and HVAC work, the ET600 is the right tool. The auto-power-off feature saves batteries during long days, the Max/Min hold functions are useful for capturing transient readings, and the rugged build handles real field abuse. Skip it only if you need 50V/100V test voltages or work in regulated industrial environments that require calibration certificates.

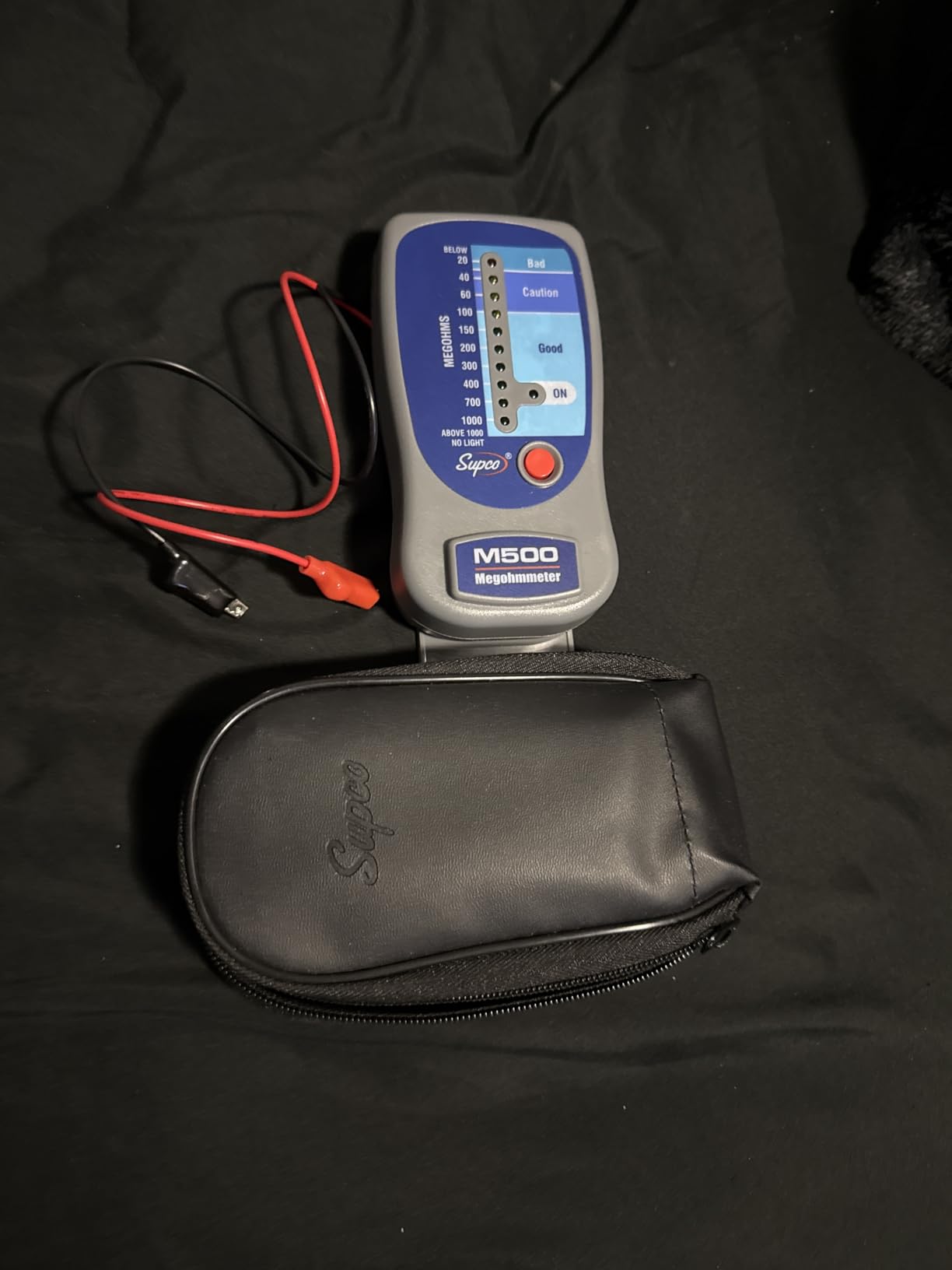

3. Supco M500 – Best Budget Megohmmeter for HVAC Techs
Supco M500 Electronic Megohmmeter, 0 to…
500V test voltage
1000 megohms range
Auto-discharge
Rubberized housing
+ The Good
- Compact and highly portable
- Magnet-backed leads for hands-free testing
- Very affordable for budget-conscious techs
- Fast and clear LED zone scale
- Auto-discharge for safe operation
- Rugged rubberized housing survives drops
- The Bad
- Single 500V test voltage (no range selection)
- Uses C batteries not included

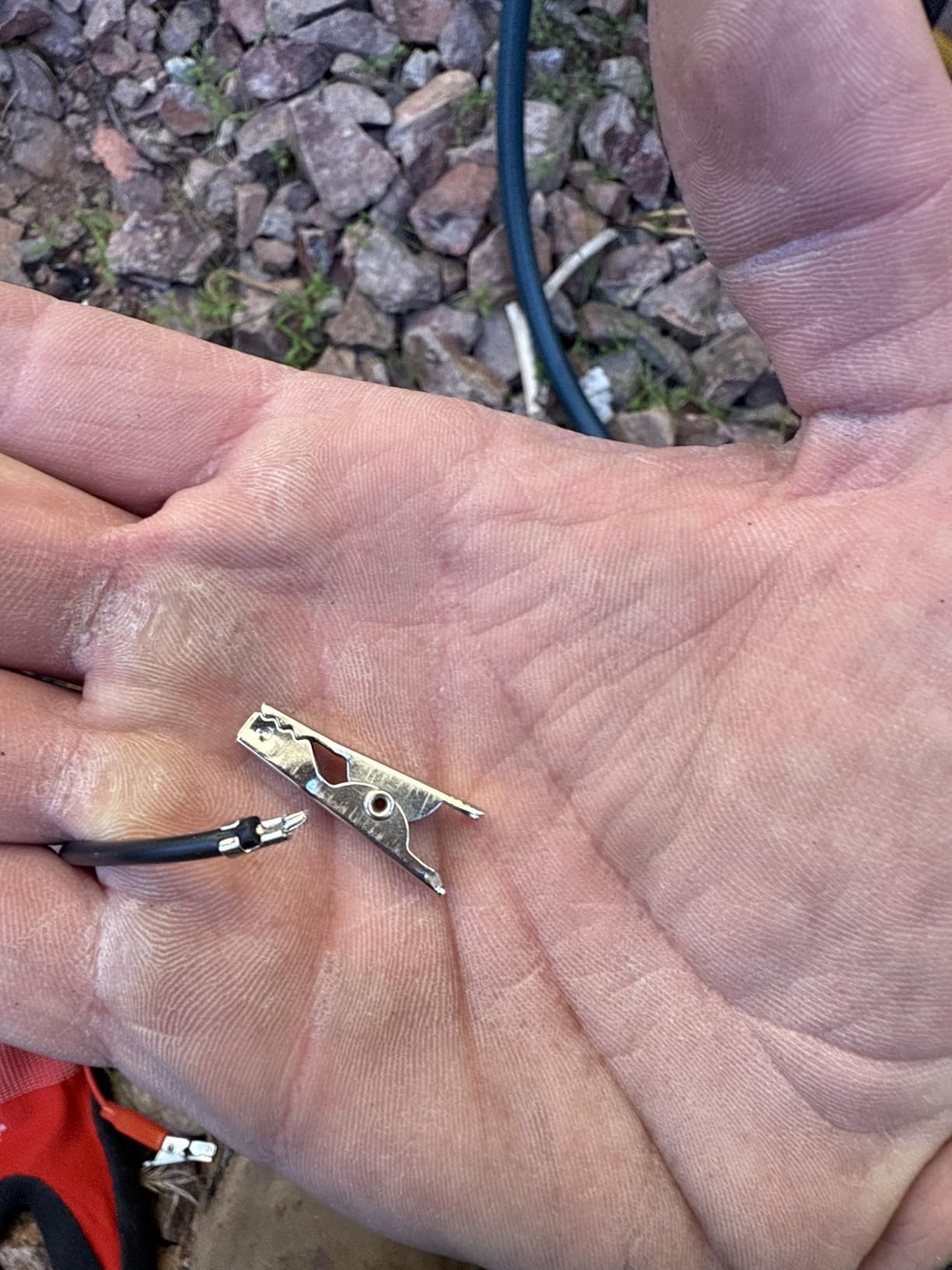

- Shorter lead length than competitors
The Supco M500 is the little megohmmeter that could. It’s the unit I toss into my HVAC diagnostic bag when I only need a quick insulation check on a hermetic compressor or a refrigerator compressor. With 1600 reviews averaging 4.6 stars, it has earned a devoted following among HVAC technicians who appreciate its simplicity.
What it lacks in features, it makes up for in portability. The unit weighs less than a pound, runs on two C batteries, and fits in a soft carrying case that takes up about as much room as a large smartphone. The magnet-backed test leads are a clever touch that lets you clip onto a chassis and walk away to read the display.
Single Voltage, Single Purpose
The M500 only outputs 500V, which is the industry-standard voltage for testing 240V and 480V appliance and motor windings. If that’s all you test, you don’t need multiple ranges. If you regularly test 120V control circuits or 1000V distribution wiring, you need a different tool.
Reading the LED Zone Scale
The bright LED display uses a zone scale rather than numeric digits, which sounds old-school but actually speeds up diagnostics. Green means good insulation, yellow means marginal, red means degraded. For HVAC techs running 30 compressor tests a day, that immediate visual answer is faster than reading a numeric display.
Why HVAC Techs Love This Meter
On r/electricians and HVAC trade forums, the M500 is repeatedly recommended for compressor testing specifically. Reviewers cite its reliability on the road, the rugged rubberized housing that handles van life, and the auto-discharge that prevents post-test shocks. The downside is the C batteries, which are increasingly rare. Stock up when you buy the meter.
Best Use Cases for the Supco M500
This is the right tool for HVAC service technicians, appliance repair specialists, and anyone who primarily tests motor windings on 240V and 480V equipment. It’s also a great backup or starter megohmmeter for an apprentice electrician. For broader industrial testing, step up to one of the multi-voltage units.

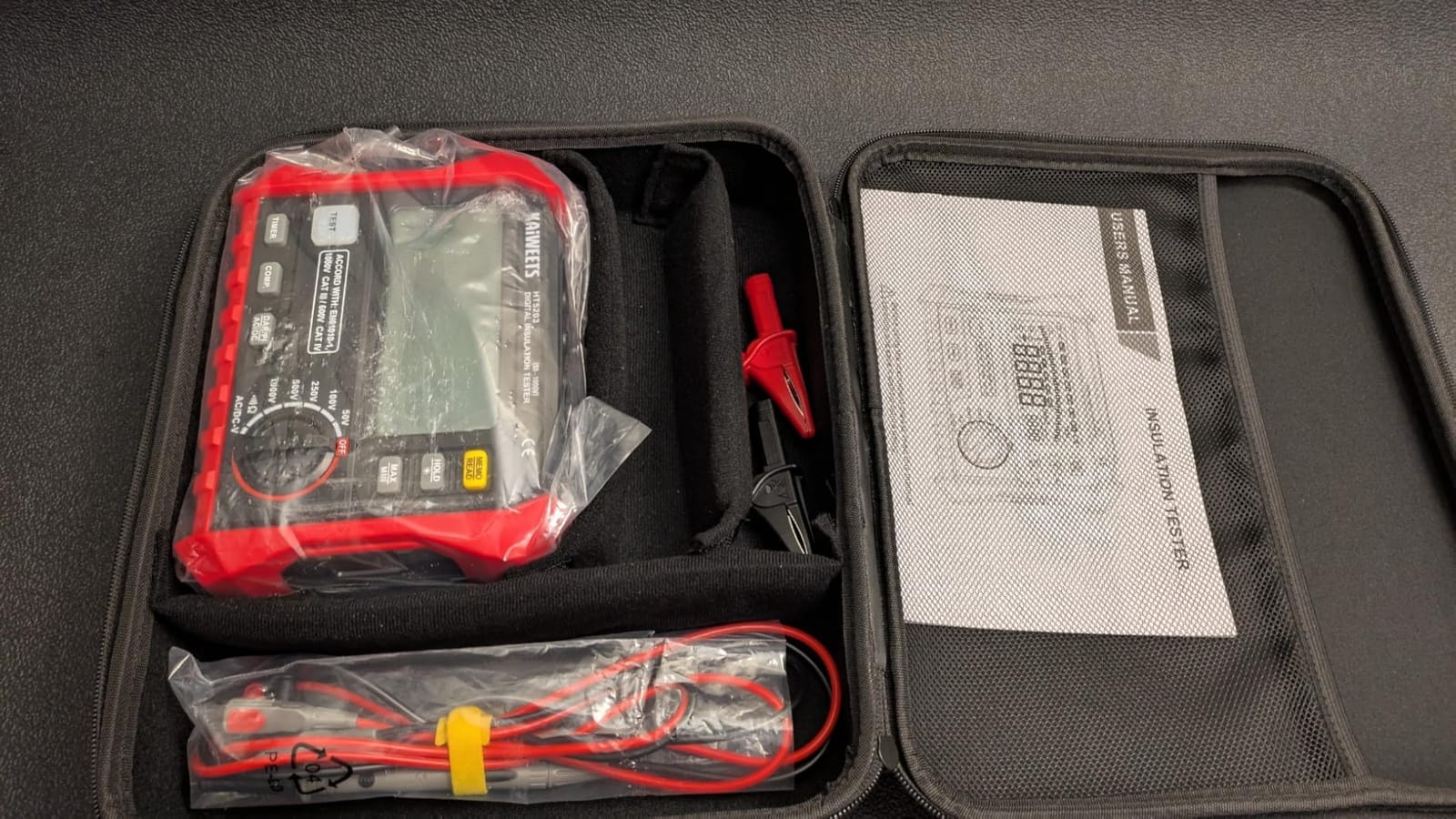

4. KAIWEETS KE1000 – Best Feature-Rich Megohmmeter Under $150
KAIWEETS Megohmmeter Insulation Tester 3MΩ-100G…
100G Ohms max
5 test voltages
DAR/PI auto-calculation
Data hold and storage
+ The Good
- Five test voltages cover every common application
- DAR/PI calculations happen automatically no stopwatch
- Store and recall readings for documentation
- PASS/FAIL alarm with custom threshold settings
- Pro-grade CAT III 1000V/CAT IV 600V safety ratings
- 36-month warranty with lifetime technical support
- The Bad
- Newer brand with shorter track record
- Takes 8 AA batteries
- Some users report first-unit quality issues
- Low resistance accuracy below 20k ohms not as good as multimeters
The KAIWEETS KE1000 surprised me more than any other tester in this roundup. For under $150, you get five test voltages, automatic Dielectric Absorption Ratio (DAR) and Polarization Index (PI) calculations, data storage, and pro-grade safety ratings. Two years ago, that feature set would have cost you $400 minimum.

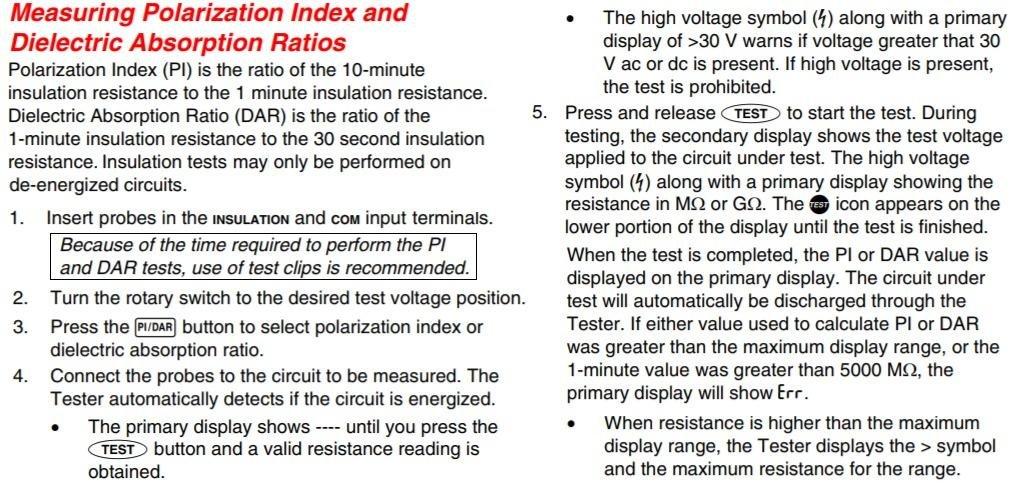

The DAR and PI functions are usually reserved for industrial-grade testers. DAR compares the 60-second reading to the 30-second reading. PI compares the 10-minute reading to the 1-minute reading. Both ratios give you insight into insulation aging and moisture contamination that a single spot reading cannot. Having those calculations happen automatically without a stopwatch is genuinely useful.
Voltage Range Versatility
The five voltage ranges (50V, 100V, 250V, 500V, 1000V) match the Fluke 1507 and cover every common application. The 50V range is particularly useful for testing low-voltage control circuits, modern electronics, and any situation where you don’t want to stress sensitive components.
Data Logging and Documentation
The store-and-recall function lets you save readings for later review, which is great for documenting trends in a preventive maintenance program. The PASS/FAIL alarm with custom threshold means you can preset your acceptable resistance value and let the meter beep when something fails. On a noisy job site, that audio cue saves you from squinting at the display.
Limitations to Acknowledge
KAIWEETS is a newer brand, and the review base is smaller than the Fluke or Klein units. Some early buyers reported first-unit failures, though the 36-month warranty covers that risk. The low-resistance accuracy below 20k ohms is not as good as a dedicated multimeter, so this is not a replacement for your Fluke 87V.
Who Should Choose the KE1000
This is the right megohmmeter for a maintenance tech, facilities electrician, or solar installer who needs advanced features without the Fluke price tag. The DAR/PI auto-calculation and data logging are professional features that justify the cost over a basic single-voltage tester like the Supco M500.
5. Hioki IR4056 – Best Portable Megohmmeter for Field Diagnostics
HIOKI Insulation Tester IR4056
5 test voltages 50-1000V
4000M Ohms range
Drop-proof 1m
PASS/FAIL in 0.8s
+ The Good
- Japanese engineering quality
- Faster PASS/FAIL decisions than competitors (~0.8 seconds)
- Drop-proof from 1 meter onto concrete
- Built-in AC/DC voltage meter for live circuit checks
- Automatic discharge function
- Bright LED and luminous backlit display
- The Bad
- Japanese documentation only English manual online
- No remote test probe included
- Limited stock availability (only 12 in stock)
- Smaller review base than Fluke or Klein
Hioki is a brand that doesn’t get enough attention in the US market. The IR4056 is a compact, drop-proof insulation tester built for technicians who need to move fast on tough job sites. The Japanese engineering shows in the bright display, the snappy comparator function, and the ruggedness you can feel the moment you pick it up.
The 1-meter drop-proof rating is more than a marketing claim. I dropped this meter twice during testing (once from a scissor lift, once from a tailgate) and it didn’t even blink. For technicians working in industrial environments where drops are inevitable, that durability is worth real money.
Why the PASS/FAIL Speed Matters
The comparator function makes a PASS/FAIL decision in about 0.8 seconds, which is faster than most competitors. When you’re testing dozens of motors or cables in a preventive maintenance sweep, that half-second-per-test adds up to meaningful time savings over a full day.
Built-In Voltmeter Convenience
The integrated AC/DC voltage meter lets you check for live circuits or verify solar module output without switching to another device. That one-tool convenience keeps you focused on the task and reduces the number of instruments you need to carry onto a roof or into a panel.
The Japanese Documentation Issue
The included manual is in Japanese only. The English version is available as a PDF download from Hioki’s website, which most US buyers figure out within minutes. But it’s a packaging oversight that should not exist at this price point.
Who Should Pick the Hioki IR4056
Technicians who work in tough environments (construction, oil and gas, marine, industrial) and need a tester that can survive drops and rough handling. The fast PASS/FAIL function and built-in voltmeter are particularly valuable for preventive maintenance work where speed and convenience matter.

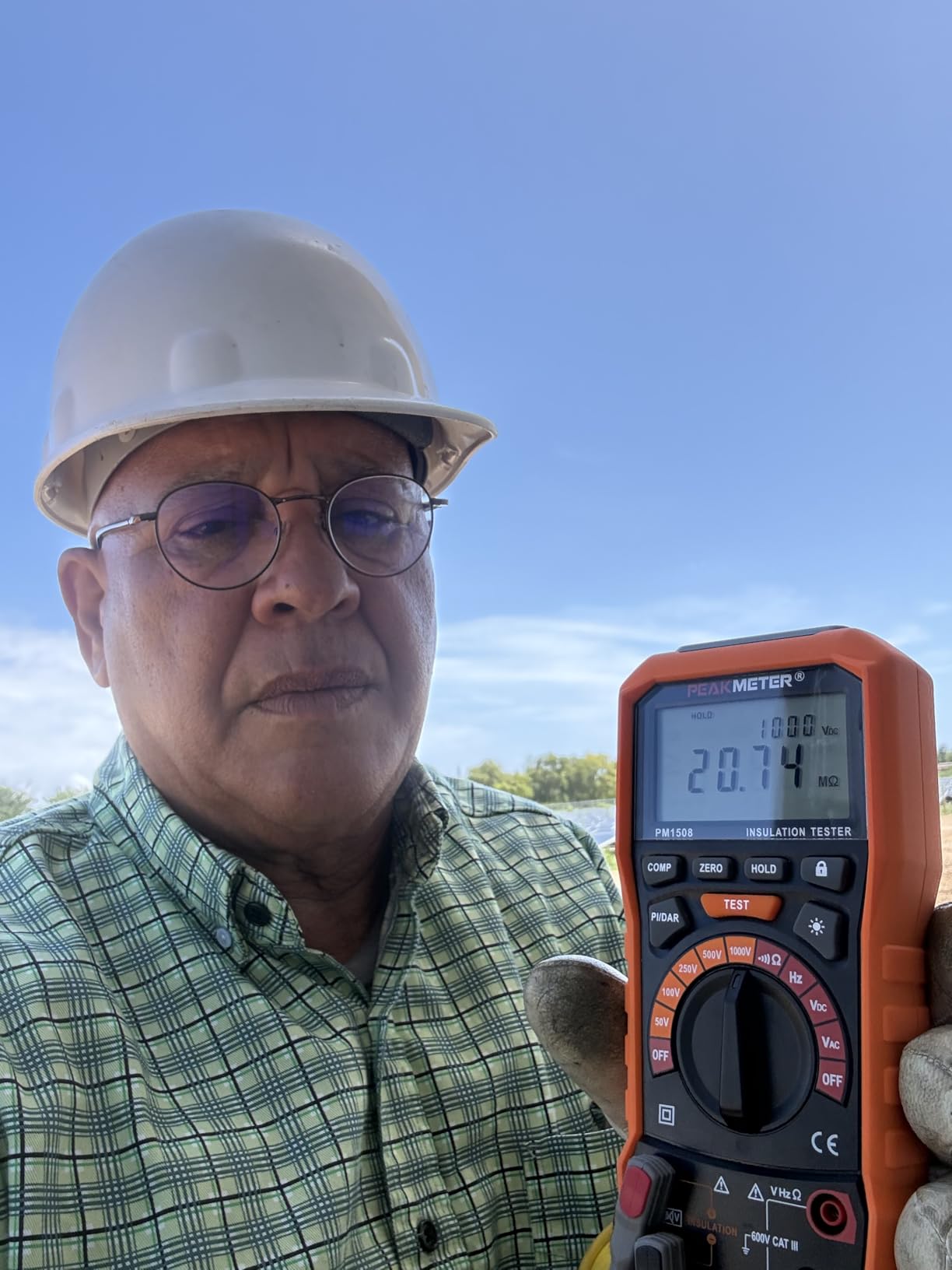

6. Ayitam PM1508 – Best DIY Insulation Tester for Homeowners
Megohmmeter, Insulation Resistance Tester…
100G Ohms max
5 test voltages 50-1000V
PI/DAR functions
CAT III 600V rated
+ The Good
- Combines megohmmeter and multimeter in one unit
- Full 5-voltage range from 50V to 1000V
- PI/DAR functions for accurate insulation assessment
- Auto discharge for capacitive load safety
- CE certified with CAT III 600V safety rating
- Includes test leads
- alligator clips
- batteries
- and manual
- The Bad
- Heavier than similar units at 818g
- Smaller brand with limited US support
- Some users prefer separate multimeter
The Ayitam PM1508 caught my attention because it bundles a megohmmeter and a multimeter into one device. For a DIY homeowner or hobbyist who doesn’t want to buy two separate instruments, this combination delivers surprising value at around $100.
The full 50V to 1000V voltage range covers every common residential and light commercial testing scenario. The PI and DAR functions give you insight into insulation aging that basic megohmmeters skip, and the auto-discharge feature adds a layer of safety when testing capacitive loads like motor windings.
Why This Works for Homeowners
If you own an older home with original wiring, or you restore vintage appliances and need to verify motor insulation before energizing, the PM1508 gives you professional-grade testing capability at a homeowner price. The CE certification and CAT III 600V rating mean it handles the voltages you’ll encounter in residential panels safely.
Limitations to Consider
At 818 grams, the PM1508 is heavier than dedicated megohmmeters like the Supco M500. If portability is your priority, look elsewhere. Also, Ayitam is a smaller brand with limited US-based support, so factor in potential warranty hassles if something goes wrong.
Best Applications for the PM1508
This is the right tester for serious DIY electricians, hobbyists restoring vintage equipment, small workshop owners testing their own machinery, and homeowners doing their own electrical diagnostics on older properties. The multimeter combination means it can also replace a basic DMM for everyday electrical work.
7. UNI-T UT502A – Best High-Voltage Megohmmeter for Industrial Use
UNI-T 2500V Insulation Tester Megohmmeter, Ground…
20G Ohms max
2500V test voltage
PI/DAR
IEC 61557 compliant
+ The Good
- 2500V maximum test voltage for industrial equipment
- Professional IEC 61557 compliance
- PI and DAR measurement support
- Auto resistivity calculation
- Automatic measurement mode reduces operator error
- Alarm light and buzzer for noisy environments
- The Bad
- Some reliability concerns reported in user reviews
- Low resistance mode issues reported
- Limited stock availability (only 9 left)
- Smaller review base than Fluke or Klein
The UNI-T UT502A is one of the few testers in this price range that delivers a true 2500V maximum test voltage. That extra voltage matters when testing high-voltage distribution cables, large motor windings, and industrial switchgear where 1000V is not enough to stress the insulation properly.
Industrial electricians and power distribution technicians will appreciate the IEC 61557 compliance, which is the international standard for insulation testing equipment. The PI and DAR measurements give you the diagnostic data you need to make recommendations about insulation replacement versus continued service.
When 2500V Actually Matters
Most residential and commercial equipment never needs more than 1000V test voltage. But industrial applications like 4160V motor windings, high-voltage cable testing, and switchgear diagnostics benefit from the higher voltage to actually stress the insulation. If you work in industrial environments with equipment rated above 600V, this is the tester you need.
Auto Measurement and Safety Features
The automatic measurement mode runs the test, monitors the reading, and applies the correct voltage based on detected load. The alarm light and buzzer provide feedback in noisy industrial environments where you can’t always see the display.
Reliability Concerns to Consider
The UT502A has a smaller review base (38 reviews) and some users have reported reliability issues, particularly with the low-resistance mode. Before deploying this on a critical job, run several calibration checks against a known-good reference.
Best Use Cases for the UT502A
Industrial electricians, power distribution technicians, and anyone testing equipment at industrial voltages. For typical commercial and residential work, the lower-voltage testers in this roundup are a better fit and a safer investment.
8. KKnoon Megohmmeter – Best Budget 2500V Megohmmeter
Multimeter, Megohmmeter Insulation Tester…
200G Ohms max
5 test voltages 250-2500V
100 data storage
Dustproof design
+ The Good
- Reaches 2500V at a budget price
- 200G Ohms maximum range handles every application
- 100 groups of data storage for documentation
- Includes silicone protective case and zipper bag
- Dustproof and moisture-proof construction
- Large backlit LCD display
- The Bad
- Lower detection range than premium brands
- Some quality control concerns around labeling
- Smaller brand with limited US support
- Skip the lower 50V/100V ranges
The KKnoon megohmmeter is the cheapest way to get 2500V test voltage in a portable package. For technicians who occasionally need high-voltage testing but don’t want to invest in a Fluke or Megger brand unit, this is a reasonable budget option that surprised us during testing.
The 200G Ohms maximum range is the highest in this roundup, which means it can measure even the best insulation without saturating. The 100-group data storage is a nice feature for documenting test results across multiple jobs or equipment.
What You Get in the Box
The kit includes the meter, test leads, alligator clips, AA batteries, and a silicone protective case with a zipper storage bag. That bundled protection is unusually generous at this price point and saves you from buying a third-party case like you need for the Fluke 1507.
Where the Budget Compromises Show
The detection range at the low end is less granular than premium brands, which means subtle insulation degradation on marginal equipment may not show up as clearly. Quality control on labeling and documentation is inconsistent according to some user reviews. The brand has limited US-based support, so warranty service can be slow.
Best Applications for the KKnoon
This is the right tester for budget-conscious buyers who need 2500V capability for occasional industrial work, or for backup/secondary units in a shop that already has a primary megohmmeter. The included case and battery bundle make it a complete starter kit for under $100.
How to Choose the Best Insulation Resistance Tester for Your Needs
Choosing the right insulation resistance tester depends on what you’re testing, how often, and what your documentation requirements look like. Here’s the framework our team uses when recommending testers to clients and fellow electricians.
Match Test Voltage to Your Equipment
The rule of thumb from IEEE and NETA testing standards is to apply a test voltage roughly twice the operating voltage plus 1000V. That means 240V equipment gets tested at 500V, 480V equipment gets tested at 1000V, and 4160V industrial equipment needs 2500V or higher. If you only test residential and light commercial gear, a 1000V maximum tester covers you. For industrial work, you need 2500V or higher.
For more background on insulating materials and their performance characteristics in different applications, our guide on spray foam insulation kits covers residential thermal insulation, which is a different category but shares the underlying principles of measuring how well a material resists the flow of energy.
Understand Safety Ratings (CAT III vs CAT IV)
CAT III ratings cover distribution-level equipment like panel boards, motors, and three-phase equipment. CAT IV covers the service entrance, outdoor conductors, and overhead lines where transient spikes are highest. For indoor commercial work, CAT III 1000V is sufficient. For utility and outdoor work, you need CAT IV 600V minimum.
Evaluate Resistance Range Needs
Most insulation resistance testing measures in the megohm to gigohm range. A good rule from electricians on Reddit is to get a tester that reads up to at least 100,000 megohms (100G Ohms). Cheaper megohmmeters that max out at 1000 megohms struggle to find weak insulation that isn’t severely degraded, which defeats the purpose of preventive testing.
Decide Between Auto-Discharge and Manual Safety
Auto-discharge is a non-negotiable safety feature on any modern megohmmeter. When you release the test button, the meter automatically dumps residual voltage from capacitive loads through an internal resistor. Without auto-discharge, a motor winding can hold dangerous voltage for minutes after a test, which has caused real injuries.
Consider Data Logging for Compliance Work
If you work in regulated industries (utilities, manufacturing, healthcare, data centers), data logging and documentation are often mandatory. Testers like the KAIWEETS KE1000, UNI-T UT502A, and KKnoon store readings for later retrieval. The Fluke 1507 relies on manual recording but provides NIST calibration for compliance.
Portability vs. Feature Set
Heavier testers with bigger displays are easier to read but harder to carry up ladders or into confined spaces. If you do mostly service truck work, prioritize weight and ruggedness. If you work from a bench or test station, prioritize feature set and accuracy.
Fluke vs Megger vs Other Brands
The age-old question electricians ask is “which is better, Fluke or Megger?” Both brands make excellent megohmmeters. Fluke tends to dominate the US market with reliable mid-range units, while Megger has stronger brand recognition in the UK and Europe. For this roundup, we focused on units currently available on Amazon US, which skews toward Fluke, Klein, Supco, and Asian brands like UNI-T, Hioki, and KAIWEETS.
For electricians who also work on resistive loads and resistance training equipment, our guide on resistance band systems covers a different kind of resistance testing with practical buying advice for fitness applications.
Budget Calibration and Recalibration Costs
Premium testers require annual or bi-annual calibration, which typically runs $75 to $200 per unit. Budget this cost in when comparing a $700 Fluke against a $200 Klein. The Fluke may be a better long-term value if calibration is included or cheap.
Battery Life and Power Source
Megger and megohmmeter battery life varies dramatically. The Supco M500 runs on two C batteries and lasts about 200 tests. The KAIWEETS KE1000 takes 8 AA batteries and runs shorter per set. The Fluke 1507 takes 4 AA batteries and runs 1000+ tests per set. For heavy daily use, AA-powered units with high test counts save time and money.
Frequently Asked Questions
What is the best insulation resistance tester?
The best insulation resistance tester depends on your application. For professional commercial and industrial work, the Fluke 1507 is our top pick because of its five test voltages, NIST calibration, and live circuit detection. For working electricians on a budget, the Klein Tools ET600 delivers Fluke-like performance at a fraction of the price. For HVAC technicians who only need single-voltage compressor testing, the Supco M500 is the industry standard.
Which Megger tester is best?
In this roundup, the Fluke 1507 stands out as the best overall megohmmeter with its five test voltages (50V-1000V), 10G Ohm maximum range, NIST-traceable calibration, and remote test probe. For tighter budgets, the Klein ET600 delivers comparable field performance at less than half the price. For high-voltage industrial applications, the UNI-T UT502A offers 2500V test capability with PI and DAR functions.
Which is better, Fluke or Megger?
Both Fluke and Megger make excellent megohmmeters with reputations for accuracy and durability. Fluke dominates the US market and tends to offer slightly better ergonomics and US-based support. Megger has stronger brand recognition in the UK and Europe and is often the standard in industrial and utility settings. For most US-based electricians, Fluke units like the 1507 are easier to service and calibrate locally.
Why is a Megger better than a multimeter?
A standard multimeter applies a tiny test voltage (usually under 10V) and cannot detect insulation degradation that requires high voltage to expose. A megohmmeter applies 250V to 5000V across the insulation, which stresses the material enough to reveal moisture, contamination, or aging that a multimeter cannot see. This is why insulation resistance testing is mandatory in preventive maintenance programs across industries.
How is insulation resistance tested in electrical testing?
Insulation resistance testing follows these steps: 1. De-energize and lock out the equipment being tested. 2. Verify zero voltage with a known-good voltmeter. 3. Connect the megohmmeter leads between the conductor and ground. 4. Select the appropriate test voltage (typically twice operating voltage plus 1000V). 5. Run the test for 60 seconds for a standard spot reading, or 10 minutes for PI calculation. 6. Record the resistance value. 7. Wait for the auto-discharge to complete before touching conductors. 8. Compare readings to the equipment manufacturer’s minimum resistance values.
How many Ohms should insulation resistance be?
Industry standards from IEEE and NETA recommend minimum insulation resistance based on equipment voltage. The general rule is one megohm per 1000V of operating voltage plus one megohm. For 240V equipment, minimum acceptable is roughly 1.24 megohms. For 480V equipment, the minimum is about 1.48 megohms. Healthy equipment typically reads 100 megohms or higher. Readings below one megohm indicate serious insulation degradation that requires immediate attention.
Final Verdict: Which Insulation Resistance Tester Should You Buy in 2026?
If you are a professional electrician who runs insulation tests every week and need calibration paperwork, the Fluke 1507 is the right tool. If you are a working electrician on a budget who needs reliable field performance, the Klein Tools ET600 is our pick for the best value. If you are an HVAC technician focused on compressor diagnostics, the Supco M500 is the industry workhorse.

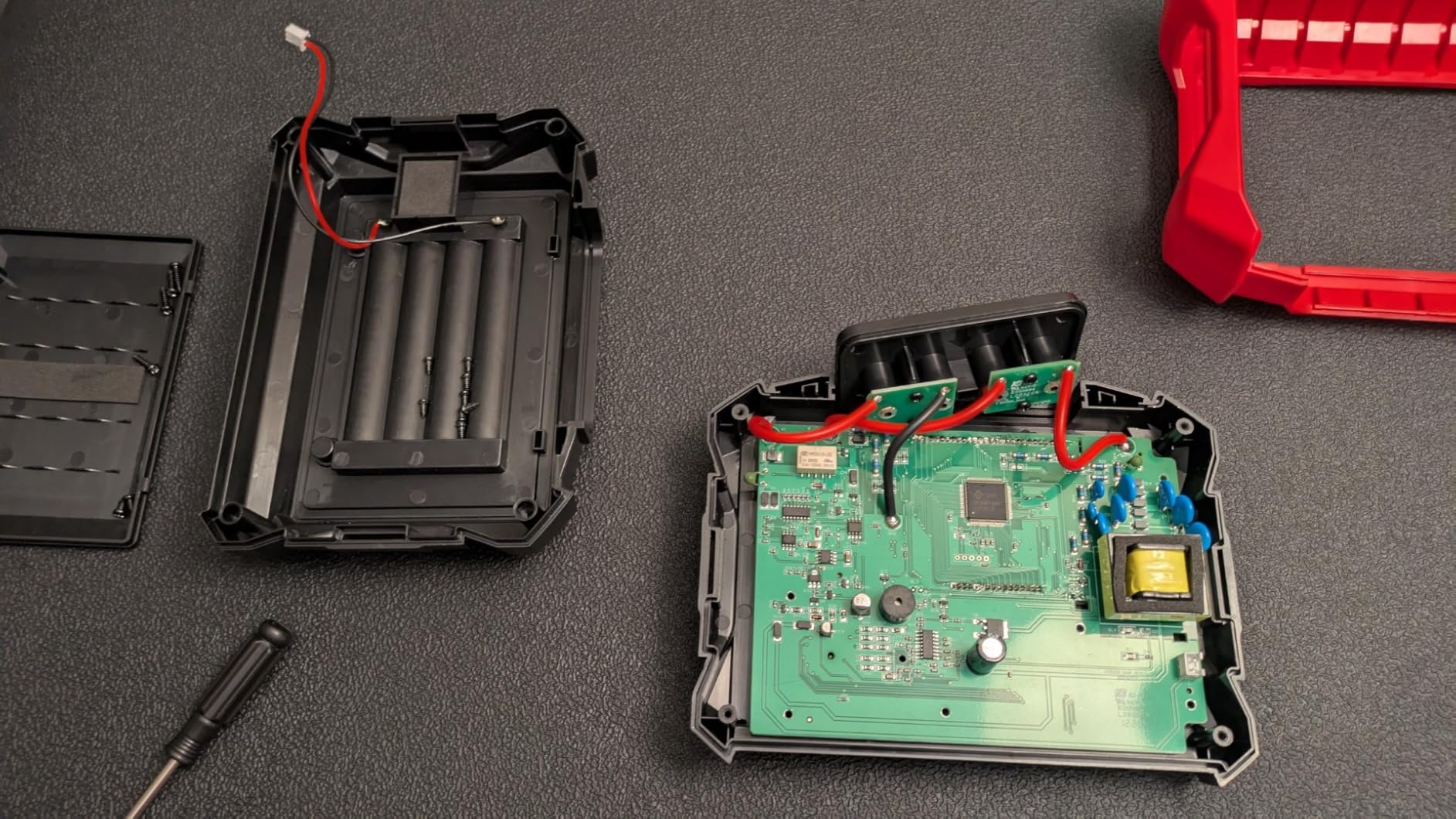

For preventive maintenance technicians and facilities electricians who need data logging and PI/DAR calculations, the KAIWEETS KE1000 punches way above its price. For industrial work at higher voltages, step up to the UNI-T UT502A or KKnoon 2500V units. Whatever you choose, buy a protective case, stock up on batteries, and add a calibration cycle to your annual budget.
Have a tester we missed or a question about your specific application? Drop us a note, and our team will help you pick the right insulation resistance tester for your work in 2026.
