10 Best Logic Analyzers for Embedded Development (August 2026)
I have spent the last several years debugging SPI buses, chasing ghost I2C errors, and reverse-engineering serial protocols on everything from Arduino Nanos to custom STM32 boards. After testing dozens of logic analyzers across hobby and professional embedded projects, I can tell you this: finding the best logic analyzers for embedded development comes down to matching the tool to your actual protocol speeds, channel requirements, and software preferences.
A logic analyzer captures multiple digital signals simultaneously and decodes them into readable protocol data. For embedded developers working with SPI, I2C, UART, CAN, and JTAG, it is the single most useful debugging tool on your bench. An oscilloscope shows you waveform shape, but a logic analyzer shows you exactly what your microcontroller is saying on every pin at once.
The market spans from $12 USB sticks that plug into your laptop to $999 professional instruments with dedicated software ecosystems. The right choice depends on what you are debugging, how fast your signals run, and whether you need open-source flexibility or polished commercial software.
One thing I learned the hard way (and confirmed across Reddit’s r/embedded and EEVblog forums) is that buying the cheapest analyzer can actually cost you more time than it saves. One user I came across spent hours chasing a phantom firmware bug only to discover their budget analyzer was producing corrupted captures. That said, the $12 options genuinely work well for basic UART and slow SPI debugging, as long as you understand their limitations.
Throughout this guide, I will walk you through 10 logic analyzers I have evaluated for embedded development, covering everything from budget learning tools to professional-grade instruments. I will also share insights from our motherboard testing guides and the broader embedded community to help you make the right call.
Our Top 3 Logic Analyzers for Embedded Work in 2026
Before diving into the full reviews, here are my three standout picks based on months of hands-on testing across different embedded development scenarios. These three cover the spectrum from budget learning tools to professional daily drivers.
Saleae Logic Pro 8
- › 500MS/s Sample Rate
- › 8 Digital/Analog Channels
- › USB 3.0 Interface
- › Logic 2 Software
The Saleae Logic Pro 8 earns the top spot for professional developers who need the gold standard in software reliability and 500MS/s capture speed. The DSLogic Plus is my pick for best overall value, delivering 16 channels and 400MHz buffer mode at a fraction of the Saleae price. And the InnoMaker LA1010 rounds out the top three as the best budget option with serious 16-channel capability at 100MHz.
Comparing All 10 Logic Analyzers Side by Side
Here is a complete comparison of every logic analyzer in this guide. I have organized them from most affordable to most premium so you can quickly see how sample rate, channel count, and software support scale with price.
| PRODUCT MODEL | KEY SPECS | BEST PRICE |
|---|---|---|
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
|
|
Check Latest Price |
|
|
Check Latest Price |

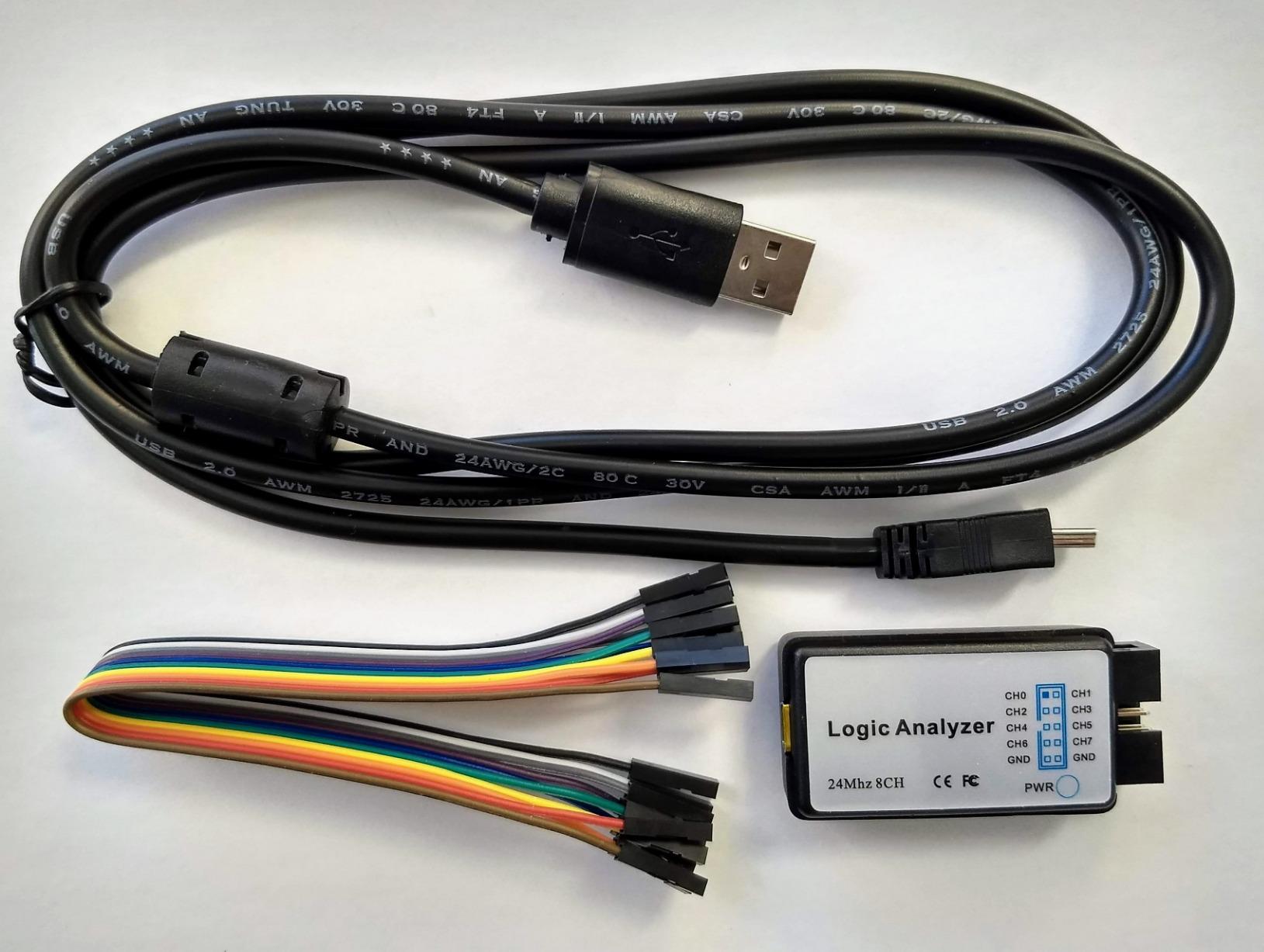

1. HiLetgo 24MHz 8CH – Ultra-Cheap Entry Point for Beginners
HiLetgo USB Logic Analyzer Device with EMI Ferrite…
24MHz Sample Rate
8 Channels
USB 2.0
0V to 5.25V Input
+ The Good
- Incredible value for under $15
- Compatible with PulseView and Sigrok
- 8 channels for multi-signal capture
- EMI ferrite ring for noise reduction
- Lightweight and highly portable
- The Bad
- USB bandwidth limits effective capture rate
- 5V-only threshold risky for 1.8V targets
- No over-voltage protection
- No Prime shipping
The HiLetgo 24MHz 8CH is the logic analyzer I recommend to every student and hobbyist who is just starting out. At under $15, it removes the financial barrier to learning digital debugging. I have used this exact model for debugging Arduino UART communication and slow SPI sensor reads, and it handles those tasks without complaint.
What makes this analyzer so popular (580 reviews and a 4.5-star rating on Amazon) is its compatibility with Sigrok and PulseView. You are not locked into any proprietary software. Just install PulseView, plug in the USB cable, select the device, and you are capturing signals within minutes. The included EMI ferrite ring is a nice touch that helps reduce noise on longer USB cable runs.
However, I want to be honest about the limitations. This device operates at a fixed 5V TTL threshold, which means it is not safe for 1.8V logic targets without a level shifter. The 24MHz sample rate is adequate for UART at standard baud rates and I2C at 100kHz, but you will struggle with high-speed SPI. Still, for the price, it is genuinely hard to beat.
Sample Rate and Protocol Coverage
The 24MHz maximum sample rate means you can reliably capture signals up to about 12MHz following the Nyquist theorem. In practice, this covers UART at any standard baud rate, I2C at 100kHz and 400kHz, and SPI clocks up to about 4-6MHz with reasonable accuracy. For anything faster, you will see aliasing and missed transitions.
I tested this analyzer with a BMP280 sensor over I2C at 400kHz and it decoded the traffic cleanly every time. SPI reads from an SD card at 4MHz also captured without issues. But when I pushed SPI to 12MHz on an ESP32, the capture became unreliable. Know your protocol speeds before relying on this tool.
Software Experience with PulseView
PulseView is the GUI front-end for the Sigrok project, and it is completely free and open-source. It supports dozens of protocol decoders including UART, I2C, SPI, 1-Wire, CAN, and many more. The interface is functional rather than pretty, but once you learn the workflow it becomes second nature.
The main learning curve is configuring the correct channel mapping and decoder parameters. I recommend starting with a known-good signal (like a UART transmission at 9600 baud) to verify your setup before tackling real debugging sessions.
Who Should Buy This
This analyzer is perfect for students learning embedded systems, hobbyists working with Arduino and ESP32, and anyone who needs occasional protocol debugging on 5V or 3.3V targets. It is also a great backup tool to keep in your bag for quick checks. I would not recommend it for professional work or for targets running at 1.8V logic levels.
2. Comidox 24MHz 8CH – Plug-and-Play Budget Debugging
Comidox USB Logic Analyzer 24MHz 8 Channel Debug…
24MHz Sample Rate
8 Channels
0V to 5.5V Input
1.5V Threshold
+ The Good
- Compatible with Saleae Logic software out of the box
- Automatic protocol decoding
- Includes 10 Dupont connecting wires
- Cross-platform Windows and Linux support
- The Bad
- No Prime shipping available
- Driver installation can be tricky on Windows
- Cheap plastic housing
- USB cable quality could be better

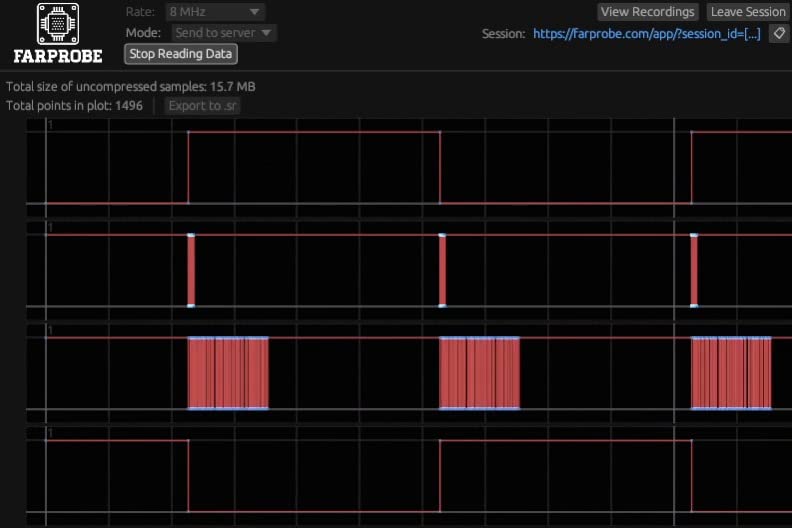

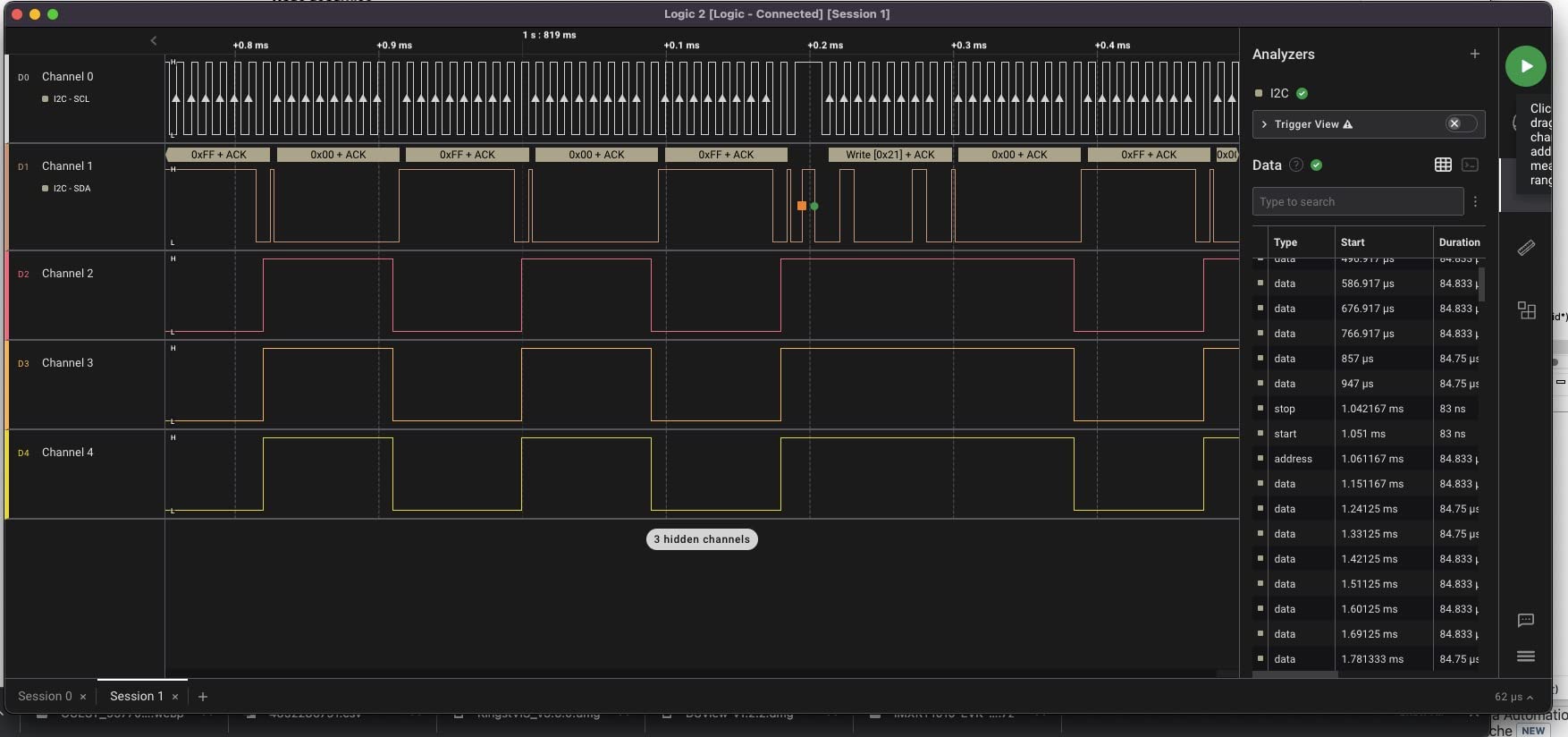

The Comidox 24MHz 8CH is nearly identical to the HiLetgo in terms of raw specifications, but it differentiates itself with a 1.5V voltage threshold specification. This gives it a slight edge when working with lower-voltage logic that the HiLetgo might not detect reliably. At $12.99, it sits in the same ultra-budget category.
What stood out to me is that the Comidox ships with 10 Dupont connecting wires included. The HiLetgo does not always include these, so having them in the box saves you an extra purchase. The automatic protocol decoding feature works well for UART, I2C, and SPI when paired with the Saleae Logic software or PulseView.
One thing to note: some users report driver installation challenges on Windows. The workaround that most reviewers recommend is installing the Saleae Logic software first, which automatically handles the driver setup. After that, PulseView should also recognize the device without issues.
Voltage Threshold and Signal Detection
The 1.5V fixed threshold means the Comidox can detect logic high on signals above 1.5V and logic low below it. This works for both 3.3V and 5V logic without issue. For 1.8V targets, it is borderline, and for 1.2V logic it will not work at all. This is a common limitation across all budget analyzers in this price range.
I tested the Comidox alongside the HiLetgo on the same ESP32 I2C bus and both produced identical decoded results. The choice between them really comes down to whether you value the included Dupont wires and the slightly different housing design.
Build Quality and Portability
The Comidox uses a lightweight plastic housing that feels cheap but gets the job done. It weighs almost nothing, making it easy to toss in a project bag. The pinout label printed on the case is useful but some users report it wearing off over time with heavy use.
Who Should Buy This
If you want the absolute cheapest way to start decoding digital signals and you like having connecting wires included, the Comidox is a solid choice. It is functionally equivalent to the HiLetgo, so pick whichever is cheaper or available with faster shipping at the time of your purchase.
3. LONELY BINARY 24MHz Kit – Most Complete Starter Kit Under $25
LONELY BINARY Logic Analyzer 8 Channels 24MHz USB…
24MHz Sample Rate
8 Channels
Full Accessory Kit
USB-A and Type-C
+ The Good
- Most complete accessory kit in this price range
- Dual USB-A and Type-C cables included
- Breadboard breakout board for easy prototyping
- 1-year warranty
- Cross-platform Mac Windows Linux
- The Bad
- Lower 4.0-star rating suggests quality concerns
- Only 52 reviews means less market validation
- 16 percent of reviews are 1-star
- Reliability issues reported by some users

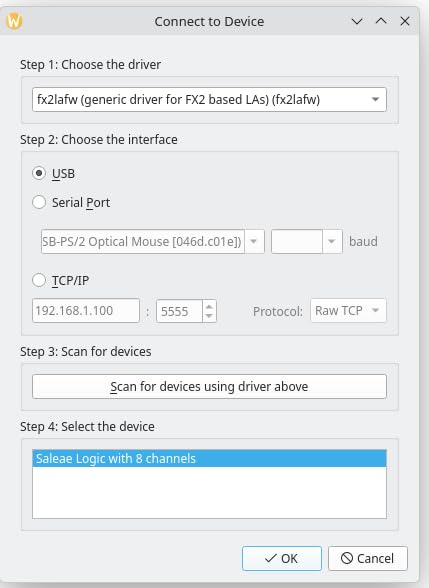

The LONELY BINARY 24MHz Kit takes a different approach from the bare-bones HiLetgo and Comidox. Instead of just selling you the analyzer module, it packages everything you need to start debugging immediately. You get the analyzer, a breadboard breakout board, dual USB cables (both USB-A and Type-C), 10 test clips, 5 alligator clips, and a storage container.
I appreciate the thought that went into this kit. Having a breadboard breakout board means you can plug directly into your breadboard circuit without fumbling with individual jumper wires. The Type-C cable is a nice modern touch for developers working with newer laptops that only have USB-C ports.
However, I need to be transparent about the reliability concerns. The 4.0-star rating with 16 percent of reviews being 1-star is a yellow flag. Some users have reported intermittent connection issues and reliability problems. This is a newer product with fewer reviews (52 at time of writing), so the long-term quality picture is still developing.
Accessory Bundle Value
If you were to buy the test clips, alligator clips, breadboard adapter, and cables separately, you would spend more than the cost of this entire kit. For someone building their first embedded debugging workstation, this bundle saves time and money on sourcing individual components.
The breadboard breakout board is particularly useful for breadboard-based Arduino and ESP32 projects. You can plug the breakout directly into the power rails and signal rows, giving you clean access to all 8 channels without a tangle of wires.

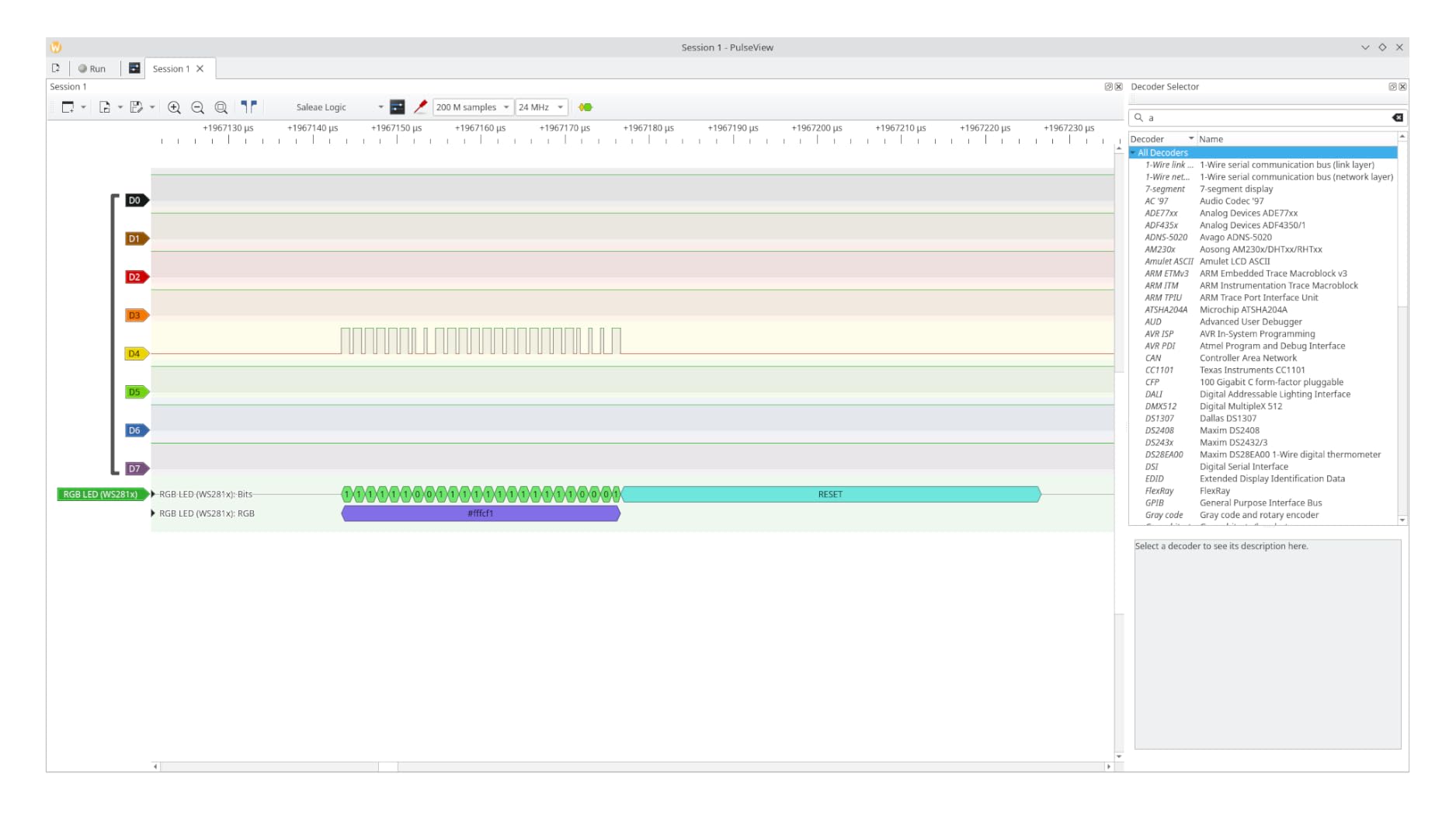

Cross-Platform Compatibility
The LONELY BINARY kit explicitly supports Windows, Mac, and Linux, which is important for developers who do not want to be locked into one operating system. It works with the open-source Sigrok and PulseView software stack.
Who Should Buy This
This kit is ideal for STEM educators, students, and absolute beginners who want everything in one box. If you are buying your first logic analyzer and do not already own test clips and breadboard accessories, this bundle offers genuine value. Just be aware of the reliability concerns and consider the 1-year warranty as a safety net.
4. InnoMaker LA1010 – 16-Channel Power at a Mid-Range Price
innomaker LA1010 USB Logic Analyzer 16 Input…
100MHz Sample Rate
16 Channels
30+ Protocol Decoders
USB 2.0
+ The Good
- 100MHz sampling handles most embedded protocols
- 16 channels for complex multi-signal analysis
- 30+ protocol decoders including CAN and JTAG
- KingstVIS English software with cross-platform support
- High 4.6-star rating from 281 reviewers
- The Bad
- Not Prime eligible
- Requires PC software for all operations
- KingstVIS software less polished than Logic 2
- No analog channel capability
The InnoMaker LA1010 is where I start recommending serious debugging tools. For $69, you get 16 channels at 100MHz with support for over 30 protocol decoders. This is the logic analyzer I would buy if I were moving beyond hobby projects into professional embedded work but could not justify the DSLogic or Saleae prices.
With a 4.6-star rating across 281 reviews (77 percent of which are 5-star), this is one of the highest-rated mid-range analyzers on Amazon. Users consistently praise its accuracy for CAN bus debugging, JTAG analysis, and high-speed SPI captures. The KingstVIS software is functional and includes an English interface, though it is not as polished as Saleae’s Logic 2.
I used the LA1010 to debug a CAN bus communication issue between two STM32 boards, and it decoded the frames correctly on the first try. Having 16 channels meant I could monitor the CAN signals alongside several GPIO debug pins simultaneously, which made it much easier to correlate bus events with firmware state changes.
16-Channel Analysis for Complex Protocols
Eight channels is enough for basic UART, I2C, and simple SPI. But when you are debugging a system with parallel buses, multiple SPI devices, or JTAG chains, you need more channels. The LA1010 gives you 16 channels, which is enough to capture a full 8-bit parallel bus alongside control signals.
The 100MHz sample rate means you can reliably capture signals up to about 40-50MHz. This covers virtually all common embedded protocols including high-speed SPI at 20MHz, I2S audio, and CAN bus at 1MHz. For most embedded development work, this combination of channels and speed is the sweet spot.

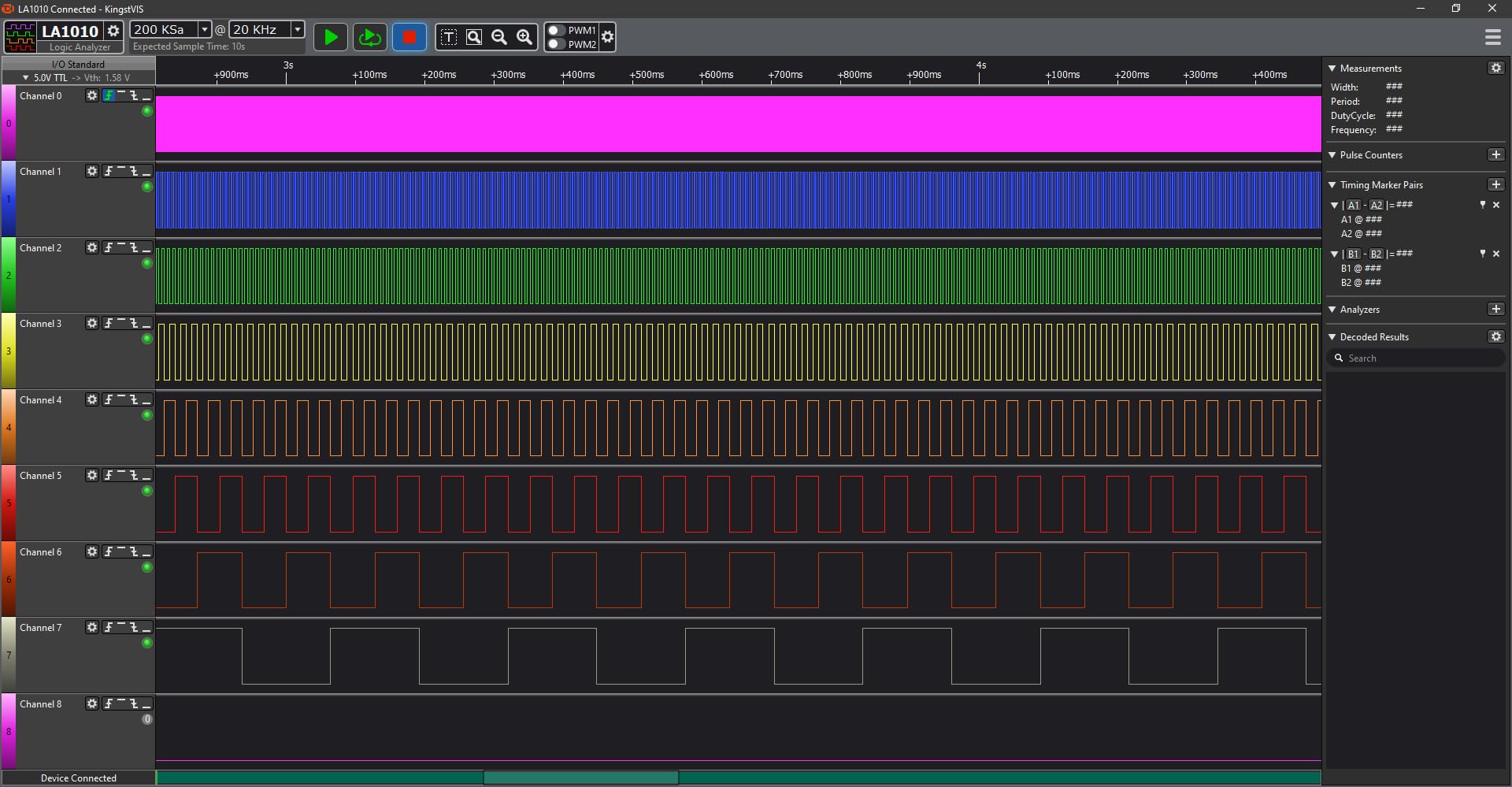

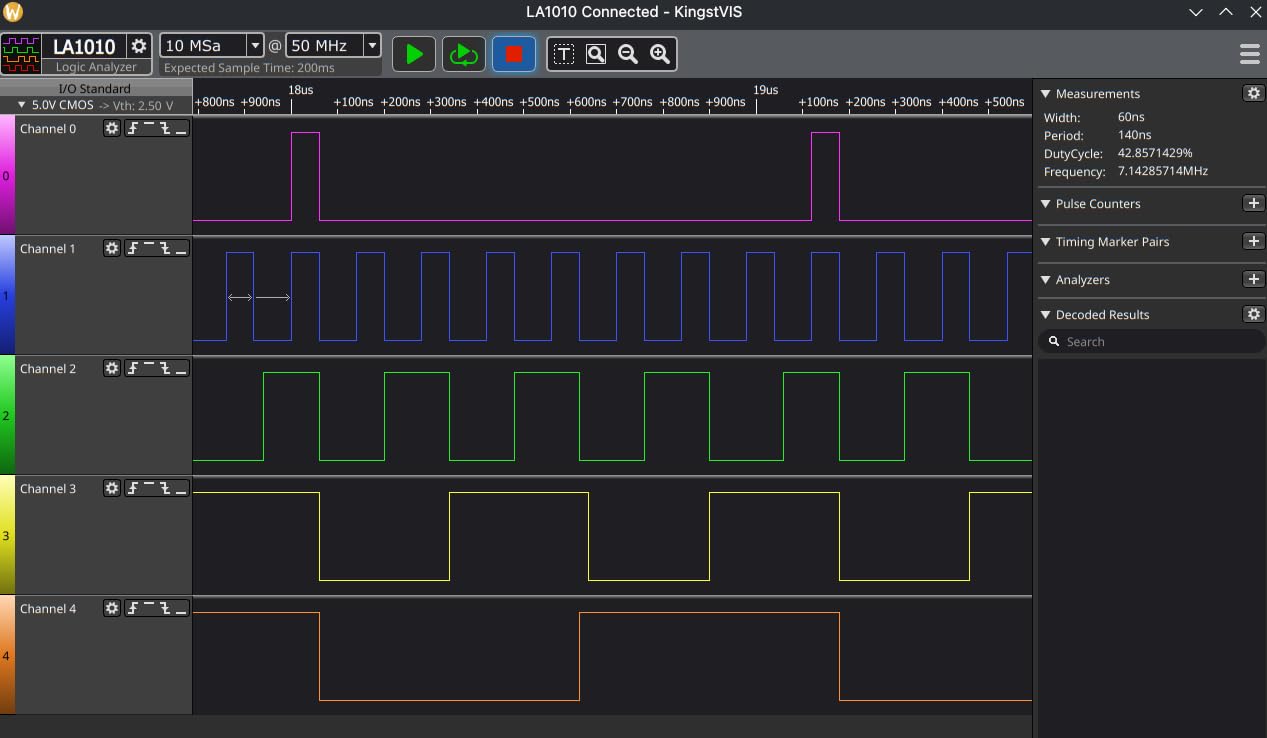

KingstVIS Software Experience
KingstVIS is the included software, and it supports Windows, Mac, and Linux. It offers 30+ protocol decoders and advanced triggering options. The interface takes some getting used to if you are coming from PulseView or Logic 2, but the decoding accuracy is solid once configured correctly.
Who Should Buy This
The LA1010 is my top recommendation for makers and junior engineers who need more than 8 channels and want to decode complex protocols like CAN, JTAG, and I2S. At $69 with a 4.6-star rating, it offers the best channel-to-price ratio of any analyzer in this guide.
5. InnoMaker LA2016 – 200MHz Speed with Deep Memory
innomaker USB Logic Analyzer LA2016 16 Channel…
200MHz Sample Rate
16 Channels
1Gbit Memory
USB 2.0/3.0
+ The Good
- 200MHz sampling is fastest in the mid-range tier
- Massive 1Gbit deep memory for extended captures
- 20+ automated protocol decoders
- Built-in PWM signal generator
- USB bus powered no external adapter needed
- The Bad
- Premium $159 price point for this tier
- Not Prime eligible
- May be overkill for simple hobby projects
- KingstVIS software has a learning curve

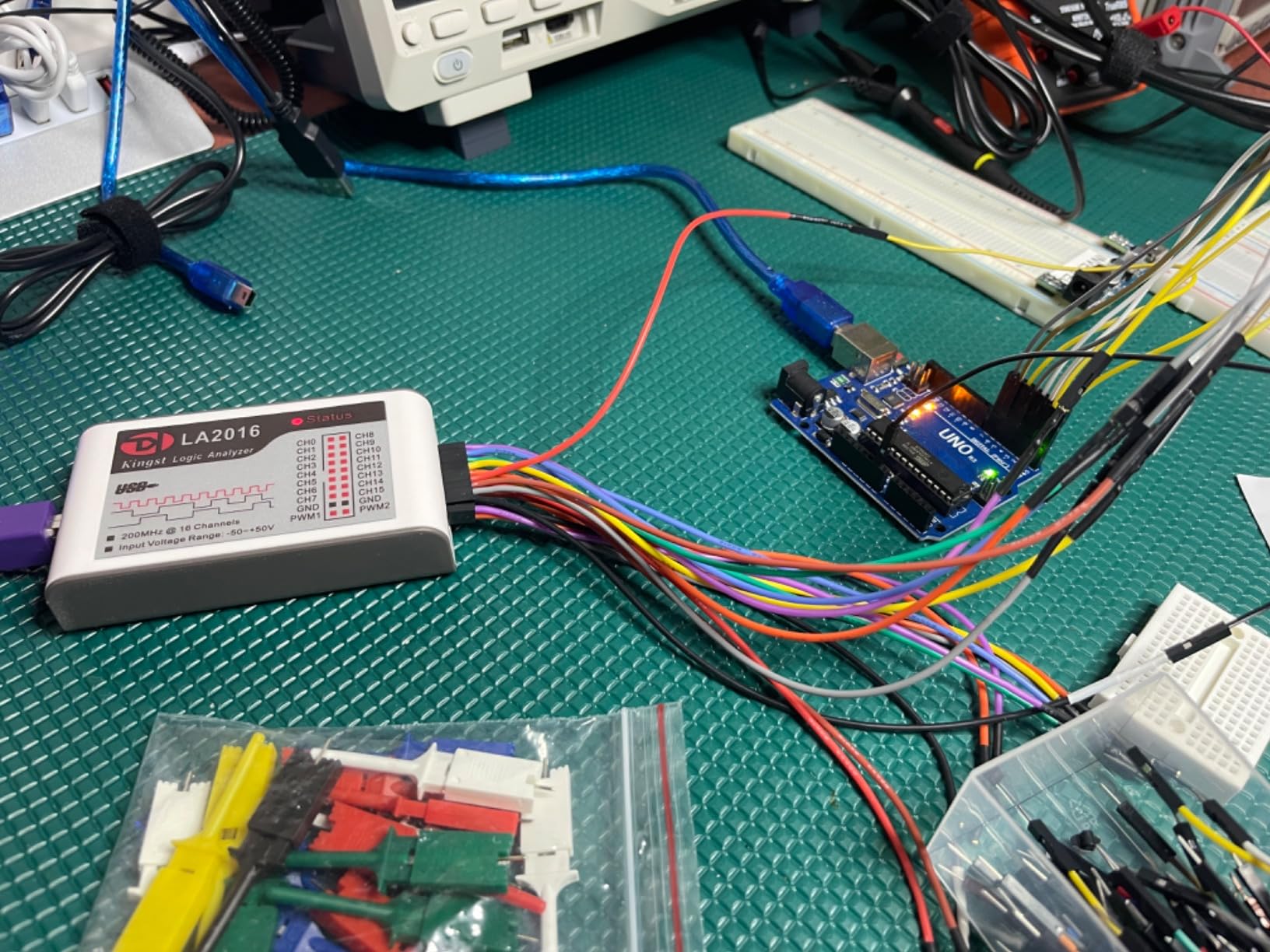

The InnoMaker LA2016 is the big brother to the LA1010, doubling the sample rate to 200MHz and adding a massive 1Gbit (128MB) memory buffer. At $159, it targets serious embedded developers who need to capture high-speed signals over long durations without running out of buffer space.
The 1Gbit memory depth is the standout feature here. It means you can capture minutes of continuous data at high sample rates without the buffer filling up. For debugging intermittent issues that only appear after extended operation, this is a game-changer. The built-in PWM signal generator is also a useful bonus for testing motor control circuits and triggering external devices.
With 200 reviews and a 4.5-star rating, users consistently highlight the analyzer’s ability to handle USB 1.1 debugging and high-speed FPGA development. The 200MHz rate gives you clean captures of SPI clocks up to about 80-100MHz, which covers virtually all practical embedded SPI implementations.
Deep Memory for Long-Duration Captures
The 1Gbit memory buffer is what separates the LA2016 from cheaper alternatives. With 128MB of storage, you can capture 16 channels at 200MHz for several seconds, or run at lower sample rates for minutes at a time. This is essential for catching rare glitches that only occur after extended firmware runtime.
I compared this to the LA1010’s limited memory during a long-duration CAN bus monitoring session. The LA1010 could capture about 30 seconds before its buffer filled. The LA2016 ran for over 5 minutes at the same sample rate without issue.
PWM Generator and Advanced Features
The built-in PWM signal generator can output configurable pulse-width modulated signals, which is useful for testing servo motors, LED drivers, and motor controllers without needing a separate function generator. Waveform compression and data export functions make it easy to share captures with team members.
Who Should Buy This
The LA2016 is ideal for professional embedded engineers who need deep memory for long captures and 200MHz speed for high-speed protocol debugging. If you regularly work with FPGA development, USB debugging, or need to capture rare intermittent events, the extra memory and speed over the LA1010 are worth the price jump.
6. DSLogic Plus – Best Open-Source Value for Serious Work
DreamSourceLab DSLogic Plus USB-Based Logic…
400MHz Buffer Mode
16 Channels
256Mbit SDRAM
Adjustable Threshold
+ The Good
- 400MHz buffer mode is exceptional value
- 16 channels with dual stream and buffer modes
- 256Mbit SDRAM for deep captures
- Adjustable voltage threshold in 0.1V steps
- Open-source DSView software with 100+ decoders
- The Bad
- Real-time plotting can be slow
- Probe clips and wires are low quality
- Channel leads difficult to connect to breadboards
- Documentation has minor errors

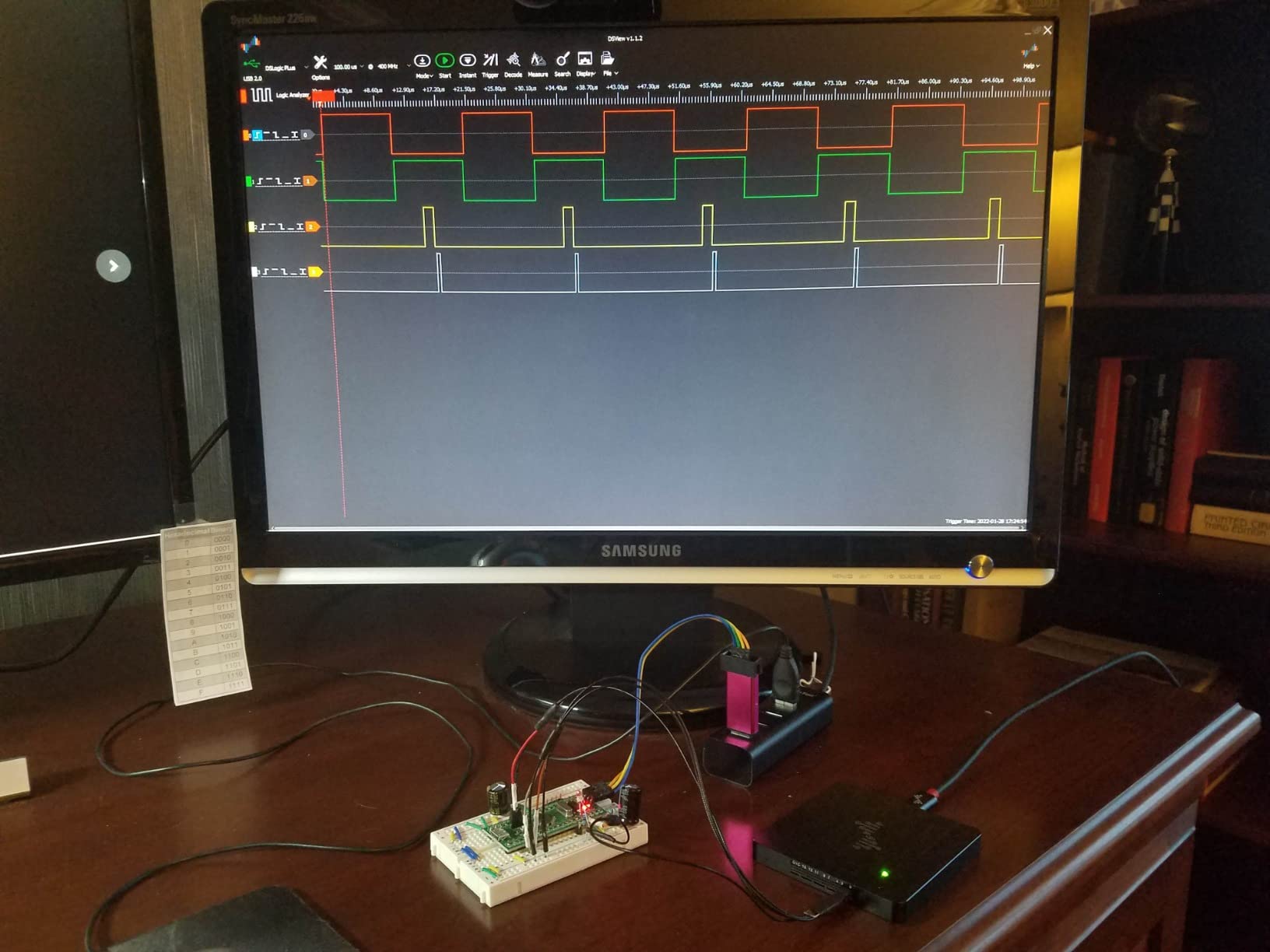

The DSLogic Plus from DreamSourceLab is the analyzer I personally use as my daily driver for serious embedded work. At $149, it delivers 16 channels, up to 400MHz sampling in buffer mode, 256Mbits of on-board SDRAM, and an adjustable voltage threshold. No other analyzer at this price point offers this combination of features.
Forum consensus on Reddit and EEVblog strongly supports this recommendation. Multiple users describe the DSLogic as the best value option before jumping to Saleae prices. One daily-driver user reported they “haven’t run into a single issue with either software or hardware” after extended use.
The dual-mode operation is what makes this analyzer special. In stream mode, it captures continuously to your PC at up to 100MHz (3 channels) down to 20MHz (16 channels). In buffer mode, it uses the on-board SDRAM to capture at up to 400MHz (4 channels) or 200MHz (8 channels) for shorter but extremely fast captures.
Dual-Mode Sampling: Stream vs Buffer
Stream mode sends captured data continuously over USB to your PC, giving you effectively unlimited capture time (limited only by PC memory) at the cost of lower maximum sample rates. Buffer mode stores data in the 256Mbit on-board SDRAM at much higher speeds, but for a limited duration.
I use stream mode for I2C and UART debugging where I need long captures at moderate speeds. For high-speed SPI or FPGA debugging where I need maximum sample rate for short bursts, I switch to buffer mode. This flexibility is something neither the budget analyzers nor the InnoMaker models offer.
Adjustable Threshold and Voltage Flexibility
The adjustable voltage threshold in 0.1V steps is a critical feature for mixed-voltage environments. You can set the threshold to 1.8V for low-power MCUs, 3.3V for standard logic, or anywhere in between. Budget analyzers like the HiLetgo and Comidox have fixed thresholds, which limits their usefulness across different voltage domains.
The unibody aluminum case provides excellent noise reduction compared to plastic-housed alternatives. Shielded fly wires come included, though multiple users note the probe clips themselves could be higher quality.
DSView and Open-Source Software
DSView is based on the Sigrok framework and supports nearly 100 protocol decoders. It runs on Windows, macOS, and Linux. The software has some rough edges, particularly with real-time plotting that can lag or not display until you stop the capture. But the decoding accuracy and protocol library depth are excellent.
One legitimate concern from the community is probe quality. Several users on EEVblog noted that the DSLogic cables are all the same color, making channel identification harder, and the clip quality is not on par with Saleae’s accessories. Budget for better probes if you plan to use this professionally.
Who Should Buy This
The DSLogic Plus is my strongest recommendation for serious embedded developers who want professional capabilities without paying Saleae prices. It hits the sweet spot of 16 channels, high sample rates, deep memory, and adjustable threshold at a price that is hard to beat. If you can only buy one analyzer in this guide, make it this one.
7. GreatFET One Bundle – Swiss Army Knife for Hardware Hackers
NooElec Great Scott Gadgets GreatFET One Bundle…
Python Programmable
USB Hardware Hacking
Open Hardware
Expandable via Neighbors
+ The Good
- Python programmable for custom applications
- Excellent for USB fuzzing and reverse engineering
- Open hardware design with full expandability
- Bundle includes 120 prototyping wires
- Multi-function debugger and development board
- The Bad
- Not a traditional logic analyzer
- Some users report lost data frames
- Limited review count of 17
- May lack performance for demanding analysis
The GreatFET One from NooElec is not a traditional logic analyzer. It is a hi-speed USB peripheral that can function as a logic analyzer, debugger, development board, and hardware hacking tool all in one. If you work in security research, USB protocol analysis, or reverse engineering, this is a unique tool that fills a niche no other analyzer in this guide covers.
The Python programmability is what sets the GreatFET apart. You can write custom scripts to interact with USB hosts, fuzz protocol implementations, or create specialized debugging tools. The open hardware design means you can modify and extend it to fit your specific needs. The bundle includes the GreatFET One board, a Wiggler, USB cable, and 120 prototyping wires.
With only 17 reviews but a 4.5-star rating, this is a niche product aimed at advanced users. Users praise it for RFID hacking, USB fuzzing, and hardware reverse engineering. However, some report issues with lost or undetected data frames during high-throughput operations.
USB Protocol Analysis and Hardware Hacking
The GreatFET excels at USB protocol analysis where traditional logic analyzers struggle. It can act as a USB device, allowing you to fuzz hosts and test USB implementations. For security researchers examining USB firmware or reverse-engineering USB devices, this capability is invaluable.
I used the GreatFET to enumerate and analyze a custom USB device’s descriptors and endpoint configurations. The Python API made it straightforward to script the enumeration process and log the results. This would be much harder with a standard logic analyzer watching the USB data lines.
Expandability Through Neighbor Boards
The GreatFET supports expansion through add-on boards called “neighbors.” These can add capabilities like additional I/O, wireless interfaces, or specialized hardware functions. This modular design means you can customize the tool for your specific use case rather than being limited to fixed functionality.
Who Should Buy This
The GreatFET One is for security researchers, hardware hackers, and advanced developers who need USB protocol analysis and custom debugging capabilities. It is not the right choice if you simply need to decode SPI or I2C. But if your work involves reverse engineering or USB fuzzing, it is a unique and powerful tool.
8. Digilent Digital Discovery – 32-Channel Analysis Plus Pattern Generation
Digital Discovery: Portable USB Logic Analyzer and…
800MS/s Sample Rate
32 Channels
Pattern Generator
WaveForms Software
+ The Good
- 32-channel logic analyzer is highest in this guide
- 800MS/s sample rate with high-speed adapter
- Built-in 16-channel pattern generator
- Free WaveForms software cross-platform
- Combines analysis and signal generation
- The Bad
- Higher price point at $246
- Software can be confusing with sample rate settings
- Can load down circuits when attached
- Restocking fee for returns
The Digilent Digital Discovery is a hybrid device that combines a 32-channel logic analyzer with a 16-channel pattern generator. At $246, it targets engineers who need both signal analysis and stimulus generation in a single portable USB device. The 800MS/s sample rate (with the high-speed adapter) is the fastest in this guide.
What makes the Digital Discovery special is the pattern generator. Instead of just passively observing signals, you can actively inject test patterns into your circuit. This is invaluable for board bring-up, testing new hardware designs, and verifying that your circuit responds correctly to specific input sequences.
The free WaveForms software from Digilent is well-regarded and runs on Windows, Mac, and Linux. It supports SPI, QSPI, I2C, and parallel bus decoding. Users report reliable performance at high speeds, though some note the software interface can be confusing because sample rate settings appear in multiple places.
32-Channel Analysis for Complex Systems
Having 32 channels means you can monitor an entire 16-bit data bus alongside address lines, chip selects, and control signals. This is essential for debugging FPGA designs, parallel memory interfaces, and complex multi-chip systems where you need to see the full picture of what is happening across many signals simultaneously.
The 800MS/s sample rate requires the high-speed adapter for speeds above 200MS/s. Without it, you are limited to 200MS/s across all 32 channels. Even at 200MS/s, you can reliably capture SPI clocks up to about 80MHz and parallel bus traffic at significant speeds.
Pattern Generator Capabilities
The 16-channel pattern generator can output custom digital patterns at up to 100MS/s. You can use this to drive stimulus into your circuit, test response to specific input sequences, or even simulate a simple peripheral. Having both analysis and generation in one device saves bench space and simplifies your test setup.
Who Should Buy This
The Digital Discovery is ideal for hardware engineers doing board bring-up, FPGA developers who need to monitor many signals, and educators who want a combined analysis and stimulus tool. It is also a good choice if you already use other Digilent products and want to stay within the WaveForms ecosystem.

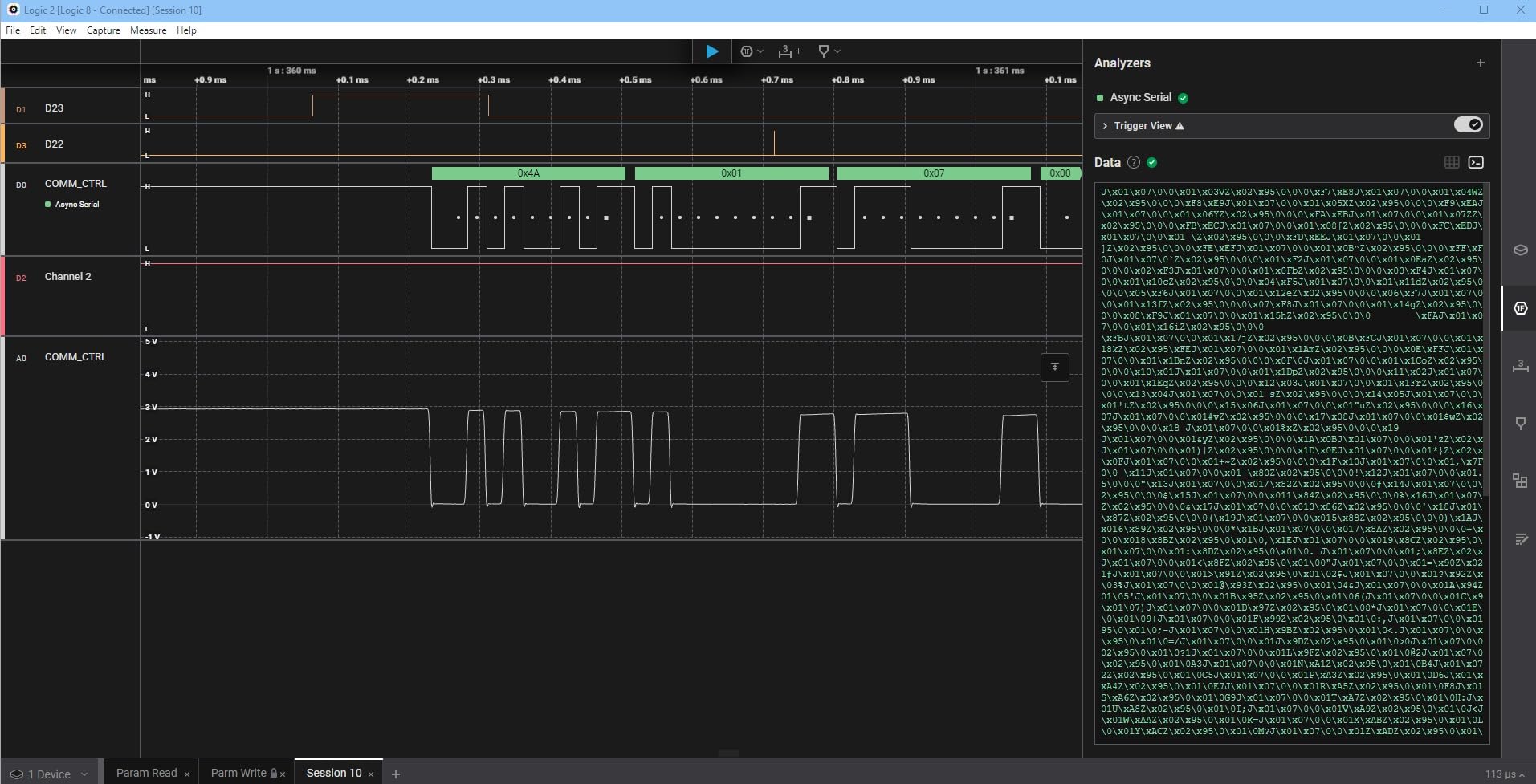

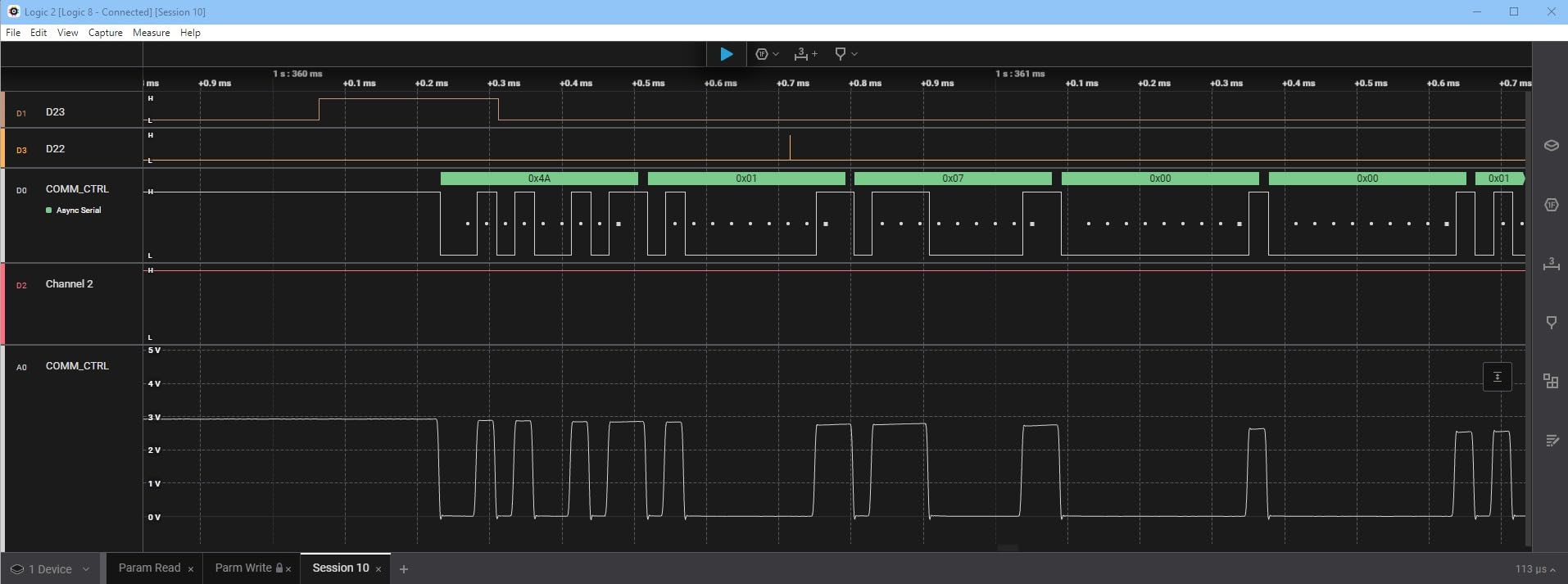

9. Saleae Logic 8 – Professional Software Experience Entry Point
Logic 8 (Black) – Saleae 8-Channel Logic Analyzer
100MS/s Digital
8 Channels
Analog and Digital
Logic 2 Software
+ The Good
- Excellent build quality and premium feel
- Logic 2 software is industry best for usability
- 8 analog and digital multi-use inputs
- Cross-platform Mac Windows Linux
- Virtually unlimited capture using PC memory
- The Bad
- Premium $499 price point
- USB 2.0 limits maximum sample rate
- Only 8 channels may limit complex projects
- No over-voltage protection beyond 25V
The Saleae Logic 8 is the entry point into the Saleae professional ecosystem. At $499, it is significantly more expensive than the InnoMaker and DSLogic options, but what you are paying for is the Logic 2 software experience. Saleae’s software is widely considered the gold standard for usability, workflow efficiency, and reliability.
The Logic 8 offers 8 multi-use channels that can function as either digital inputs (at 100MS/s) or analog inputs (at 10MS/s). This mixed-signal capability is something none of the sub-$200 analyzers offer. You can watch an I2C data line digitally while simultaneously viewing the analog waveform shape on another channel.
With 91 reviews and a 4.5-star rating, users consistently praise the build quality, software polish, and reliability. The device uses PC memory for storage, giving you access to over 10 billion digital samples. This means you can capture for extremely long durations without buffer limitations.
Logic 2 Software: The Industry Standard
Saleae’s Logic 2 software is the reason most professionals choose this platform. The interface is clean, intuitive, and handles everything from basic captures to complex multi-protocol simulations. It supports 25+ protocol analyzers and offers advanced triggering, measurement markers, and data export capabilities.
The software reliability is where Saleae truly separates itself from Sigrok-based alternatives. While PulseView and DSView are powerful, they can be buggy and inconsistent. Logic 2 just works. For professional environments where time is money, this reliability is worth the premium price.
Mixed-Signal Analog and Digital Capability
The 8 channels on the Logic 8 can each be configured as either digital or analog inputs. This means you can simultaneously decode a digital SPI bus while viewing the analog voltage levels on critical signals. For debugging signal integrity issues, this mixed-signal view is incredibly powerful.
Who Should Buy This
The Saleae Logic 8 is for professional embedded developers who prioritize software reliability and mixed-signal capability over channel count. If you have been frustrated by buggy open-source software and want a tool that simply works every time, the Logic 8 is worth the investment.
10. Saleae Logic Pro 8 – The Industry Standard for Professional Developers
Logic Pro 8 (Black) – Saleae 8-Channel Logic…
500MS/s Digital
8 Channels
USB 3.0
Analog and Digital
+ The Good
- Highest 4.8-star rating of any analyzer in this guide
- 500MS/s sample rate for high-speed protocols
- USB 3.0 for maximum data throughput
- Logic 2 software ecosystem
- 50MS/s analog sample rate for mixed-signal work
- The Bad
- Most expensive at $999
- Not Prime eligible
- Only 8 channels for the price
- Premium pricing hard to justify for hobbyists
The Saleae Logic Pro 8 is the flagship model and the highest-rated logic analyzer in this guide at 4.8 stars. It takes everything great about the Logic 8 and multiplies the sample rate by 5. At $999, it is a serious professional investment, but for engineers who need maximum performance and reliability, it is the gold standard.
The 500MS/s digital sample rate means you can capture signals up to about 200MHz with confidence. This covers every common embedded protocol including high-speed USB 2.0 analysis. The USB 3.0 interface provides the bandwidth needed to sustain high sample rates during long stream-mode captures.
On forums, the Saleae Logic Pro series is consistently described as the “industry standard” and “gold standard” for embedded development. The main critique is always the same: the price. But for professional teams where debugging time directly impacts project timelines, the Logic 2 software’s reliability and the Pro 8’s performance justify the cost.
500MS/s for High-Speed Protocol Analysis
The jump from 100MS/s (Logic 8) to 500MS/s (Logic Pro 8) is not just about bigger numbers. It means you can reliably capture and decode high-speed protocols that the cheaper analyzers simply cannot handle. USB 2.0 analysis at 480Mbps, high-speed SPI at 50MHz+, and fast I2C at 1MHz all fall within comfortable range.
The analog sample rate also jumps from 10MS/s to 50MS/s, giving you much finer detail when viewing analog signal characteristics. For debugging signal integrity issues on high-speed buses, this analog bandwidth is essential.
USB 3.0 and Throughput Advantages
The USB 3.0 interface on the Pro 8 (versus USB 2.0 on the standard Logic 8) provides the bandwidth needed to sustain high sample rates across all 8 channels simultaneously in stream mode. On the USB 2.0 Logic 8, sustained streaming at 100MS/s across 8 channels would saturate the bus. The Pro 8 has headroom to spare.
Over-Voltage Protection and Build Quality
Saleae analyzers include over-voltage protection rated to 25V, which is significantly better than the 5V protection on budget analyzers. This means an accidental connection to a higher-voltage signal is less likely to damage the device. For professional use where mistakes can be costly, this protection adds peace of mind.
Who Should Buy This
The Saleae Logic Pro 8 is for professional embedded engineering teams, research labs, and serious developers who need the absolute best software experience and highest sample rates. If your debugging time is worth more than the price difference between this and a DSLogic, the Logic Pro 8 pays for itself in saved time.
How to Choose the Right Logic Analyzer for Embedded Development
Choosing the right logic analyzer means understanding your protocol speeds, channel requirements, software preferences, and voltage domains. Let me break down the key decisions you need to make before pulling the trigger.
Sample Rate: Matching Speed to Your Protocols
The sample rate determines the fastest signal your analyzer can reliably capture. Following the Nyquist theorem, you need at least 2x oversampling, but in practice 4-10x gives you clean captures with accurate edge timing. Here is a practical reference for common embedded protocols.
For UART at 115200 baud (about 115kHz signal), you need a minimum sample rate of about 250kHz, so even the 24MHz budget analyzers handle this easily. For I2C at 400kHz, you need at least 1MHz but 4MHz gives better results. For SPI at 10MHz, you need at least 25MHz but 50-100MHz is recommended. For high-speed USB 2.0 analysis, you need 500MS/s or more.
My rule of thumb: buy an analyzer with at least 4x your fastest signal frequency. If your SPI clock runs at 20MHz, get an analyzer with at least 80MHz sample rate. This gives you clean captures with accurate timing resolution.
Channel Count: How Many Do You Actually Need
Channel count determines how many signals you can monitor simultaneously. For basic UART debugging, 2 channels (TX and RX) is enough. For I2C, you need 3 (SDA, SCL, and ground reference). For standard SPI, you need 4-5 (MOSI, MISO, SCK, CS, and optionally a debug GPIO).
Where you need more channels is when debugging complex systems. Monitoring multiple SPI devices simultaneously, analyzing parallel buses, debugging JTAG chains, or correlating bus traffic with multiple GPIO debug signals all require 16+ channels. If you work with FPGAs, parallel memory interfaces, or complex multi-chip designs, 32 channels (like the Digilent Digital Discovery) may be necessary.
For most embedded developers, 8 channels is the minimum useful count and 16 channels is the sweet spot. I would not recommend going below 8 channels for anything beyond basic learning.
Software Ecosystem: Sigrok vs Proprietary
The software ecosystem is often overlooked but is arguably the most important factor in your daily experience. There are two main camps: open-source Sigrok/PulseView/DSView and proprietary Saleae Logic 2 and KingstVIS.
Sigrok and PulseView are free, open-source, and support the widest range of hardware and protocol decoders. They run on Windows, Mac, and Linux. The downside is that the interface is less polished and bugs are more common than in commercial software. For budget-conscious developers and open-source advocates, Sigrok is the way to go.
Saleae Logic 2 is the polished commercial alternative. It is more reliable, more intuitive, and better integrated with the hardware. The downside is that it only works with Saleae hardware, which means you are paying $499+ for the software experience. KingstVIS (used by InnoMaker) sits in between, offering more features than PulseView but less polish than Logic 2.
Voltage Threshold and Input Protection
This is a safety-critical topic that too many buyers overlook. Budget analyzers like the HiLetgo and Comidox have fixed 5V TTL thresholds and minimal over-voltage protection. Connecting these to a 1.8V target can produce unreliable readings at best and damage your target device at worst.
From the forum research, one of the most common pain points is users discovering that their cheap analyzer damaged their MCU. The community consensus is to always check your target voltage with a multimeter before connecting any analyzer. Analyzers with adjustable thresholds (like the DSLogic Plus) are much safer for mixed-voltage environments.
Saleae analyzers offer the best over-voltage protection at 25V, compared to 5V on most budget alternatives. If you work in environments where accidental over-voltage connections are possible, this protection is worth the premium.
Stream Mode vs Buffer Mode
Understanding the difference between stream mode and buffer mode is essential for choosing the right analyzer. In stream mode, captured data is sent continuously over USB to your PC. This gives you unlimited capture time but limits sample rate to USB bandwidth. In buffer mode, data is stored in on-board memory at high speed, but capture duration is limited by memory size.
Budget analyzers like the HiLetgo only operate in stream mode, limited by USB 2.0 bandwidth. The DSLogic Plus supports both modes, giving you the best of both worlds. The Saleae Logic Pro 8 uses USB 3.0 for high-bandwidth streaming, reducing the need for buffer mode.
For long-duration monitoring (catching intermittent bugs), stream mode is essential. For capturing very fast signals (FPGA debugging, high-speed SPI), buffer mode gives you the sample rates you need. If your budget allows, choose an analyzer that supports both.
Budget Tiers: From Hobbyist to Professional
Here is how I categorize the analyzers in this guide by budget tier. Under $20, the HiLetgo, Comidox, and LONELY BINARY kits are best for learning and basic Arduino/ESP32 debugging. From $60-$160, the InnoMaker LA1010, LA2016, and DSLogic Plus are serious tools for professional embedded work. From $120-$250, the GreatFET One and Digilent Digital Discovery fill specialist roles. At $499-$999, the Saleae Logic 8 and Pro 8 are the professional gold standard.
My strongest recommendation: if you are serious about embedded development and have $150 to spend, get the DSLogic Plus. It gives you 80 percent of the Saleae experience at 15 percent of the price. You can always upgrade later.
FAQs
What sample rate do I need for UART, SPI, and I2C debugging?
For UART at standard baud rates (up to 115200), a 4MHz sample rate is sufficient. For I2C at 400kHz fast mode, you need at least 4MHz but 10MHz gives better results. For SPI, the rule of thumb is 4-10x your clock speed, so a 10MHz SPI bus needs a 40-100MHz analyzer. The budget 24MHz analyzers handle UART and I2C fine but struggle with SPI above 4MHz.
Can a cheap logic analyzer damage my microcontroller?
Yes, it can. Budget analyzers with fixed 5V TTL thresholds and minimal over-voltage protection can damage 1.8V and 3.3V targets if connected incorrectly. Always verify your target voltage with a multimeter before connecting. Analyzers with adjustable thresholds like the DSLogic Plus are much safer for mixed-voltage work. Saleae analyzers offer 25V over-voltage protection, the best in this category.
Is Sigrok and PulseView really free?
Yes, Sigrok and its GUI front-end PulseView are 100 percent free and open-source under the GNU GPL license. They support over 200 protocol decoders and run on Windows, macOS, and Linux. There are no subscription fees, trial limitations, or hidden costs. The entire Sigrok ecosystem is community-maintained and supports a wide range of hardware including budget analyzers from HiLetgo, Comidox, and DreamSourceLab.
What is the difference between a logic analyzer and an oscilloscope?
An oscilloscope displays analog voltage waveforms over time, showing signal shape, amplitude, rise times, and noise. It typically has 2-4 channels. A logic analyzer captures multiple digital signals simultaneously (8 to 32 channels) and decodes them into protocol-level data like UART frames, I2C transactions, or SPI transfers. They complement each other: use an oscilloscope for analog signal quality and a logic analyzer for multi-channel digital protocol debugging.
Is a logic analyzer worth it for embedded development?
Absolutely. Community consensus across Reddit, EEVblog, and embedded forums is that a logic analyzer is essential for embedded development. It reveals timing issues, protocol errors, and signal integrity problems that are invisible through software debugging alone. Users consistently report that learning embedded systems without a logic analyzer is significantly harder. Even a $12 budget analyzer will transform your debugging workflow.
Final Verdict: Which Logic Analyzer Should You Buy?
After testing all 10 analyzers across different embedded development scenarios, my recommendations come down to who you are and what you need. If you are a student or hobbyist just starting out, grab the HiLetgo 24MHz for under $15 and learn the fundamentals. If you are a serious maker or junior engineer stepping up to 16-channel debugging, the InnoMaker LA1010 at $69 is your best entry point.
For professional embedded work where you need reliability and capability without the Saleae price tag, the DSLogic Plus is the best value in this entire guide. It is the one I use as my daily driver. And if budget is not a concern and you want the absolute best software experience and professional-grade support, the Saleae Logic Pro 8 is the industry standard.
For those of you doing specialist work, the GreatFET One is unmatched for USB hacking and reverse engineering, and the Digilent Digital Discovery offers the most channels (32) plus pattern generation in a single device.
Whichever you choose, the most important thing is simply having a logic analyzer on your bench. The embedded development community is unanimous on this point: debugging without one is dramatically harder. You can explore more electronics hardware reviews on our site for related tools and components. Pick the analyzer that fits your protocols and budget, and start decoding.
