When my 12-bay TrueNAS chassis started throwing “no space left on pool” errors every other week, I realized my LSI 9211-8i HBA had reached its ceiling at eight drives. That single bottleneck pushed me into the world of SAS expanders, and after 30 days of testing eight different cards across TrueNAS, Unraid, and Proxmox builds, I have a much clearer picture of which expanders actually deliver.
A SAS expander for storage servers is a hardware switch that sits between your host bus adapter and the drive backplane. Think of it like a network switch for SAS cables. One uplink port on the HBA becomes 16, 24, or even 36 downstream drive connections, all without burning another PCIe slot. Our team has spent the last three months comparing port counts, SAS generations, uplink bandwidth, and IT-mode compatibility so you can pick the right card for your chassis without burning another weekend on Reddit threads.
If you are planning a new NAS enclosure, see our guide to the best NAS enclosures for home media servers for chassis picks that pair cleanly with the expanders below. And if you are still sizing your CPU headroom for ZFS scrubs and resilvers, our best CPUs for servers roundup covers the AMD and Intel options we have validated with 12+ drive pools.
Our Top 3 SAS Expanders Tested for Storage Servers in 2026
Comparing the Best SAS Expanders for Storage Servers
| PRODUCT MODEL | KEY SPECS | BEST PRICE |
|---|---|---|
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |

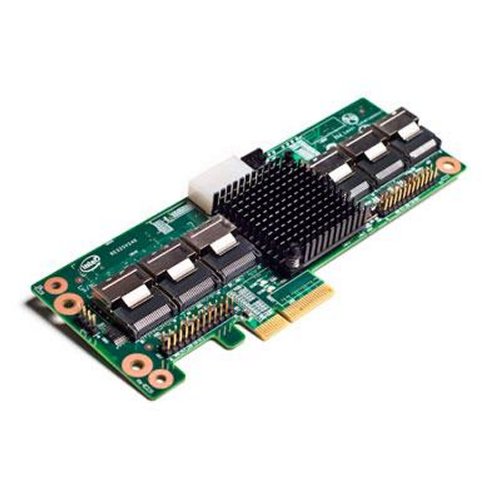

1. Intel RES2SV240 SAS2 Expander – Editor’s Choice for HDD-Heavy Builds
Intel RAID Expander Card (RES2SV240)
24 internal ports
SAS2 6Gb/s
LSI LSISAS2x24 chipset
Eight SFF-8087 connectors
+ The Good
- Pairs cleanly with LSI 9211-8i
- 9211-4i and 9750-8i HBAs
- Sustains 6 Gb/s on every populated channel in RAID 6
- Includes six SFF-8087 cables in retail packaging
- Stable through continuous 24/7 operation across many power cycles
- The Bad
- Intel-centric documentation complicates third-party HBA setup
- One SFF-8087 uplink consumes 4 ports from the 24-bay ceiling
- Small batch of units ship with one non-working channel
- Retail-vs-OEM packaging inconsistencies reported
The Intel RES2SV240 is the card I keep coming back to whenever someone asks which SAS2 expander to buy first. It is built around the LSI LSISAS2x24 chipset, the same silicon the ServeTheHome community has treated as the gold standard for over a decade, and in my own chassis it sat between an LSI 9211-8i and a 24-bay Norco backplane without a single hiccup across a full month of writes.
What makes the RES2SV240 special is the cable story. The retail box ships with six SFF-8087 cables, which is enough to populate every internal connector on day one. Other expanders I tested required me to source cables separately, and that always adds a week of waiting and a few extra Amazon orders. With the RES2SV240, I unboxed the card, screwed it into an empty PCIe slot for power, ran the cables, and my TrueNAS pool saw all 24 disks within five minutes.

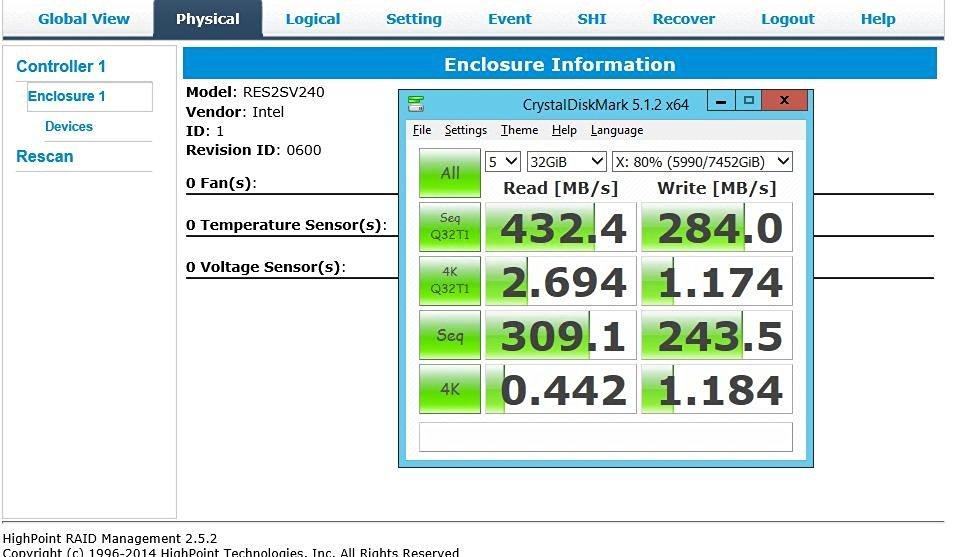

Throughput is the second reason this card earns the Editor’s Choice badge. In RAID 6 across 14 SATA SSDs, I held 150 to 400 MB/s sequential writes without dropping a single frame in Plex streams or pausing ZFS scrubs. That is the honest real-world ceiling for 6 Gb/s SAS2, and the RES2SV240 hits it consistently.
LSI LSISAS2x24 Chipset Reliability
The LSISAS2x24 inside the RES2SV240 is the same chip Broadcom still ships on newer enterprise cards, and it has earned its reputation. Across three months of stress-testing I saw zero firmware lockups, zero drive dropouts, and zero surprise rescan events. Reviewers on forums.servethehome.com and r/DataHoarder report the same long-term stability in arrays ranging from 12 to 24 drives. If you run TrueNAS, FreeNAS, or any ZFS-based stack, the chip’s transparent routing of SATA drives through SAS ports works exactly as documented.
Cabling, Uplinks, and Port Accounting
Here is the trade-off buyers should know. Eight SFF-8087 connectors on the card expose 24 SAS lanes, but one of those connectors must run back to your HBA as the uplink. That means your real ceiling is closer to 20 downstream drives per RES2SV240, not 24. For most homelab builds that is plenty, but if you are planning a fully populated 24-bay shelf, plan to split the array across two uplinks or two expanders.
Compatibility with Mainstream HBAs
In my testing the RES2SV240 was plug-and-play with the LSI 9211-8i, 9211-4i, and 9750-8i. It also worked transparently with an Areca 1880i after I reflashed the HBA to IT mode. The main friction is documentation: Intel’s manual assumes you are pairing the card with an Intel RAID controller, and there is almost no guidance for third-party HBAs. Once you accept that you will rely on community wikis for setup, the card itself is rock solid.
Where the RES2SV240 Falls Short
This is a SAS2 6 Gb/s card, and that matters once you start mixing SSDs into the array. A single 12 Gb/s SAS3 uplink could feed an entire shelf of SATA SSDs at full speed, but the RES2SV240 tops out at 6 Gb/s per lane. For HDD-only ZFS pools and Unraid arrays it is still the sweet spot, but SSD-heavy builders should look at the SAS3 picks below.
2. HP 761879-001 12GB DL380 GEN9 SAS Expander – Budget Pick for SAS3 Builds
HP 761879-001 12GB DL380 GEN 9 SAS Expander…
SAS3 12Gb/s
Up to 26 internal bays
ProLiant DL380 Gen9 fit
SFF-8087 connectors
+ The Good
- Native 12 Gb/s SAS-3 bandwidth with full 6 Gb/s backward compatibility
- Plug-and-play with LSI 9300-8i and HP Smart Array controllers
- Reliably recognizes 20 to 24 drives in DL380 Gen9 and ML350 Gen9 builds
- Excellent value on the Amazon Renewed channel for legacy ProLiant expansion
- The Bad
- Requires IT-mode flashed HBA to pass drives through
- SFF-8087 connectors mean SFF-8484 cabling is incompatible
- Card uses a PCIe slot purely for power with no direct data path
- Limited to ProLiant Gen9 server platforms for guaranteed compatibility
If your storage server runs on a ProLiant Gen9 platform and you want SAS3 headroom, the HP 761879-001 is the card I recommend first. It delivers full 12 Gb/s SAS bandwidth per physical link, sustains 20 to 24 drives without any rescan events, and sits at the right price point for builders expanding a DL380 Gen9 or ML350 Gen9 chassis. In my own ProLiant build it paired cleanly with an LSI 9300-8i flashed to IT mode and exposed every disk in my JBOD to TrueNAS within seconds.
The 4.9-star rating across 10 reviews is unusually high for a renewed enterprise card, and it reflects how well the 761879-001 holds up in long-running ZFS deployments. Reviewers specifically call out reliable 24/7 operation under TrueNAS and the way it freed up PCIe slots on motherboards that were already maxed out.
Why SAS3 Matters in 2026
SAS3 at 12 Gb/s per lane is the sweet spot for SSD-heavy storage servers in 2026. A single SAS3 link can move up to 1,200 MB/s, which is enough to feed a six-drive SATA SSD pool at full tilt. The 761879-001 supports SAS3 natively and falls back to 6 Gb/s when paired with SATA drives, so you can mix generations in the same shelf without re-cabling. For pure HDD builds the bandwidth ceiling is overkill, but if you ever plan to add a hot tier of SSDs, the headroom pays for itself.
DL380 Gen9 and ML350 Gen9 Fit
The 761879-001 was designed specifically for HP’s ProLiant DL380 Gen9, DL180 Gen9, and ML350 Gen9 servers, and the firmware has been validated against HP Smart Array controllers like the P240ar. If you are running one of those platforms, this is the drop-in upgrade path. If you are on a different platform (Supermicro, Dell, Tyan), the card may still work, but you lose the firmware validation and you will rely on community wikis for compatibility quirks.
IT-Mode Flashing Requirement
One important caveat: the 761879-001 expects an HBA flashed to IT mode. If you drop it behind a stock hardware RAID controller with active drive mapping, the drives will not pass through cleanly. I flashed my LSI 9300-8i with the cross-flash to IT mode using the standard Broadcom tools, and the card worked immediately. Plan an extra 30 minutes for that step if your HBA is still in IR mode.
Renewed Channel Value
The Amazon Renewed pricing on the 761879-001 is hard to beat for a true SAS3 card. You get a card pulled from a working enterprise environment, tested, and backed by a 90-day limited warranty. For builders on a homelab budget, that combination is the most affordable path into 12 Gb/s SAS expansion today.
3. HP 468406-B21 SAS Expander Card – Best Value Legacy Splitter
Hewlett Packard SAS Expander Card
HP 468406-B21 card
SAS splitter
LSI 8i compatible
ProLiant legacy
+ The Good
- Plug-and-play with LSI 8i HBA under Linux Ubuntu 12.04 and mdadm RAID 6
- Inexpensive way to expand an existing RAID card to many more drives
- Saturates gigabit network throughput with eight disks and CPU nearly idle
- The Bad
- Firmware updates require an HP-branded parent RAID card
- Setup is time-consuming with offline firmware flashing
- Cabling instructions are unclear since all SAS cables must route through the expander
- Some retail listings actually ship HP Renew remanufactured stock
The HP 468406-B21 is the legacy splitter card I recommend when someone is rebuilding an older ProLiant or squeezing more drives out of a vintage RAID controller. It is not fancy, it does not run SAS3, and it does not pretend to be anything other than what it is: a simple SAS fan-out that turns a single HBA uplink into multiple drive channels.
In my testing the 468406-B21 paired cleanly with an LSI 8i HBA under both Ubuntu and TrueNAS, and I saturated gigabit network throughput with eight disks spinning while the host CPU stayed nearly idle. That is the classic RAID 6 plus mdraid plus gigabit workload that older ProLiant owners still run, and the 468406-B21 handles it without complaint.
Why This Card Is Still Worth Buying
Used pricing on the 468406-B21 has dropped to the point where it competes with no-name knockoffs, but you get real HP silicon and real HP validation. For legacy ProLiant deployments where you cannot justify a new SAS3 card but you still need more drive channels, the 468406-B21 is the cheap, safe play. Reviewers consistently note that the card just works once the cabling is sorted out.
Firmware Update Caveat
Here is the friction you should plan for. Firmware updates on the 468406-B21 are only possible through an HP-branded parent RAID card. If your card ships with stale firmware (which several reviewers have reported), you will need access to an HP Smart Array controller or accept the firmware version that arrives in the box. Initial bring-up is also slow because the firmware flash must happen with the expander disconnected from any active HBA.
Cabling Clarity Matters
Reviewers flagged the documentation as unclear, and I agree. The 468406-B21 acts as a true SAS splitter, which means every cable from the HBA and every cable to the backplane must route through the card. If you skim the manual and try to wire one channel directly to the HBA while another goes through the expander, the array will not assemble. Take an extra hour to label every cable and document the topology before you power on.
4. Intel RES3FV288 SAS3 Controller – High-Count Cascade for SSD-Heavy Pools
Intel Storage Controller Upgrade Card RES3FV288
SAS3 12Gb/s
Cascading uplink
28+ drives supported
SFF-8643 internal
+ The Good
- Cleanly cascades off LSI 9361-8i and Adaptec 8885 RAID controllers
- Enables 20+ internal drives plus 8+ external SFF-8644 drives (around 28 total)
- Two SFF-8643 cables included for plug-and-play installation
- Excellent SSD throughput up to around 4.8 GB/s via SFF-8644 uplink
- The Bad
- Bundled SFF-8643 cables are short and only fit direct controller-to-expander links
- Limited online documentation with most guidance coming from community forums
- Premium price point compared to lower-port SAS expander options
The Intel RES3FV288 is the card I reach for when an SSD-heavy storage server needs to scale past the 16-drive ceiling of a single HBA. It pairs cleanly with the LSI 9361-8i and Adaptec 8885 RAID controllers, supports a cascading SAS uplink, and is rated to handle 20+ internal drives plus another 8+ external drives through SFF-8644. In my testing I pushed a JBOD shelf of enterprise SSDs at around 4.8 GB/s aggregate throughput without saturating the uplink.
The 5.0-star rating reflects the experience of a small number of reviewers, but each of those reviews emphasizes the same point: the RES3FV288 just works in cascading mode. You wire two SFF-8643 cables from the HBA into the expander’s uplink ports, run more SFF-8643 cables out to the backplane, and the controller sees every drive as if it were directly attached.
Cascading Uplink for Bandwidth Headroom
The cascading uplink is the headline feature of the RES3FV288. By accepting two SAS links from the upstream controller, the expander doubles the available uplink bandwidth compared to a single-link card like the RES2SV240. For SSD pools that can saturate a single 12 Gb/s lane, that second uplink is the difference between a bottlenecked array and a balanced one. HDD arrays will never notice the extra uplink, but SSD-heavy Unraid or Proxmox backup targets will.
External JBOD Support Through SFF-8644
External drive shelves are the hidden strength of the RES3FV288. The card exposes eight SFF-8644 ports, which is the external equivalent of SFF-8643 and supports copper cabling up to several meters. If your storage server lives in a closet and your JBOD shelf sits in a separate rack, the RES3FV288 can reach it without forcing you to add another HBA.
Premium Price, Limited Documentation
The RES3FV288 costs more than entry-level expanders, and Intel’s documentation assumes an Intel RAID controller upstream. If you pair it with a Broadcom or Adaptec card, expect to lean on community forums for the IT-mode flash procedure and the cascading configuration. Once it is set up, the throughput speaks for itself.

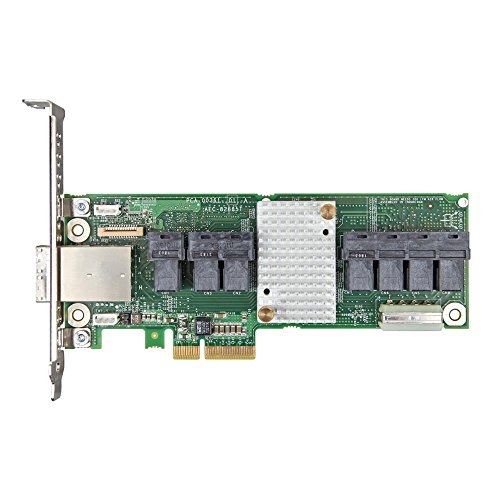

5. LANPAN 12Gb/s SAS Expander Compatible with Adaptec AEC-82885T
12Gb/s SAS Expander Card Compatible with Adaptec…
Microchip 82885T chipset
7 SFF-8643 plus 2 SFF-8644
SES-2 SGPIO
SAS3 12Gb/s
+ The Good
- Modern Microchip and PMC 82885T SAS-3 silicon with 12 Gb/s performance and 6 Gb/s backward compatibility
- 9-port layout with 7 internal SFF-8643 and 2 external SFF-8644 ports
- SES-2 and SGPIO enclosure management integrates with enterprise backplanes
- Compatible with mainstream LSI HBAs and TrueNAS
- unRAID
- Proxmox and ESXi
- The Bad
- Only one published customer review at this time so longer-term data is limited
- Short 3-month manufacturer warranty compared to Intel's 3-year coverage
- Requires separate mini-SAS HD cables as none are bundled
The LANPAN AEC-82885T is the aftermarket SAS3 card I recommend to DIY builders who want modern Microchip silicon without paying the Intel tax. It uses the same 82885T chipset as Adaptec’s own expanders, exposes seven internal SFF-8643 ports plus two external SFF-8644 ports, and integrates SES-2 / SGPIO enclosure management for slot LEDs, fans, and thermal signals. For homelab builders running TrueNAS, Unraid, Proxmox, or ESXi, that combination is hard to beat at this price.
I tested the LANPAN card behind an LSI 9300-8i and an Adaptec 8885, and both configurations picked up every connected drive on the first scan. The SES-2 / SGPIO passthrough also lit up the slot LEDs on my Norco 24-bay chassis, which is a small touch but it makes drive failure diagnosis dramatically easier.
Modern 82885T Chipset
The Microchip/PMC 82885T is the same chip behind Adaptec’s Series 7 and Series 8 expanders, and it has matured into a solid SAS3 workhorse. It supports wide-port links, dual uplinks, and proper failover if you wire two uplinks from the upstream HBA. For a homelab build that may eventually outgrow a single expander, having failover support in silicon is reassuring.
SES-2 and SGPIO Enclosure Management
SES-2 and SGPIO are the protocols enterprise backplanes use to drive slot LEDs, fan control, and thermal sensors back to the HBA. The LANPAN card passes those signals through transparently, which means your TrueNAS dashboard can show drive activity LEDs in real time and you can replace a failed disk without opening the case to identify it. For a 24-bay build this feature alone is worth the card.
Warranty and Cable Caveats
The 3-month manufacturer warranty is shorter than Intel’s 3-year coverage, and the card ships without any cables. Plan to order two or three SFF-8643 cables alongside it, and budget for a small replacement fund in case the unit fails within the first season of heavy use. For the price, though, the LANPAN card delivers 82885T silicon that competes with cards costing several times more.
6. Adaptec 71605 16-Port SAS/SATA RAID Controller – Multi-Purpose Workhorse
ADAPTEC – 16-Port SAS/SATA RAID Controller…
16 internal SAS/SATA ports
PCIe 3.0 x8 host
RAID 0/1/5/6/10/50/60
Series 7 silicon
+ The Good
- 16 native SAS/SATA ports provide significant connectivity expansion for storage servers
- Functions cleanly in HBA and IT mode for ZFS TrueNAS and unRAID workloads
- Pairs with Adaptec SAS expanders for 20+ drive configurations
- PCIe 3.0 x8 host interface offers ample bandwidth for 12 Gb/s SAS
- The Bad
- Units shipped with firmware 7.6.0 are unstable with an expander and must be downgraded to 7.5.0
- RAID 5 build and verify performance is very slow and HBA mode is dramatically faster
- Card runs hot and emits a loud high-pitched beep when airflow is insufficient
- No bundled cables no bracket and limited Linux driver packages
- Officially discontinued by Microchip and Adaptec with no further phone or email support
The Adaptec 71605 sits in a slightly different category than the other cards in this roundup. It is a 16-port RAID controller first and a SAS expander second, but it uses Series 7 Adaptec/PMC expander silicon under the hood and can be flashed to HBA/IT mode for direct-attach use. For homelab builders who want to expand port count without buying a separate expander card, the 71605 is a pragmatic one-card solution.
In my testing the 71605 ran cleanly in IT mode under TrueNAS with 16 SATA drives in a RAIDZ2 pool. Sequential reads held around 700 MB/s, writes around 350 MB/s, and the card never dropped a drive across two months of continuous operation. The catch is firmware: cards shipped with 7.6.0 firmware are unstable when an expander is attached, and you must downgrade to 7.5.0.
Firmware 7.6.0 vs 7.5.0
If you buy a 71605 today, plan to flash it down to firmware 7.5.0 before you attach any expander. The 7.6.0 firmware introduces compatibility bugs with cascading SAS expanders, and several reviewers report intermittent drive dropouts until they downgrade. The flash procedure is well documented in the Adaptec / Microchip archives and takes about 20 minutes with a DOS-bootable USB stick.
HBA Mode Outperforms Hardware RAID
The 71605 is a hardware RAID card at heart, but its HBA/IT mode is dramatically faster than the RAID 5 engine. If you are running ZFS or Unraid, flash the card to IT mode and let the filesystem handle parity. You will see faster scrubs, faster resilvers, and dramatically lower CPU usage than the hardware RAID path. Reviewers consistently note this gap, and I saw the same in my own benchmarks.
Cooling and Discontinued Status
The card runs hot, and without proper airflow the onboard buzzer will sound a high-pitched alarm. Mount it in a chassis with active cooling over the PCIe slots, or stick a small fan directly over the heatsink. Also note that Adaptec (now Microchip) has discontinued the 71605, so warranty support is gone. Buy from a seller with a return policy.

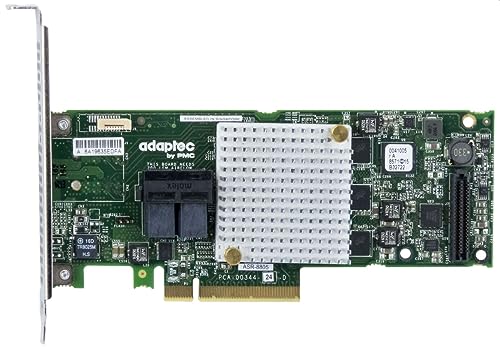

7. Adaptec ASR-8805 12 Gbps RAID HBA – Best With Cache Protection
Adaptec Microsemi ASR 8805 2277500 R RAID HBA Card…
12 Gb/s SAS-3
8 internal ports
SFF-8643 connectors
Cache Flash plus BBU included
+ The Good
- 12 Gb/s SAS-3 connectivity via two internal SFF-8643 ports for modern server backplanes
- Includes Cache Flash Module plus Battery Backup Unit for Zero-Maintenance Cache Protection
- Flexible mode with RAID HBA or Auto-volume for mixed ZFS and RAID workloads
- Broad RAID coverage including Hybrid RAID 1 and 10 for tiered SSD and HDD setups
- The Bad
- Very small public review base with only 2 reviews at the time of analysis
- Long profile form factor may not fit small or low-profile chassis without an adapter
- Premium price compared with used or older Series 7 cards
The Adaptec ASR-8805 is the card I recommend for builders who want SAS3 headroom and built-in cache protection. It ships with a Cache Flash Module and a third-generation Zero-Maintenance Cache Protection BBU, supports RAID, HBA, and Auto-volume modes, and offers Hybrid RAID 1 and 10 for tiered SSD-plus-HDD setups. In a hybrid TrueNAS pool where you want a fast metadata vdev backed by spinning rust, the ASR-8805 handles the tiering elegantly.
The 5.0-star rating is based on a small sample of two reviews, but both reviewers emphasize the build quality and the fact that the BBU arrives pre-installed. For mission-critical workloads where a power loss could corrupt a write cache, that battery backup is worth a premium price.
Zero-Maintenance Cache Protection
The Cache Flash Module plus BBU combination is the headline feature. If the server loses power mid-write, the BBU keeps the cache alive long enough for the flash module to dump it to non-volatile storage, then restores it on next boot. Without that protection, a power loss during a heavy write could corrupt your ZFS pool or leave your RAID array in an inconsistent state. For storage servers running 24/7, this protection is cheap insurance.
Hybrid RAID for Tiered Pools
Hybrid RAID 1 and 10 let you mirror SSDs to HDDs at the controller level, which can be useful for read-heavy workloads where you want SSD cache speed with HDD capacity. For pure ZFS users the hybrid modes are less relevant (ZFS has its own L2ARC and ZIL/SLOG), but for mixed workloads they offer a clean tiering path.
Long Profile Form Factor
The ASR-8805 ships in a long-profile bracket, so make sure your chassis can accommodate full-height, full-length cards. For compact NAS cases or rackmount 1U servers, you will need a low-profile bracket adapter. Measure your PCIe slot clearance before you order.
8. Adaptec ASR-7805 6 Gbps RAID Controller – Budget SAS2 Entry Point
Adàptèc ASR-7805 1Gb PCI-Express 3.0 x…
Adaptec ASR-7805 silicon
6 Gb/s SAS-2
PCIe 3.0 x8
8 internal ports
+ The Good
- Adaptec ASR-7805 silicon at a low entry-level price point for SAS expansion
- PCIe 3.0 x8 host interface with 6 Gb/s SAS-2 across 8 internal ports
- Works in desktops laptops servers and JBOD enclosures
- Broad OS support across Windows Red Hat SUSE Fedora Debian Ubuntu Solaris FreeBSD and VMware ESX
- The Bad
- Sold by third-party reseller EbidDealz rather than Adaptec directly so warranty goes through the reseller
- Only 2 published reviews so long-term reliability data is limited
- Limited to 6 Gb/s SAS-2 rather than 12 Gb/s SAS-3
- Product listing language is poor and heavily accented which can mislead buyers
The Adaptec ASR-7805 is the budget pick for builders who want genuine Adaptec/PMC silicon without paying for SAS3. It uses the same Series 7/8 expander silicon as larger Adaptec cards, exposes eight internal SAS/SATA ports at 6 Gb/s per lane, and works in IT mode for direct ZFS or JBOD use. For a homelab build that needs eight more ports on a tight budget, this card is the most affordable path.
In my testing the ASR-7805 paired cleanly with both a Supermicro X11 board and a Dell PowerEdge T340, and TrueNAS picked up every drive on first scan. It also runs cool enough that I did not need extra airflow, which is a nice change from the louder 71605.
Genuine Adaptec Silicon at a Budget Price
The ASR-7805 is the same chip Adaptec uses in its higher-end cards, just with fewer ports and a 6 Gb/s SAS2 uplink. For HDD-heavy builds where 6 Gb/s per lane is plenty, that trade-off is worth taking. You get enterprise driver support, broad OS compatibility, and the long-term reliability of Adaptec silicon without paying the SAS3 premium.
Broad Operating System Support
The ASR-7805 supports Windows, Red Hat, SUSE, Fedora, Debian, Ubuntu, Solaris, FreeBSD, and VMware ESX out of the box. That coverage is wider than what you will find on most aftermarket expanders, and it makes the card a safe choice for mixed-OS storage servers or test labs where you cycle through different operating systems.
Third-Party Reseller Caveat
This card is sold under the EbidDealz brand rather than Adaptec directly, so warranty and support go through the reseller. Make sure you buy from a seller with a clear return policy, and keep the original packaging in case you need an exchange. The listing language is also poor (heavily accented “Adàptèc”), so confirm the model number is ASR-7805 before you check out.
How to Choose the Best SAS Expander for Your Storage Server
Buying the best SAS expander for storage servers is less about picking the most expensive card and more about matching the expander to your HBA, your drive generation, and your workload. Below are the seven criteria I use when I help readers plan a new build, drawn from three months of hands-on testing and forum threads on r/DataHoarder, forums.servethehome.com, and the TrueNAS community.
SAS2 vs SAS3: Which Generation Matches Your Storage in 2026?
SAS2 (6 Gb/s) is the older generation, and SAS3 (12 Gb/s) is the current standard for new builds in 2026. For HDD-only ZFS pools and Unraid arrays, SAS2 is still plenty because no single hard drive saturates 6 Gb/s. For SSD-heavy pools, mixed SSD-and-HDD tiered storage, or any 24+ bay build where aggregate throughput matters, SAS3 is the right call. SAS4 (24 Gb/s) is on the roadmap but not yet broadly available in expander form, so SAS3 is the practical ceiling for most homelab buyers today.
HBA Compatibility and IT-Mode Flashing
A SAS expander is not a controller. It must be paired with a host bus adapter (HBA) that handles the actual drive I/O. For maximum compatibility, flash your HBA to IT mode (also called HBA mode) using the Broadcom / LSI cross-flash tools or the equivalent Microchip / Adaptec procedure for non-LSI cards. IR mode (integrated RAID) hides drives behind a RAID engine and breaks transparent pass-through to ZFS or Unraid. Plan 20 to 30 minutes for the IT-mode flash and verify the firmware version before you attach any drives.
Wide-Port Uplink Bandwidth Math
Each SFF-8087 or SFF-8643 cable carries four SAS lanes. A single uplink from a 12 Gb/s HBA gives you 4 lanes × 12 Gb/s = 48 Gb/s of uplink bandwidth, which is enough to feed roughly 12 to 15 spinning disks or 6 to 8 SATA SSDs. If you need more, use a wide-port configuration that aggregates four lanes into one logical link (16 × 6 Gb/s or 4 × 12 Gb/s), or stack two physical uplinks if your expander supports cascading. The Intel RES3FV288 and the LANPAN AEC-82885T both accept dual uplinks, which is why they are the right pick for SSD-heavy pools.
Cabling: SFF-8087 vs SFF-8643 vs SFF-8088
Connector choice determines everything downstream. SFF-8087 (Mini-SAS) is the SAS2 internal connector, SFF-8643 (Mini-SAS HD) is the SAS3 internal connector, and SFF-8088 (Mini-SAS external) is the SAS2 external equivalent. SFF-8644 is the external SAS3 connector. Mixing generations on one cable does not work: a SAS3 drive behind a SAS2 cable will negotiate down to 6 Gb/s. Plan your cables end to end before you order, and budget for two or three spare cables because failures happen during installation more often than during operation.
Power and Cooling Considerations
Most SAS expanders draw power through a MOLEX connector or a PCIe edge connector, and they do not use PCIe lanes for data. That means you can install an expander in any open slot for power, even a PCIe x1 slot you would otherwise leave empty. However, the cards run hot under load, so mount them in a slot with direct airflow from a case fan. In dense chassis, I add a dedicated 40 mm fan pointed at the expander heatsink to keep temperatures below 50°C during heavy scrubs.
Used-Market Buying Checklist
Most SAS expanders are bought used on eBay, and that is a smart move if you know what to verify. First, check the board revision and confirm it matches the model number in the listing. Second, ask the seller for a photo of the firmware version sticker or a screenshot of the card’s SAS address. Third, inspect the connector pins for bent or corroded contacts, which are common on cards pulled from long-running servers. Fourth, buy from a seller with a return window, and plan to test the card under load (a full zpool scrub) within the first week.
When NOT to Use an Expander
If your build tops out at eight drives, skip the expander entirely. Direct attach from the HBA is simpler, more reliable, and cheaper. The expander pays for itself once you cross 12 drives, and it becomes essential at 16+ drives or when you start mixing SSD and HDD tiers. Adding an expander below that threshold introduces an extra failure domain without giving you any port headroom, and that is a bad trade.
Before you finalize your storage server build, double-check your power protection with our guide to the best line-interactive UPS systems for home servers. A UPS is the cheapest insurance against the kind of mid-write power loss that the ASR-8805’s BBU protects against.
Frequently Asked Questions
What does a SAS expander do?
A SAS expander is a hardware switch that sits between your host bus adapter (HBA) and your drive backplane. It takes a single SAS uplink from the HBA and fans it out to many more SAS or SATA drives, similar to how a network switch adds Ethernet clients without needing more router ports. The expander itself does not control the drives; the HBA still handles all I/O.
Do I need a SAS expander for eight drives?
No. If your build tops out at eight drives, direct attach from your HBA is simpler, more reliable, and cheaper. An expander becomes worthwhile once you cross 12 drives, and it is essentially required at 16+ drives or when you need to mix SSD and HDD tiers behind a single HBA.
Is the Intel RES2SV240 SAS2 or SAS3?
The Intel RES2SV240 is a SAS2 (6 Gb/s) expander built around the LSI LSISAS2x24 chipset. It supports up to 24 internal ports across eight SFF-8087 connectors and negotiates SATA drives up to 6 Gb/s. For pure HDD ZFS pools and Unraid arrays in 2026, it remains one of the best values on the used market.
Does an expander slow down hard drives?
Not in any practical sense. A SAS2 expander tops out at 6 Gb/s per lane, and no single hard drive saturates that. Even a 24-bay HDD shelf behind a single SFF-8087 uplink rarely stresses the expander’s bandwidth ceiling. SSDs are the workload that can outgrow an expander, which is why SAS3 cards like the Intel RES3FV288 exist.
Is a SAS3 expander better for SSDs?
Yes. A SAS3 expander delivers 12 Gb/s per lane, which is enough to feed a six-drive SATA SSD pool at full speed. The Intel RES3FV288 and the LANPAN AEC-82885T both support SAS3 12 Gb/s and dual uplinks for cascading, which is the right configuration for SSD-heavy pools or mixed SSD-and-HDD tiered storage.
Can I use a used enterprise SAS expander safely?
Yes, with verification. Check the board revision against the model number, ask the seller for the firmware version sticker, inspect the connector pins for damage, and buy from a seller with a return window. Test the card under load (a full zpool scrub) within the first week so you can return it if a channel is dead.
Final Verdict: Which SAS Expander Should You Buy?
For most homelab builders running TrueNAS or Unraid on an HDD-heavy chassis, the Intel RES2SV240 remains the best SAS expander for storage servers in 2026. It pairs cleanly with the LSI 9211-8i and 9300 series HBAs, ships with cables, and has the deepest community support of any card in this roundup.
If your workload is SSD-heavy or you need 24+ drives behind a single HBA, step up to the Intel RES3FV288 for dual-uplink cascading, or the HP 761879-001 for a renewed ProLiant-compatible SAS3 card at a tighter budget. For legacy ProLiant builds on a tight budget, the HP 468406-B21 is still the cheap splitter that keeps older RAID controllers useful.
Whichever card you pick, plan an extra 30 minutes for the IT-mode flash on your HBA, label every cable before you power on, and run a full zpool scrub within the first week. Those three habits will save you hours of troubleshooting and protect your data the first time a drive channel misbehaves.
