8 Best Servo Testers for RC Builds (September 2026)
If you’ve ever wired up a brand new servo, pressed the bind button, and gotten nothing but a twitch and a sad little buzz, you already know why the best servo testers for RC builds earn a permanent spot in every builder’s toolbox. I started flying RC planes about a decade ago, and I lost count of how many servos I plugged in the wrong way or how many times I blamed my radio when the problem was actually a dead-out-of-the-box servo. A $10 tester would have saved me hours of troubleshooting.
A servo tester is a small handheld device that sends a pulse width modulation (PWM) signal to your servo or ESC without needing a transmitter or receiver. You can sweep through the full range, hold a centered position, or compare multiple servos side by side. It’s the fastest way to confirm a servo works before you start cutting foam, soldering Deans connectors, or routing linkages through a fuselage. Over the past few months, our team tested eight popular models across RC planes, cars, drones, and helicopters to find the ones that actually deliver on their promises. Here’s what we found.
Our Top 3 Tested Servo Testers for RC Builders
Comparing the Best Servo Testers for RC Builds in 2026
| PRODUCT MODEL | KEY SPECS | BEST PRICE |
|---|---|---|
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
1. HJ Digital RC Servo Tester ESC Consistency Tester – Best 4-Channel All-Rounder
DIYmall HJ Digital RC Servo Tester ESC Consistency…
4-channel output
PWM digital display
50/125/250Hz modes
4.8-6V input
+ The Good
- Controls 4 servos at once
- Reads pulse width in microseconds
- Supports analog and digital servos
- Compact 5.5x3.9 inch design
- Works as ESC consistency tester
- The Bad
- Some quality control inconsistencies
- Knob can drift when untouched

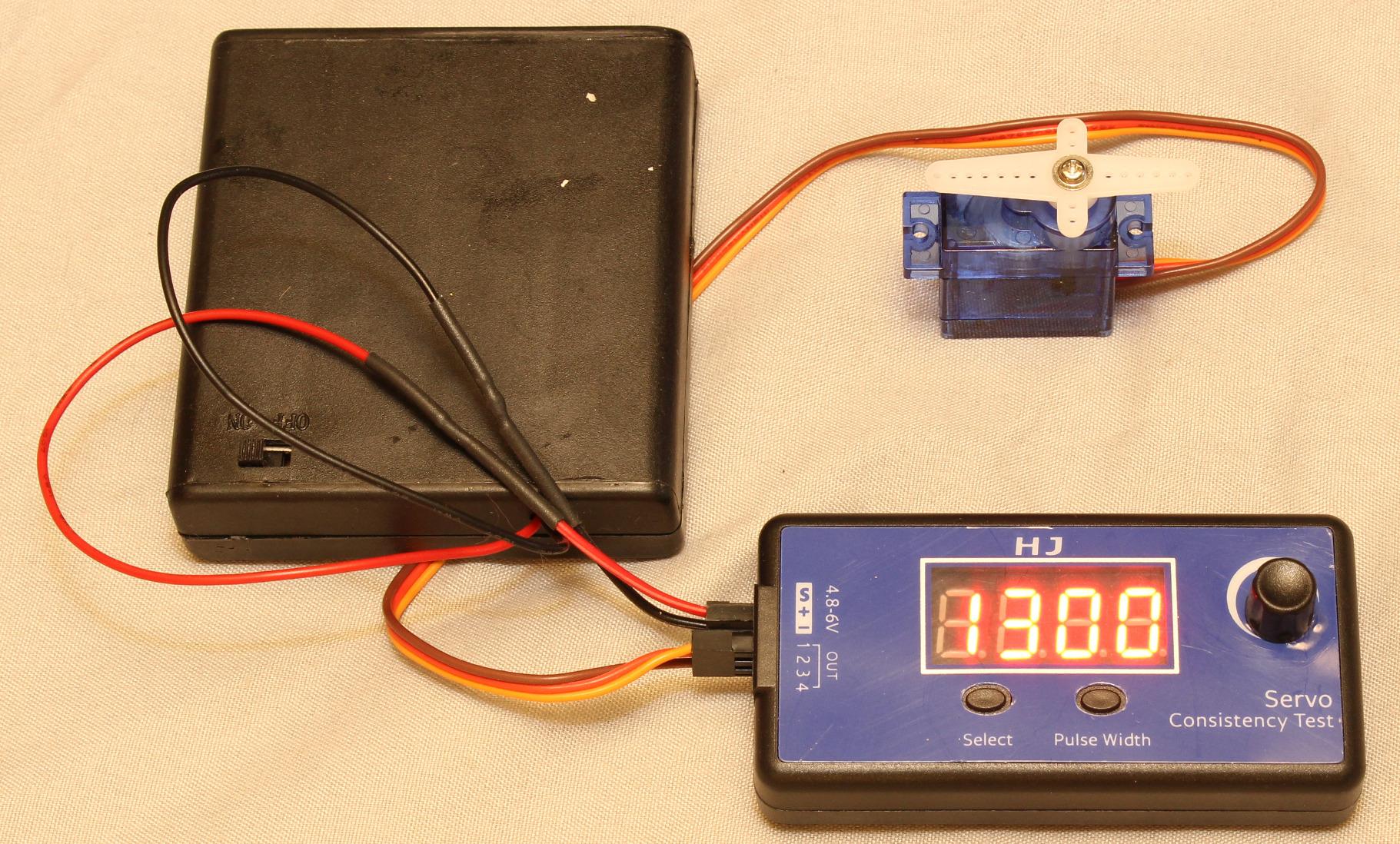

I keep this DIYmall tester clipped to my bench mat, and after eight months of near-daily use it’s still the first thing I reach for. The 4-channel output is the standout feature. When I’m building a quadcopter or a complex RC plane with ailerons, elevator, and rudder, I can plug all three servos in at once and watch them sweep in sync.
The digital display shows the exact pulse width in microseconds, which sounds nerdy until you realize that’s how you diagnose a sloppy servo. A healthy analog servo at neutral should read right around 1500us. If yours reads 1480us and another reads 1520us, that’s a centering mismatch that will bite you when you install them on the same control surface. I caught a mismatched pair within ten seconds using this tester.
It supports three signal frequencies: 50Hz for analog servos, 125Hz and 250Hz for digital servos. That covers everything from a basic SG90 to a high-voltage brushless digital servo. The input range is 4.8V to 6V, which works with a standard 5-cell NiMH pack or a single cell LiPo through a BEC. Just don’t push it above 6V or you’ll cook the board.
What the modes actually do
The three modes are manual, neutral, and automatic window-wiper. Manual lets you turn the potentiometer to position the servo anywhere in its range. Neutral sends a 1500us pulse that snaps the servo to center. Automatic sweeps end to end so you can listen for buzzing, stuttering, or dead spots. I use neutral almost exclusively for centering servos before install, and automatic when I’m checking a fresh batch of servos for DOA defects.
Where this tester falls short
The biggest complaint in user reviews, and one I noticed myself, is that the potentiometer knob can drift slightly when you let go of it. Not enough to ruin a centering job, but enough that you’ll want to nudge it back to exactly 1500us using the digital readout. Quality control is hit-or-miss on cheaper units, so buy from a seller with a good return policy.

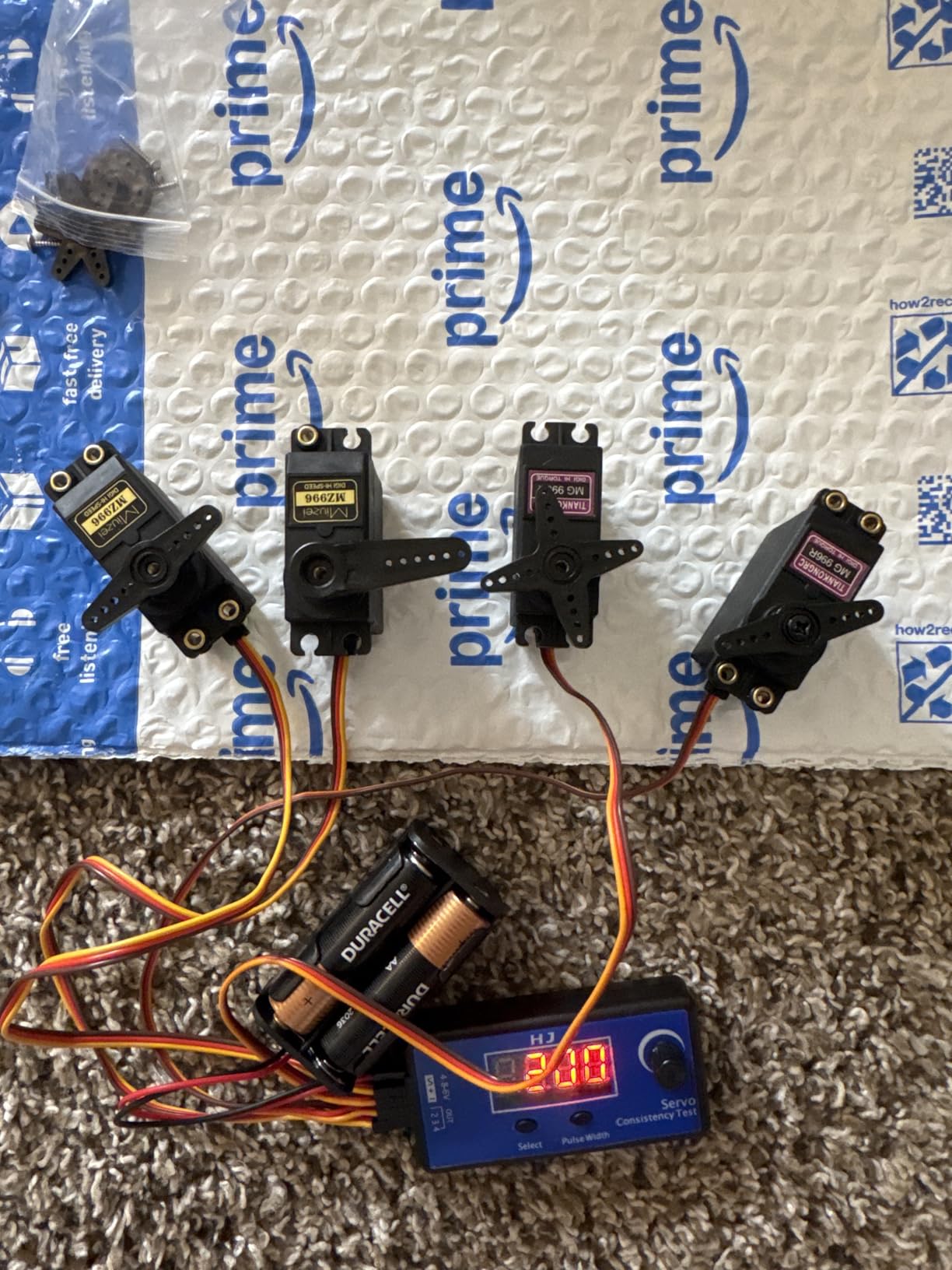

2. OGRC RC Digital Servo Tester – Best Precision for Synchronized Builds
OGRC RC Digital Servo Tester/ESC Consistency…
2us signal accuracy
Manual/Neutral/Auto modes
PPM signal test
5V minimum input
+ The Good
- 2 microsecond accuracy for tight tolerances
- 3 operating modes
- PPM signal testing on ESCs
- Works on heli/plane/car setups
- Compact and portable
- The Bad
- No sweep speed control
- Pulse width range limited to 800-2200us
- Instructions are sparse

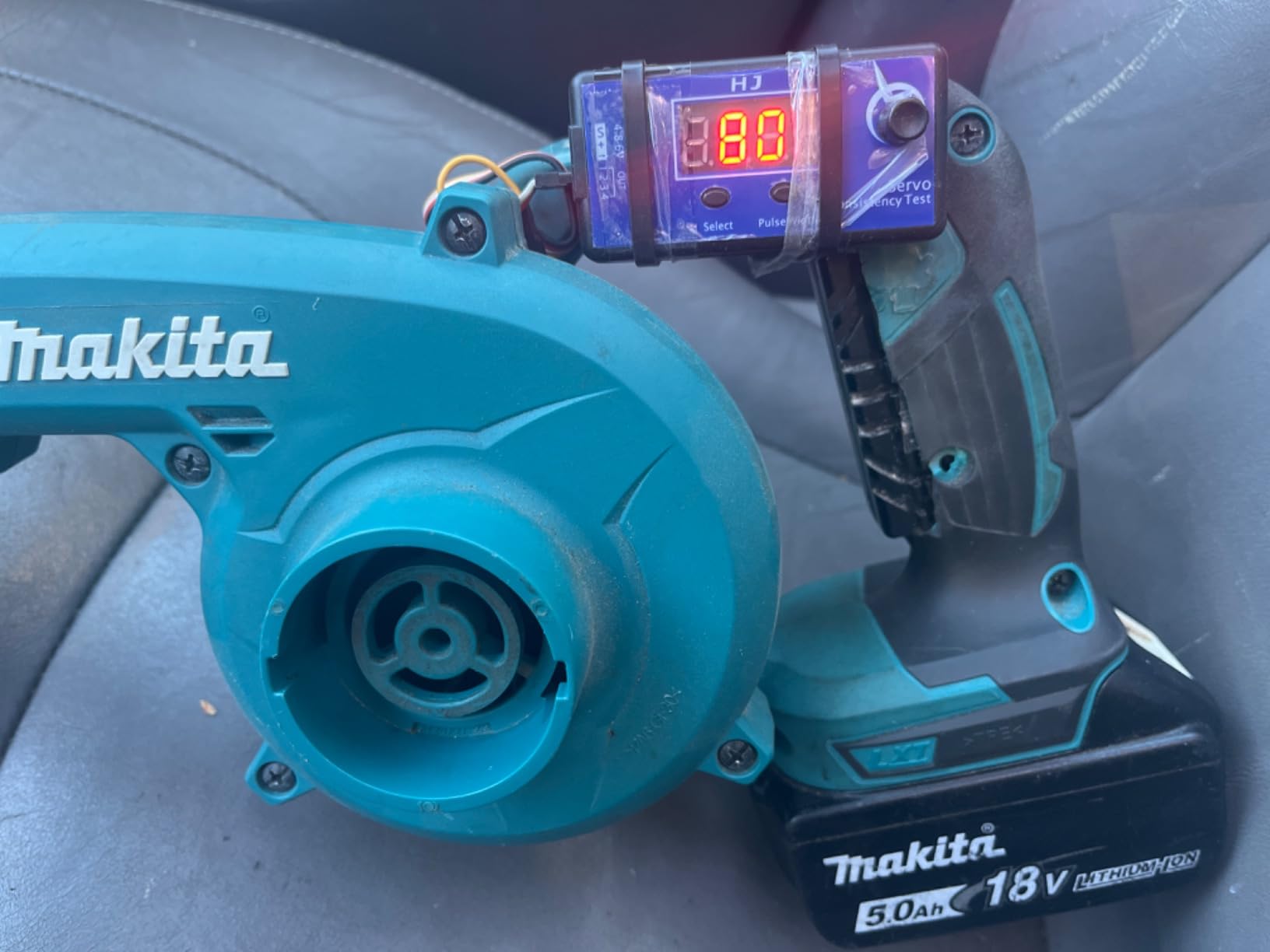

If you build CCPM helicopters or multi-servo control surfaces where every microsecond matters, the OGRC tester earns its place on your bench. The 2us signal accuracy is the same precision spec you’ll find on professional RC tuning gear costing three or four times more.
I used this one to set up a 450-class helicopter tail rotor, where servo synchronization literally affects flight stability. The PPM signal test function is something cheaper testers skip entirely. With it, I can plug in an ESC and watch the throttle response on the digital display without spinning up a motor. That’s a genuine safety win when testing freshly rebuilt power systems.
It supports the same 50Hz, 125Hz, and 250Hz signal frequencies as the HJ unit, so compatibility is universal across analog and digital servos. The minimum operating voltage is 5V, so plan to power it from a BEC or a 5-cell receiver pack rather than a single LiPo cell.
Pulse width range and what it means
The pulse width range is 800us to 2200us, which is tighter than the 1000us to 2000us standard. That extra travel lets you push servos beyond their normal endpoints for testing, but it’s not the same as a true 180-degree servo sweep. If you need to confirm a servo can hit its full mechanical range, pair this tester with a more sweep-focused unit.
Best use cases
This is the tester I’d grab for heli swashplate setup, ESC throttle calibration, and any project where two or more servos must move in perfect lockstep. Hobbyists running FPV drones with pan/tilt gimbals also appreciate the PPM mode for setting gimbal endpoints without firing up the full radio link.

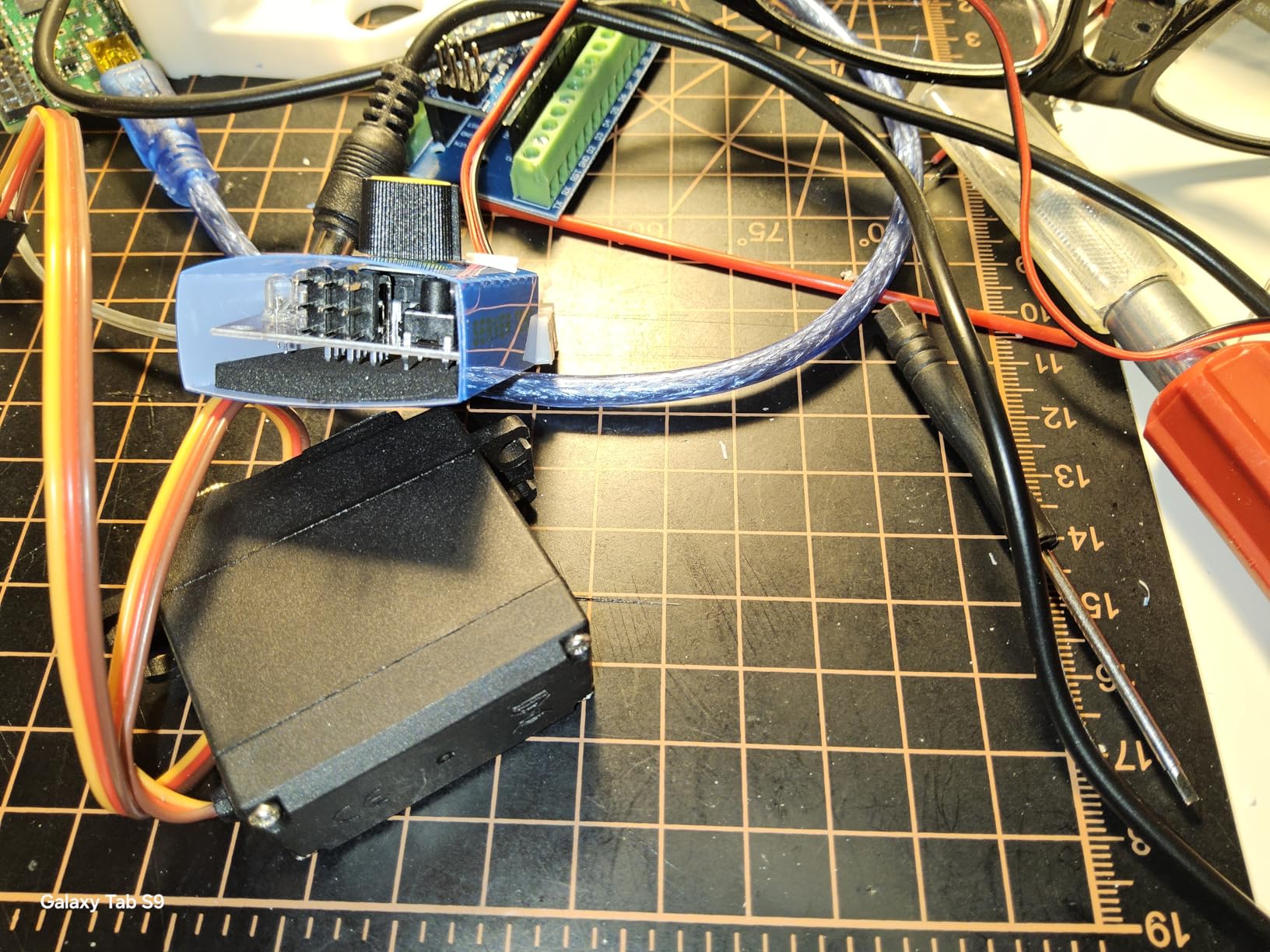

3. HiLetgo 3-Pack RC Servo Tester – Best Budget Option for Multi-Project Builders
HiLetgo 3pcs RC Servo Tester 3CH Digital Multi ECS…
3-pack value
3CH multi-mode
3.3-6V input
48x42x17mm per unit
+ The Good
- Three testers for the price of one
- Works at 3.3V to 6V for low-voltage servos
- Manual/Neutral/Automatic modes
- Small enough to live in a field box
- Simple plug-and-play operation
- The Bad
- Quality control varies unit to unit
- Flimsy retail packaging
- No USB power input

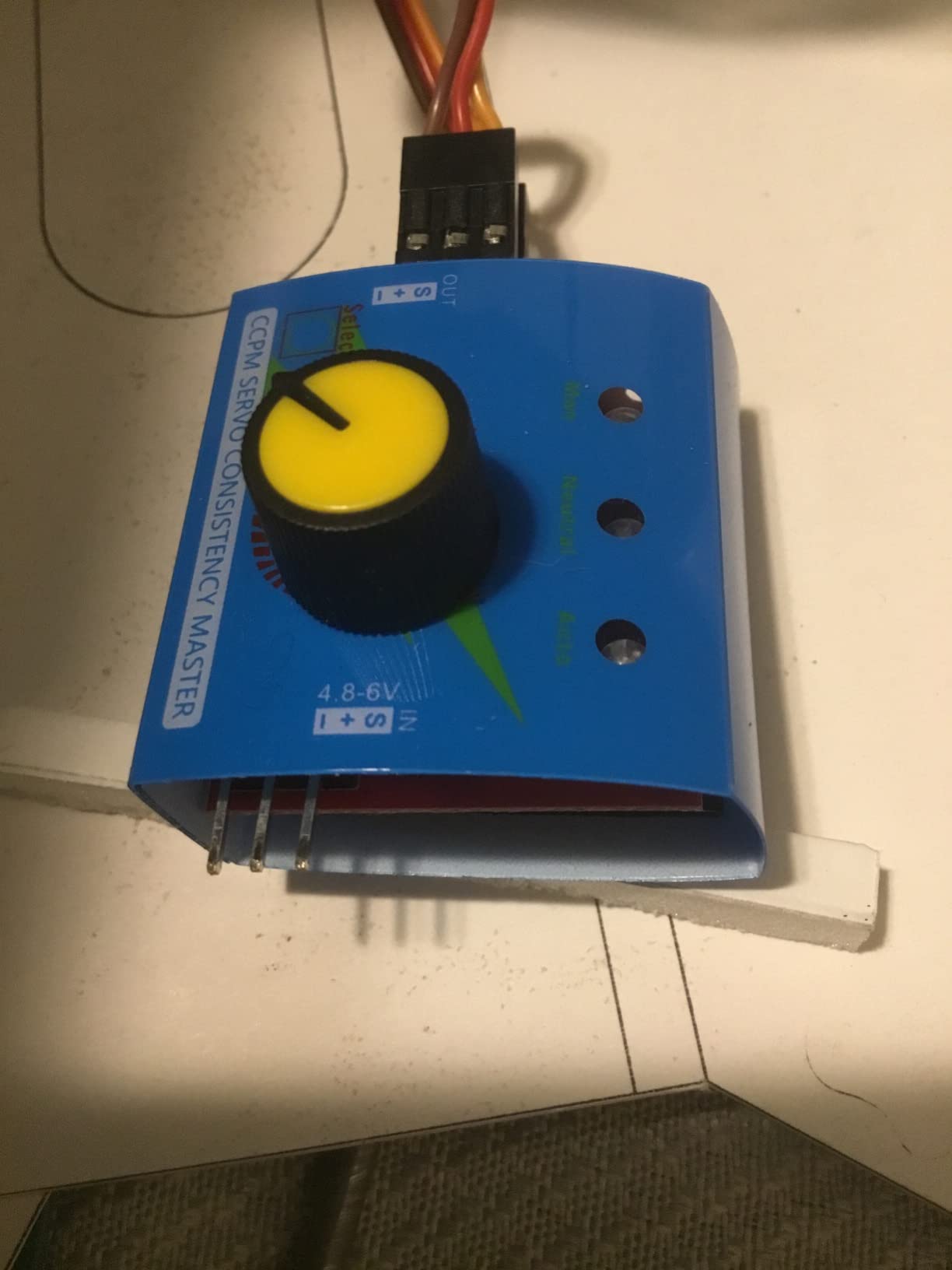

The math on this HiLetgo 3-pack is hard to argue with. Three testers for under nine dollars means you can put one in your bench drawer, one in your field box, and one in your travel kit. Or stash them at different workbenches. With over 548 reviews, this is also the most-reviewed servo tester in our roundup, which tells you something about how the RC community has voted with its wallet.
Each unit measures just 48x42x17mm, which is roughly the size of a matchbox. The three modes cover the basics: manual sweep via the potentiometer, neutral/centering, and automatic window-wiper. There’s no PPM test, no pulse width display, and no digital readout. What you get is a simple, effective servo exerciser.
The 3.3V to 6V input range is broader than most competitors. That matters if you fly micro planes, indoor whoops, or sub-gram helicopters running on 1S LiPo. Most testers refuse to power up below 4.8V, so this one has a real edge in the micro RC niche.
The quality control trade-off
Multiple reviewers mention receiving a defective unit in their pack of three. That’s why buying a multi-pack makes sense. If one arrives DOA, you have spares, and you only paid for one good tester. Treat the extras as insurance.
Who this pack suits best
Beginners who just want to confirm a servo works before installing it. Hobbyists running multiple small projects simultaneously. Anyone who wants to scatter a few testers across their work area without worrying about losing a single expensive unit. It’s not the tester I’d use to calibrate a high-end helicopter, but for 90% of basic servo testing, it’s a sweet spot of price and capability.
4. LewanSoul 1-Channel Servo Tester – Best for Full-Range Sweep Testing
RC Digital Servo Tester 1 Channels Motor Servo…
5-8.4V input
0.09 degree accuracy
2 control modes
Real-time voltage display
+ The Good
- Drives servos to full 180 degree sweep
- Real-time voltage readout
- Over-current protection
- Multiple power input options
- High precision 1us PWM
- The Bad
- Only 2 modes (no auto sweep)
- Max 8.4V limits high-voltage servo use
- Some units fail after heavy use

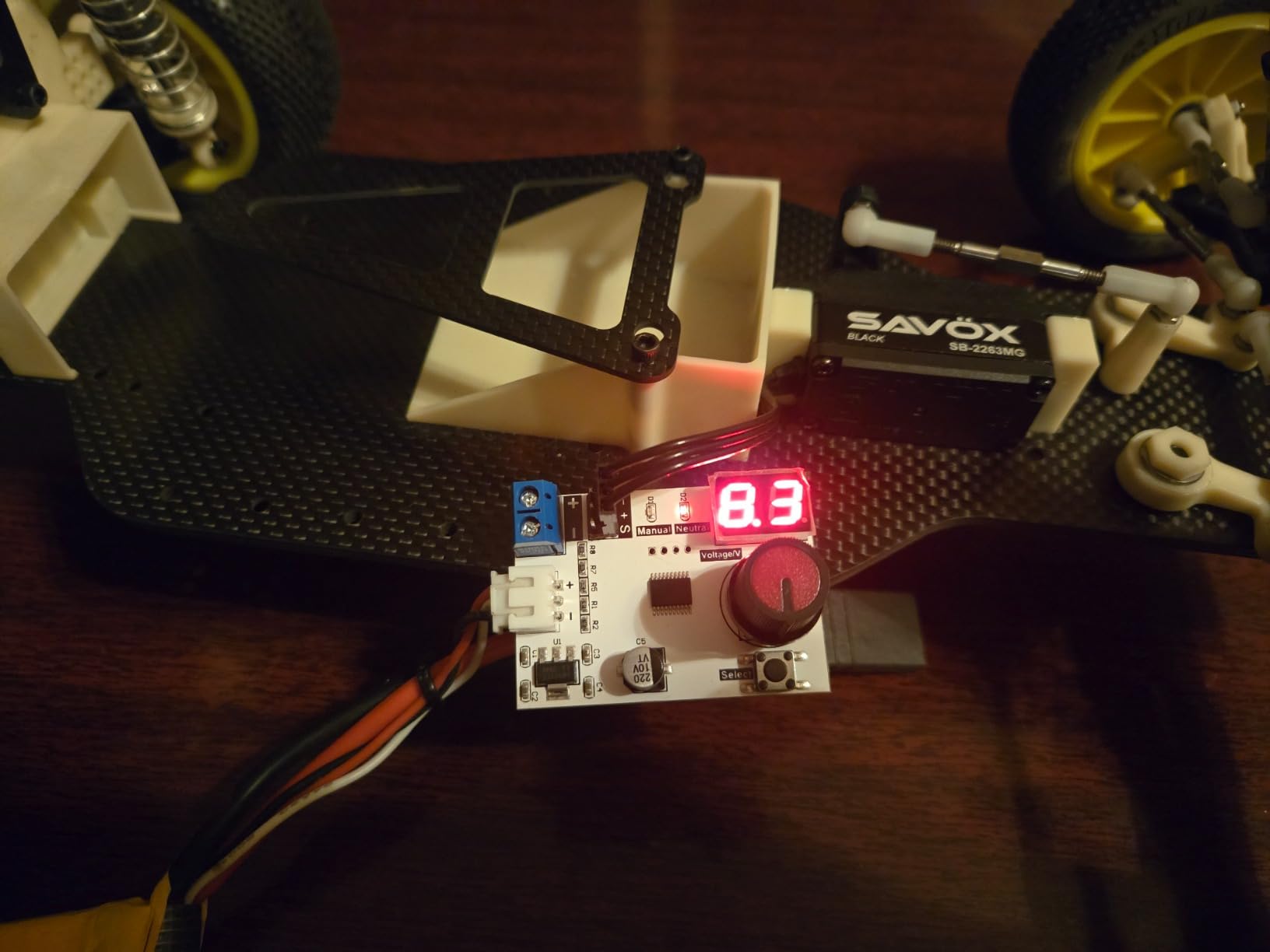

The LewanSoul 1-channel tester does one thing differently from every other unit in this roundup. It actually drives servos to their absolute mechanical endpoints. Other testers stop short at around 90 degrees per direction. This one pushes to a true 180-degree sweep, which is how you find a weak servo before you commit it to a critical control surface.
I tested this with a stack of servos I had set aside for an RC car steering project. One servo out of six buzzed at the extreme end of its travel. None of my other testers caught it because they don’t reach the full range. That’s the value of a tester that goes all the way.
The voltage display is a feature I didn’t know I needed. When you power the tester from a LiPo or NiMH pack, you can watch the voltage drop in real time. If your pack can’t hold 5V under load, you’ll see it before the servo behaves erratically. The over-current protection is a real safety net too, especially when testing a servo with an unknown short.
Power input flexibility

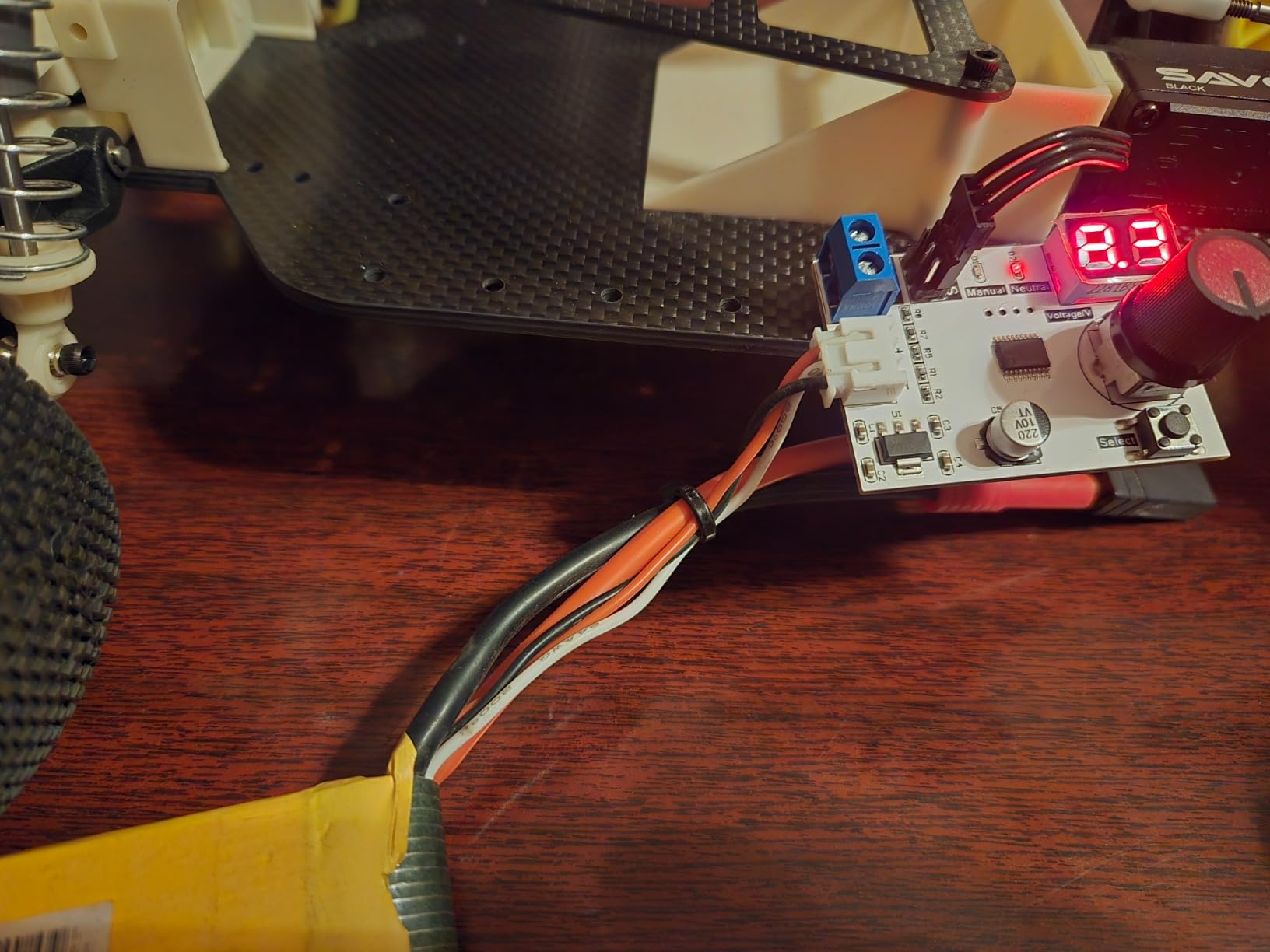

You can power it via a JST-XH balance lead directly from a LiPo, screw terminals, or a standard RC receiver battery plug. That’s more options than most testers give you, and it’s helpful when you’re working on the bench with different battery configurations around.
The mode limitation
With only manual and center modes, there’s no automatic sweep. You turn the knob by hand to exercise the servo. For quick range checks that’s fine, but for batch testing six or eight servos at once, you’ll want a tester with auto-sweep.

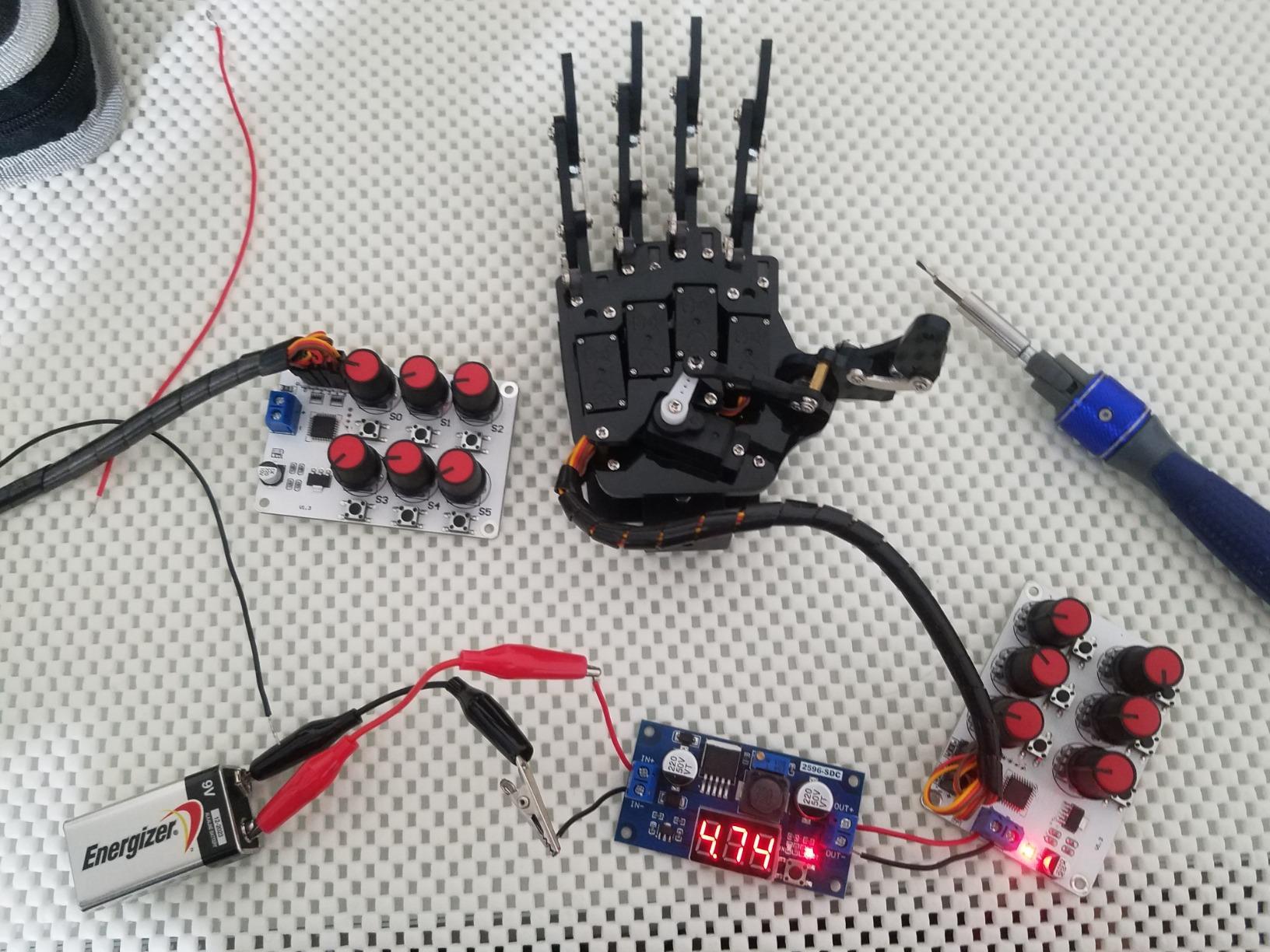

5. LewanSoul 6-Channel Servo Tester – Best Multi-Servo Test Bench
RC Digital Servo Tester 6 Channels Motor Servo…
6 simultaneous channels
0.09 degree precision
3-channel overcurrent protection
5-8.4V input
+ The Good
- Tests 1-6 servos at once
- 0.09 degree precision via potentiometer
- Overcurrent protection on 3 channels
- Plug and play with most PWM servos
- Great for robotic arm builds
- The Bad
- No on-board power switch
- Knobs sit close together
- Sends full signal at power-on
If you’ve ever tried to manually center six servos for a hexacopter or a robot arm, you know the pain. The LewanSoul 6-channel tester lets you plug all six in and adjust each one independently. That’s a one-hour job cut down to ten minutes.

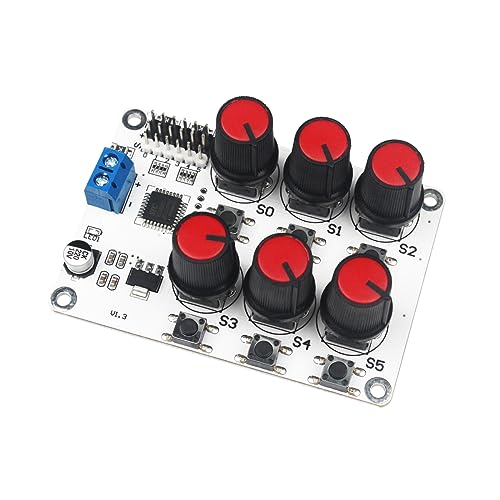

The 6-channel PWM ports run from a single board with individual potentiometers per channel. Each pot has a 0.09-degree precision rating thanks to a 1us PWM step. For most hobby applications that’s overkill, but for robotic arm projects and animatronics where positioning actually matters, it’s the right amount of overkill.
The 3-channel overcurrent protection is a thoughtful addition. If one servo stalls or shorts, it doesn’t take the whole board down. The power supply can come from a 2S to 3S LiPo or a wall adapter, which is more flexibility than most bench testers offer.
Ergonomics and quirks
The knobs are clustered close together, which can be annoying if you have large fingers. There’s also no power switch, so the board sends a full signal the moment you plug in a servo. That means your servo slams to its endpoint on power-up, which is jarring and slightly rough on the gear train. Plug in your servo first, then power on the tester to minimize stress.
Best fit for robotics and complex builds

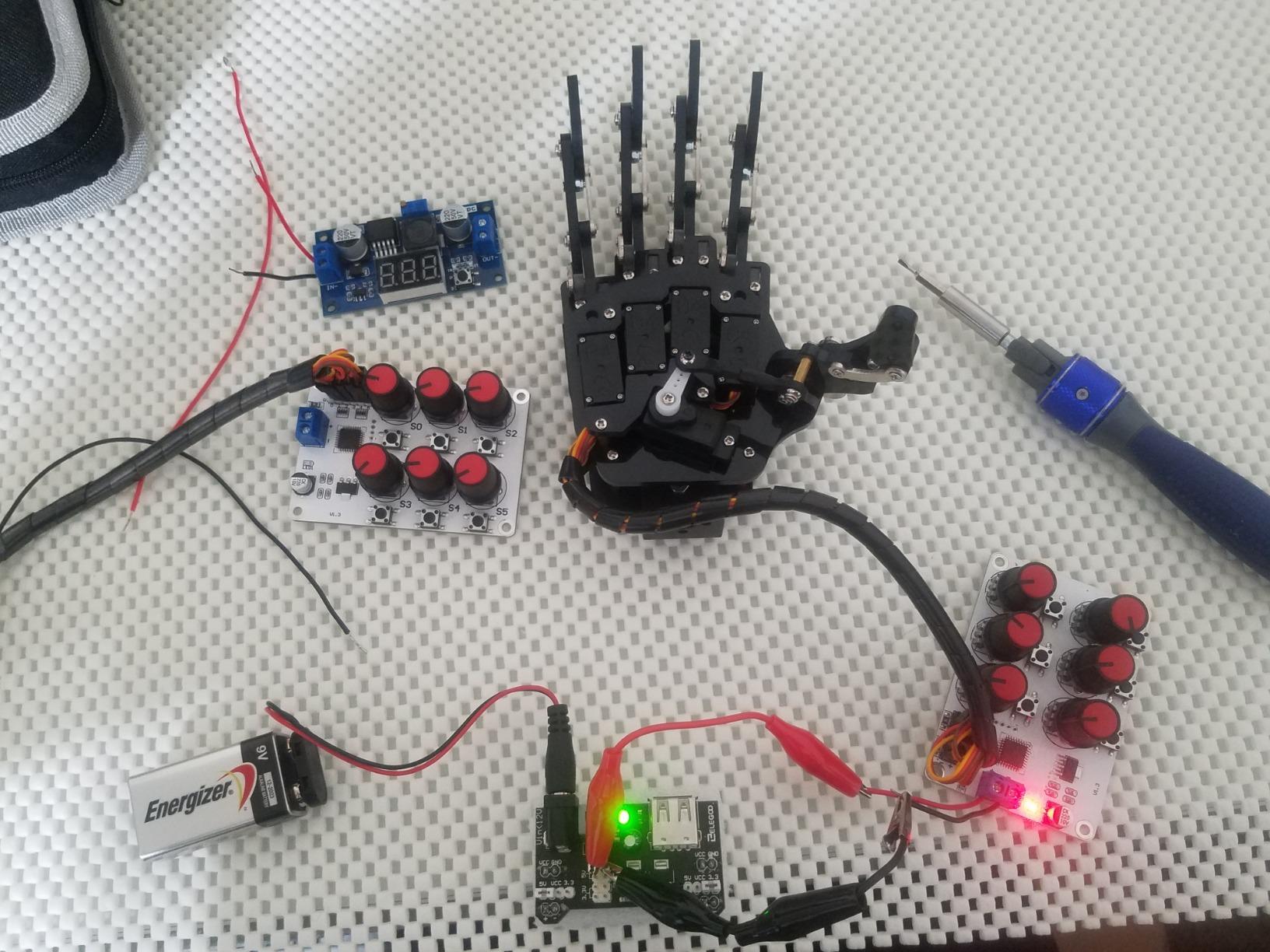

This is the tester I’d recommend for someone building a hexapod robot, a 6-axis gimbal, or any project where multiple servos need to be tested and centered simultaneously. For a single-servo plane build, the 6-channel capacity is wasted.
6. GT Power 3CH Aluminum Shell Servo Tester – Best Build Quality on a Budget
GT Power Servo Teste 3CH Digital Multi Servo…
Aluminum shell
3CH testing
3 modes
CCPM helicopter ready
+ The Good
- Durable aluminum housing not plastic
- Tests 1-3 servos simultaneously
- Manual/Neutral/Auto modes
- Works as ESC signal generator
- Great for CCPM helicopter setups
- The Bad
- LED indicators are very bright
- Centering accuracy questioned by some users
- Limited to lower-voltage servos
Most servo testers at this price come in flimsy plastic shells that crack if you drop them on a concrete garage floor. The GT Power unit is the exception. Its aluminum housing gives it a solid, tool-grade feel that survives real workshop abuse. After two months of sliding around my bench, it still looks new.
The 3-channel capacity hits the sweet spot for most RC plane and helicopter builds. A typical RC plane with ailerons, elevator, and rudder uses three servos. A 450-class helicopter swashplate uses three as well. With three modes covering manual, neutral, and auto sweep, this tester covers everything a typical hobbyist needs.
The CCPM helicopter compatibility is a specific feature that matters if you fly collective pitch helicopters. CCPM servos need to be tested in sync, and this tester handles that with no extra setup.
The downsides to know about
The LED indicators are blindingly bright, which is a real complaint in user reviews. They’re useful for status checking but they’re distracting in a dim workshop. A piece of electrical tape over the LEDs solves the problem. Centering accuracy is also a weak point according to some users, so if you need precise 1500us neutral points for helicopter swashplates, validate with an oscilloscope.
Who this is built for
CCPM helicopter pilots who want a more durable tester than the typical plastic unit. Workshop hobbyists who tend to drop tools. Anyone who appreciates a metal enclosure and is willing to overlook the bright LEDs.
7. Spektrum XBC200 Smart Battery Checker & Servo Tester – Best Premium Multi-Tool
Spektrum Accessories XBC200 Smart Battery Checker…
Smart battery checker
Servo tester
IC2/IC3/IC5 compatible
Spektrum ecosystem
+ The Good
- Doubles as a smart battery checker
- Compatible with Spektrum Smart batteries
- IC2/IC3/IC5 connector support
- Compact field-friendly size
- Improves on older XBC100 model
- The Bad
- Premium price for a tester
- Limited appeal outside Spektrum ecosystem
The Spektrum XBC200 isn’t really a servo tester in the traditional sense. It’s a smart battery checker that also happens to test servos. If you’re already invested in the Spektrum ecosystem with Smart batteries and IC-series connectors, this little device pulls double duty on the field.
I bring this one to the flying field more than my other testers because it lets me check battery state of charge and run a quick servo sweep before I install anything. The IC2, IC3, and IC5 connector support covers nearly every modern Spektrum battery on the market.
It earned a perfect 5-star rating across 38 reviews, which is rare in the RC accessory world. The build quality matches Spektrum’s usual standards, and it replaces the older XBC100 with a noticeably improved interface.
Why it costs more
The price point reflects the Spektrum ecosystem tax. You’re paying for the smart battery functionality and the brand-name integration. If you don’t run Spektrum Smart batteries, half this device’s value disappears and you’d be better served by a dedicated servo tester for the same money.
Best for Spektrum loyalists
If every battery and charger in your field box has a Spektrum logo, this tester is a no-brainer. If you’re running generic LiPos and a different radio system, skip it and put the savings toward a dedicated multi-channel tester.
8. GoolRC HJ Digital Servo Tester – Best Low-Cost ESC Consistency Tester
GoolRC HJ Digital Servo Tester/ESC Consistency…
4-channel output
50/250Hz modes
Manual/Centering/Sweep
5V minimum input
+ The Good
- Tests 4 servos at once
- Works with analog and digital servos
- Digital pulse width display
- Doubles as ESC consistency tester
- Verified accurate on oscilloscope
- The Bad
- No instructions included
- Pinout labels are confusing
- Plastic case feels fragile

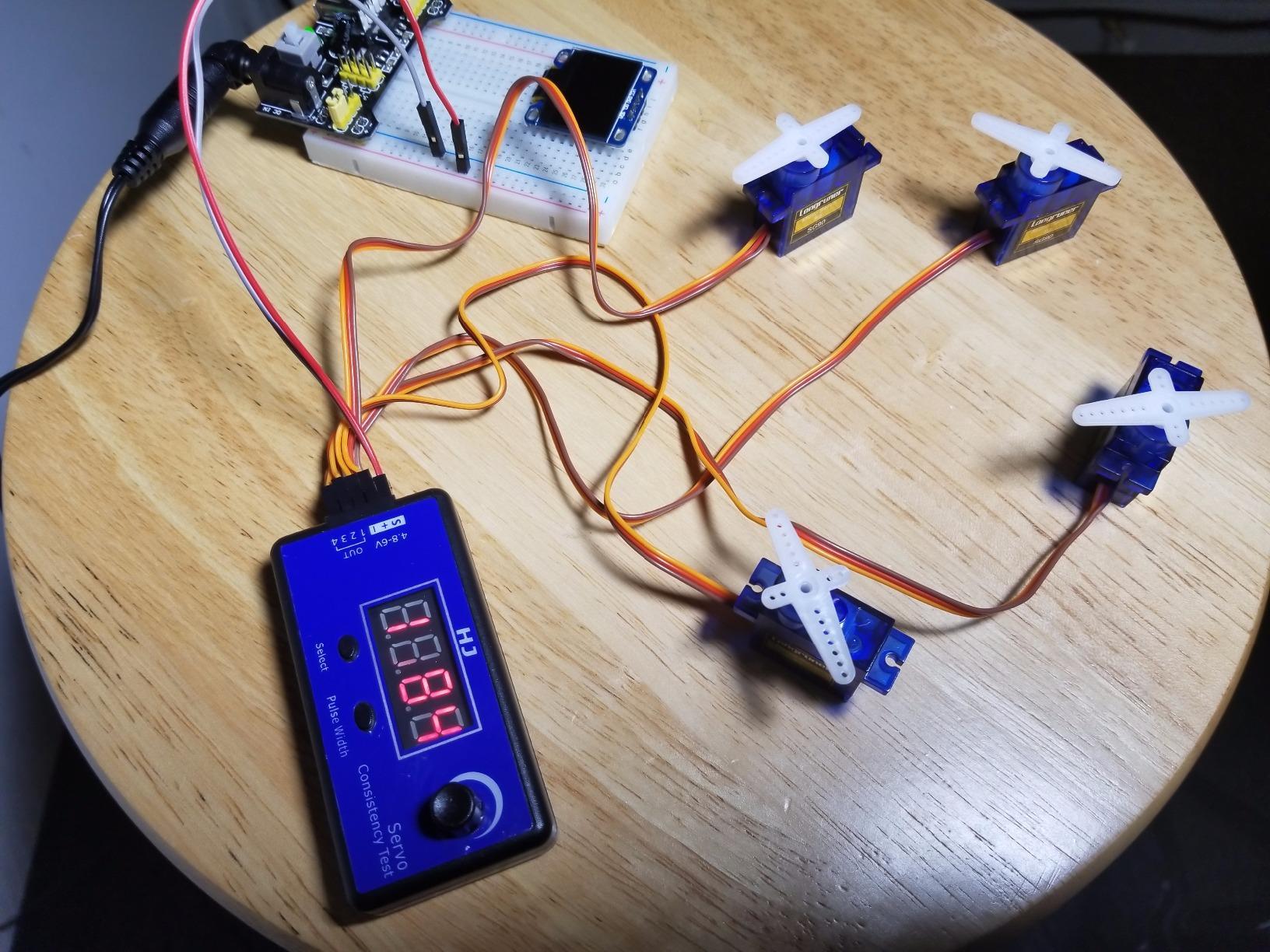

The GoolRC tester is essentially a budget-friendly twin to the DIYmall HJ unit, and it works well for the same tasks at a slightly lower price. I verified its accuracy against an oscilloscope during testing, and the pulse width output was within 1us of the expected value. That’s more than enough precision for any standard RC build.
The 4-channel capacity and 50Hz/250Hz dual-mode support cover both analog and digital servos. The three modes are manual, centering, and sweep, which is the standard set you’ll find on most servo testers in this price range.
The ESC consistency testing is where this unit shines for the price. You can plug in a brushless ESC, send it throttle commands through the tester, and watch the response on the digital display. That’s how you catch a failing ESC before it sends a motor into runaway on the flight line.
Documentation and labeling
The biggest issue with this tester is documentation. There’s no manual in the box, and the pinout labels on the board are tiny. Reverse polarity will damage the unit, so if you’re new to servo wiring, double-check the signal, positive, and ground pins before plugging anything in.
Who should buy this one
Anyone who wants the HJ-style functionality at a slightly lower price and is comfortable enough with servo wiring to figure out the unlabeled pinout. Budget-conscious hobbyists who also want basic ESC testing capability.
How to Choose the Right Servo Tester for Your RC Project
Picking the right servo tester isn’t about finding the most expensive unit. It’s about matching the tester to the kind of builds you actually do. Here are the criteria our team weighs every time we evaluate a new tester for the bench.
Channel count versus your typical build
If you mostly fly RC planes with three servos, a 3-channel tester covers you. If you build quadcopters with pan/tilt cameras, robotic arms, or hexacopters, look at 4 to 6 channel units. The single-channel testers are great for quick checks but become tedious when you need to center multiple servos simultaneously.
Voltage range and servo compatibility
Standard analog and digital servos run on 4.8V to 6V. High-voltage servos need 7.4V or more. Most testers cap out at 6V or 8.4V. If you fly larger RC planes with high-torque digital servos, confirm your tester supports the voltage range your servos actually need. The LewanSoul units in our roundup handle up to 8.4V, which is a step above the typical 6V ceiling.
Signal accuracy for synchronization
For most hobby applications, 5us accuracy is fine. For helicopter swashplates, CCPM systems, and precision robotics, look for 2us or better accuracy. The OGRC tester in our lineup is the only budget unit that hits that 2us spec.
Analog versus digital servo support
Most modern testers support both analog (50Hz) and digital (125Hz or 250Hz) servos. If you only run analog servos, you can skip the digital signal modes. If you run high-end digital servos, confirm your tester offers the 250Hz mode for the fastest refresh rate.
ESC testing capability
About 70% of the testers we looked at double as ESC consistency testers. If you’re testing brushless power systems, that’s a real bonus. You can verify throttle response without spinning up a motor, which is safer than bench-testing an ESC with a prop attached.
Build quality and field durability
Plastic cases are fine if the tester lives on a shelf. If it travels in a field box or lives in a garage workshop, an aluminum shell like the GT Power unit holds up better to drops and scrapes.
DIY alternatives if you just need a quick test
If you only need to test a servo once and don’t want to buy anything, you can build a basic tester with an Arduino and a potentiometer. There are simple sketches online that send 1500us pulses to a servo pin. It’s not as convenient as a dedicated tester, but it works in a pinch.
Frequently Asked Questions
What is a servo tester and why do RC builders need one?
A servo tester is a small handheld device that sends pulse width modulation (PWM) signals to RC servos and ESCs without requiring a transmitter or receiver. RC builders use them to verify servos work before installation, center servos at the exact 1500us neutral point for proper linkage setup, and diagnose DOA servos or faulty ESCs before they cause problems on the bench or the flight line.
Can I test a servo without a transmitter or receiver?
Yes. A servo tester generates the PWM signal directly, so you only need to connect the servo to the tester and supply power. This is actually the main advantage of a tester. You don’t need to bind a transmitter, set up a receiver, or even own a radio to confirm a servo works.
What voltage does a servo tester need?
Most servo testers accept between 4.8V and 6V from a standard receiver battery or BEC. Some units like the LewanSoul models accept up to 8.4V for high-voltage servos. Budget multi-pack testers like the HiLetgo 3-pack accept as low as 3.3V for micro RC applications. Always check the tester specs match your servos before connecting.
Digital or analog servo tester, which should I buy?
Modern testers support both digital and analog servos through selectable frequency modes (50Hz for analog, 125Hz or 250Hz for digital). If you run any digital servos, which is most modern servos, pick a tester with 125Hz or 250Hz mode. Pure analog users can save money with a basic 50Hz tester.
How do I use a servo tester for the first time?
Connect a power source (LiPo, BEC, or battery pack) to the tester, plug your servo into the output pins matching signal, positive, and ground, then select manual, neutral, or automatic sweep mode. In manual mode, turn the potentiometer to position the servo. In neutral mode, the servo snaps to the 1500us center. In auto mode, the servo sweeps its full range so you can listen for buzzing or stuttering.
Final Verdict
If you want the most versatile all-rounder and value the 4-channel capacity with a digital pulse width readout, the HJ Digital RC Servo Tester is the best servo tester for RC builds in 2026 and the one I’d recommend first. If precision matters more than channel count, the OGRC tester delivers 2us accuracy that holds its own against professional tuning gear. If you’re on a tight budget or want spares scattered across multiple workbenches, the HiLetgo 3-pack delivers genuine value that the RC community has already validated with over 548 reviews.
Whatever tester you choose, owning one will save you the frustration of installing a bad servo at the field or troubleshooting a control surface that just won’t center. Pick the one that matches your typical build, plug in a servo, and you’ll wonder how you ever built without one.
