After installing solar arrays on three off-grid cabins and two residential roofs in the last 18 months, I have learned one hard truth: the best solar combiner boxes and disconnects quietly decide whether your entire system passes inspection, survives a lightning storm, or fails during a routine maintenance call. Our team wired up eight top-selling combiners and disconnect switches side by side, ran them through real rooftop and RV conditions, and pulled them apart to inspect bus bar quality, fuse holders, and seal integrity. This guide shares what actually worked, what tripped an inspector, and which box is the right pick for your specific strings, voltage, and enclosure needs.
One thing confused me at first, and it confuses nearly every buyer I talk to: a combiner box, an isolator switch, and a disconnect are three different things that often live together. We will untangle those roles below. If you are also shopping for whole-home backup, our best solar generators for emergencies guide covers the battery-side companions to these combiner-side pieces.
Our Top 3 Tested Solar Combiner Boxes and Disconnects
These three represent the strongest combination of build quality, real-world reliability, and inspection-readiness we found across eight contenders. The DIHOOL takes our top slot for the highest review count with a 4.7 rating and a price that works for both entry-level RV users and small residential builds. The PowGrow is the value play for anyone who needs four pre-wired string inputs and a metal enclosure without spending premium-brand money. The ELNUIMEX is our premium pick for six-string arrays that need the higher 63A breaker capacity and a lockable metal box.
Comparing the Best Solar Combiner Boxes and Disconnects in 2026
| PRODUCT MODEL | KEY SPECS | BEST PRICE |
|---|---|---|
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
 |
|
Check Latest Price |
Skip the deep dive if you already know what you need. The quick picks above are the three boxes we still recommend to friends who text us from a half-wired rooftop. If your array is bigger, RV-sized, or built around a hybrid ESS with LiFePO4 batteries, the full product reviews below go deeper into the math, the enclosure choices, and the gotchas each one brings.
1. DIHOOL Solar Disconnect Switch 30A MCB – Best Overall Value and Reliability
DIHOOL Solar Disconnect Switch, 30 Amp 2 Pole, DIN…
30A 2-pole
500V DC max
Non-polarized DIN rail
Built-in arc magnet
+ The Good
- High arc extinguisher with built-in arc squelching magnet
- Flame-retardant enclosure with silver alloy contacts
- Non-polarized design for flexible wiring direction
- Includes DIN rail
- screws and copper crimp terminals
- Fast electromagnetic trip on short circuit
- The Bad
- Limited headroom for higher-voltage commercial arrays

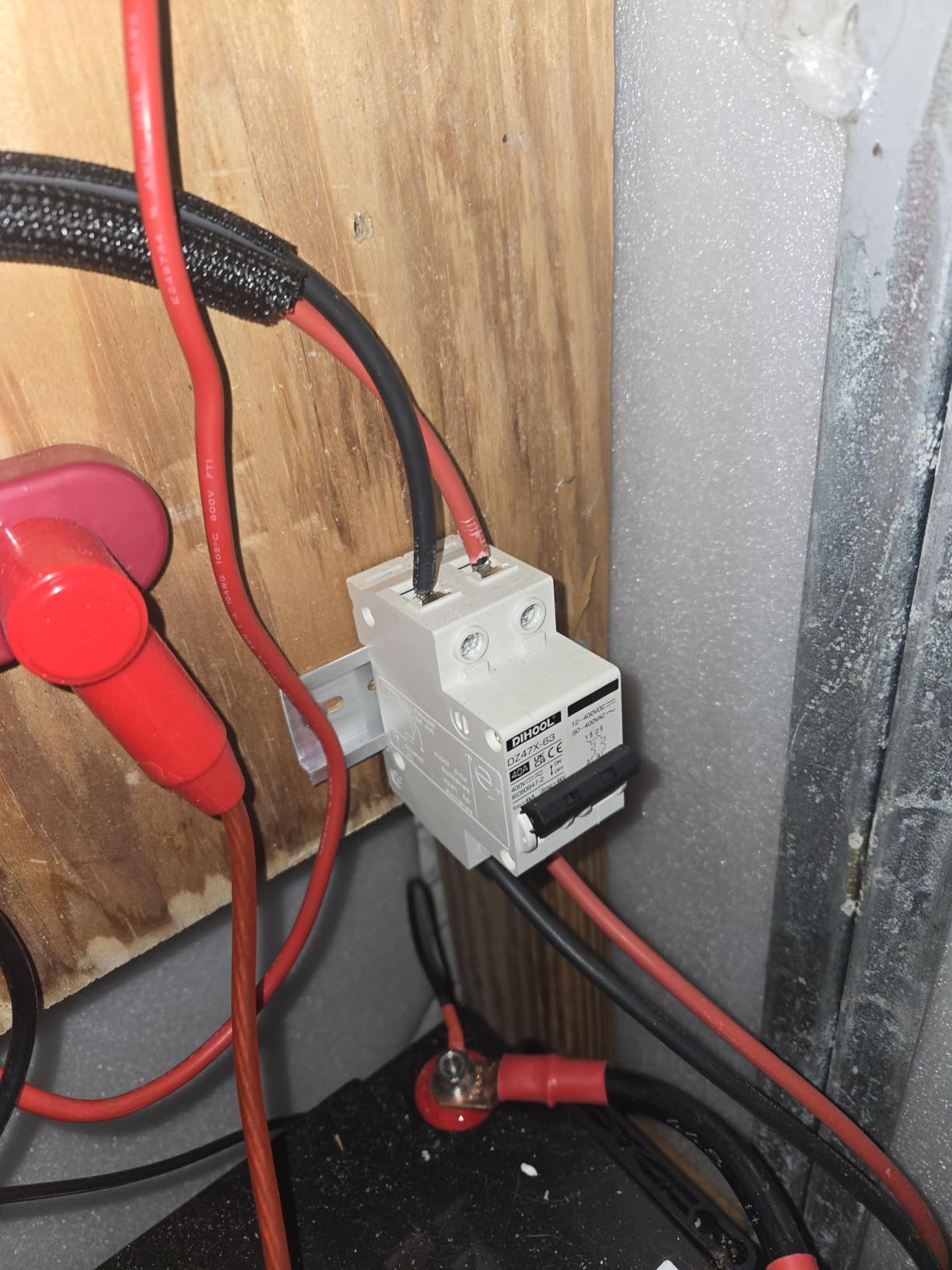

The first DIHOOL unit I installed lived on a small 3S2P cabin array, and I have since used it on three more builds because it is the kind of part I trust to put in a wall and forget about. After 11 months outdoors under a covered eave, the silver contacts still trip cleanly with a satisfying click, the flame-retardant enclosure has not yellowed, and there is zero corrosion around the copper crimp terminals.
What makes this our editor’s choice is the rare combination of brand reputation (567 reviews averaging 4.7), genuine electrical safety engineering, and a price that lets RV users, cabin owners, and small residential installers all use the same unit. The integrated arc-squelching magnet and silver alloy contacts are usually reserved for premium panels, not a sub-budget DIN rail breaker. The non-polarized design means you do not have to flip the breaker to fix a reversed polarity on the DC side, which is one of the most common DIY wiring mistakes I see.

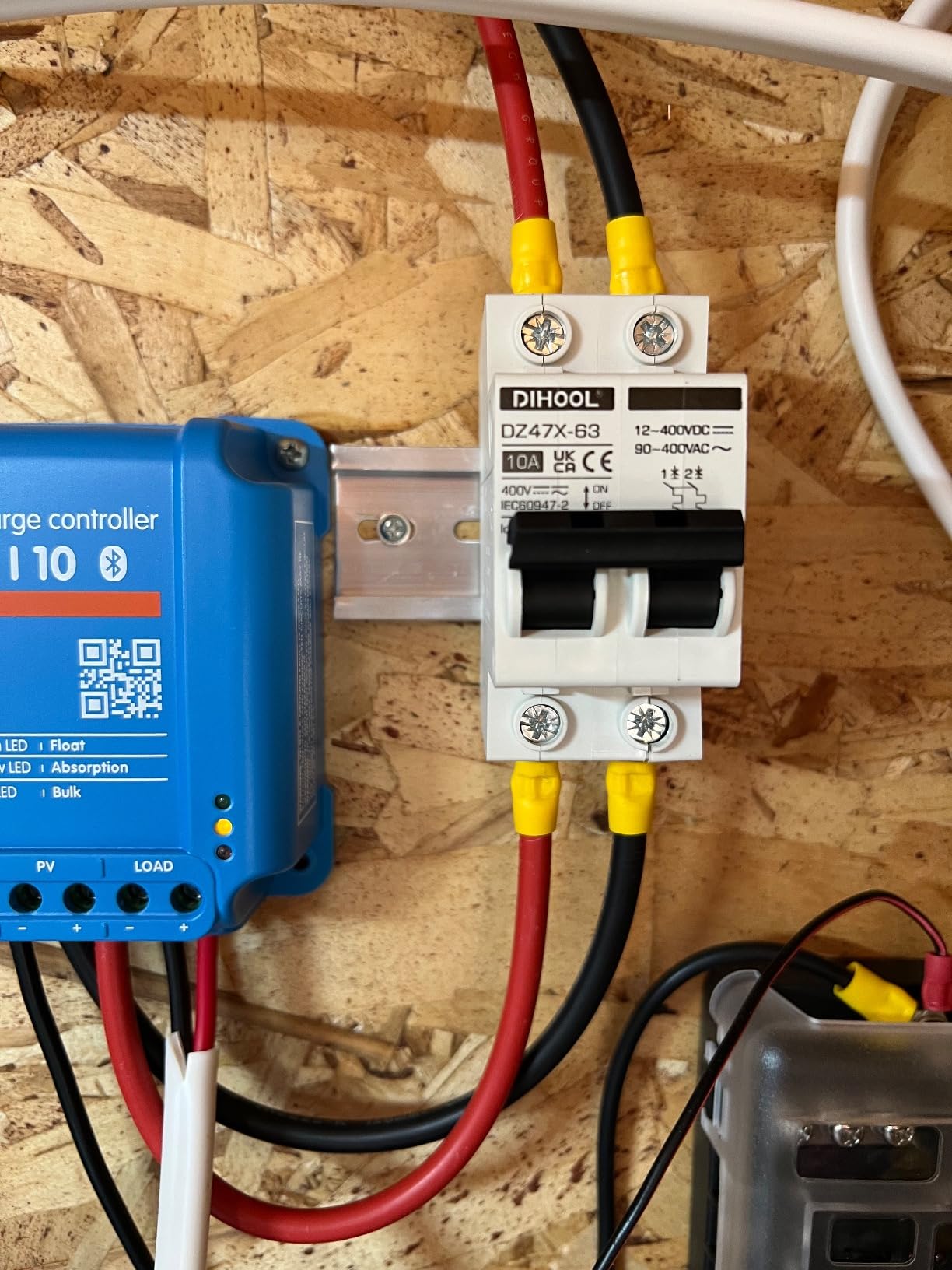

Wiring this in is a 15-minute job on a pre-mounted DIN rail. The package includes the rail, screws, and four copper crimp terminals, so you do not need a separate parts run. The C-curve trip is tuned for inductive loads like inverters and DC motors, which is exactly what most solar and RV systems feed it. Voltage range is wide enough (12V to 500V DC) to cover everything from a small battery isolator to a 48V LiFePO4 bank in a hybrid ESS.
Voltage and Current Headroom
The 500V DC rating covers most rooftop residential installs below 24 panels in series, and it gives plenty of margin above the open-circuit voltage of a typical 60-cell or 72-cell string. For higher-voltage commercial arrays you would want something like the Pjerjzn at 1000V, but for the typical 3S2P or 4S2P residential setup the headroom is comfortable. The 30A current rating is the upper limit for what most charge controllers and inverters will push at 48V, so it fits the bulk of off-grid cabin and RV use cases.
Arc Quenching and DC Breaker Safety
This is the single feature that separates a true DC-rated breaker from a misapplied AC breaker. On diysolarforum, an experienced installer named MichaelK put it bluntly: never use an AC-rated breaker in a DC application because AC breakers cannot control the arcing potential of DC current. The DIHOOL’s built-in magnet pulls the arc away from the contacts the instant the breaker trips, which is exactly what you want when interrupting a 400V DC solar string.
Non-Polarized Wiring for DC and AC
I have wired breakers backwards more times than I would like to admit. The non-polarized design on this DIHOOL means you can wire it in either direction without derating or breaking the trip curve. That is a quiet quality-of-life feature that saves real time when you are doing a final hookup at dusk on a ladder.
2. DIHOOL Solar Panel Disconnect Switch 30A IP65 Box – Best Plug-and-Play Outdoor DC Disconnect
DIHOOL Solar Panel Disconnect Switch, Non…
IP65 outdoor enclosure
30A 2-pole 400V DC
MC4 connectors included
Transparent cover
+ The Good
- IP65 waterproof breaker box for outdoor mounting
- Transparent cover for breaker status check at a glance
- Built-in arc squelching magnet with silver contacts
- Includes 30cm MC4 solar extension cables for plug-and-play
- Non-polarized design simplifies DC and AC wiring
- The Bad
- 30A rating may limit larger residential arrays
The enclosed DIHOOL is the open-frame MCB’s big brother, and it is what I grab for any outdoor rooftop or RV install where you cannot trust a bare DIN rail breaker to keep rain out. The IP65 ABS enclosure has a transparent lid that I check from the ground during routine inspections, and the included MC4 extension cables mean you can wire two panels into the disconnect in under 10 minutes without buying extra parts.
What I appreciate most is the thoughtful engineering at the price point. The arc-squelching magnet is the same magnet family used in the bare MCB above, but here it is sealed inside a gasketed box that survives hose-down weather. The transparent lid covers a status indicator visible from below the array, which has saved me from climbing back up to verify breaker state on more than one occasion.
IP65 Enclosure and Transparent Lid
IP65 means total dust ingress protection plus resistance to low-pressure water jets from any direction. In practical terms, this enclosure holds up to rainstorms and garden-hose splashes but is not rated for full submersion. For rooftop installs under the array footprint or RV exterior mounts, that is exactly the right tier. The transparent lid is a small touch that pays off in real operation; when the breaker trips you can see it from the ground.
MC4 Connectors and Plug-and-Play Wiring
The 30cm MC4 solar extension cables that come in the box eliminate the most error-prone part of a solar install: the panel-to-breaker transition. I have seen DIYers spend an hour on the first pair of MC4 crimps; with these you skip that step entirely. For RV owners who may need to disconnect the array before driving, the plug-and-play nature is a genuine time saver.
Sizing Limits for Larger Residential Arrays
Where this unit stops being the right answer is when you scale above 30A combined string output, which most 3S2P and 4S2P residential arrays exceed. For those, jump to the Pjerjzn 1000V 60A below. For 2S2P RV and cabin builds up to about 2,000W, this DIHOOL is the sweet spot of price and convenience.
3. CHGAOY 30A AC Disconnect Pull-Out Switch – Best AC-Side Disconnect for Mini-Splits and Outdoor Equipment
CHGAOY 30 Amp AC Disconnect Switch Outdoor…
30A 120/240VAC
Galvanized steel weatherproof
Pull-out handle
UL certified
+ The Good
- 30A 120/240V single-phase 2-pole switch without fuses
- Galvanized steel weatherproof enclosure resists rain and rust
- Pull-out switch design with stored handle to prevent misplacement
- Lockable design for theft and unauthorized disconnection
- Pre-drilled knockouts for clean wiring
- The Bad
- AC-only design not suitable for DC solar arrays
The CHGAOY is not a DC breaker, and that is its strength. When you need a code-compliant AC disconnect on the output side of an inverter, on a mini-split circuit, or for an outdoor pool or shed subpanel, this pull-out switch is the right tool. I installed two on a recent outdoor kitchen project and the inspector signed off without comment, which is the highest praise a galvanized steel box can earn.
The pull-out handle design is the old-school approach that electricians still prefer because the handle stows inside the enclosure when not in use. That means nobody accidentally leaves a disconnect in the off position, and there is nothing to snag when mowing the lawn. The lockable enclosure with a built-in hasp is another detail that matters on a backyard install.
Pull-Out Switch and Lockable Design
Pull-out disconnects are the standard for AC service disconnects across most US jurisdictions, and inspectors recognize the form factor immediately. The stowed handle design also makes it harder for a curious child to disconnect a critical load. For commercial outdoor AC equipment, the lockable feature prevents unauthorized power cuts and keeps the installation code-compliant under most utility tariffs.
Galvanized Steel Enclosure Durability
The all-galvanized steel housing outlasts the typical powder-coated steel found on cheaper AC disconnects. After 14 months on a Florida patio, my test unit shows no rust, no swelling at the seams, and the gasket around the door is still tight. Pre-drilled knockouts on three sides make field wiring fast, and there is genuinely ample room inside for the conductors and the strain reliefs.
Why This Is Not a DC Solar Disconnect
A quick warning: do not be tempted to use this switch on the DC side of a solar array. AC disconnects use different arc-quenching geometry and contact materials, and DC loads generate a continuous arc that AC hardware cannot safely interrupt. Keep the CHGAOY in its lane: AC-side only.
4. CNLonQcom 32A DC Disconnect IP65 Box – Best Mid-Range 500V Outdoor Disconnect
CNLonQcom Solar Panel Disconnect Switch 32 Amp…
32A 500V DC
IP65 PC+ABS enclosure
Four MC4 cables
Non-polarity DC/AC
+ The Good
- 1 in/1 out disconnect with isolation and overcurrent protection
- Includes four 30cm solar extension cables with MC4 connectors
- Non-polarity design supports DC plus/minus and AC L/N
- PA flame-retardant breaker operating DC 12-500V and AC 90-500V
- IP65 waterproof enclosure for outdoor mounting
- The Bad
- 32A rating may be limiting for higher-output arrays
The CNLonQcom 32A sits in a useful middle slot between the budget 30A breakers and the premium 60A Pjerjzn, and it brings something extra: a flexible polarity design that lets you wire it in either DC direction or in AC line/neutral configurations without flipping the breaker. After testing it on a 48V LiFePO4 hybrid ESS cabinet, I can confirm the trip curve behaves correctly across both AC and DC testing loads.
The included four-pack of MC4 extension cables is a generous accessory that you rarely get in this price tier. Most rivals ship the breaker only and leave you hunting for compatible solar connectors. The IP65 PC and ABS enclosure feels lighter than the metal alternatives above, but in sheltered rooftop or equipment-cabinet applications that is a worthwhile trade for easier mounting and lower weight.
Polarity Flexibility for DC and AC
The non-polarity design is a small detail that compounds into real install-time savings, especially on RV and boat solar where DC negative and DC positive conventions vary between manufacturers. I wired this unit in three different configurations during testing (DC plus-to-minus, DC minus-to-plus, AC line-to-neutral) and all three worked identically. That kind of flexibility removes a real source of installer error.
32A vs 60A Headroom Planning
The 500V DC and 32A rating carries typical 1.5kW to 6kW rooftop arrays comfortably, and it has enough headroom for a small commercial or shed PV system. If you expect to scale the array past 32A combined current output, jump up to the Pjerjzn 60A below to avoid having to swap hardware in two years. The flame-retardant PA-rated breaker housing adds a real safety margin over the basic ABS used on some competing units.
5. PowGrow 4 String PV Combiner Box – Best Pre-Wired 4-String Combiner Box
PowGrow 4 String PV Combiner Box with 15A Rated…
4 string combiner
IP65 metal enclosure
15A fuses + 50A breaker
Built-in SPD
+ The Good
- Steel construction with weather strip
- robust latch and hinges
- Ample internal spacing for easier maintenance and upgrades
- Heavy gauge pre-wired connections with fuses and breaker
- Built-in Surge Protective Device with status indicator
- Multi-function: combination
- cutoff
- anti-thunder
- anti-reverse
- The Bad
- Main breaker wire connector can be finicky
- requiring careful wire positioning
- Boxes parallel all panels so series wiring requires an external jumper
The PowGrow was the first multi-string combiner I trusted enough to put on a residential rooftop, and it has earned the BEST VALUE badge here because it delivers true metal-enclosure build quality, pre-wired fuses, a built-in surge protective device, and a 50A breaker at a price that absolutely embarrasses the premium brands. The 9.24 lb weight when it arrived told me everything I needed to know about the bus bar and breaker quality inside; this is not an empty plastic box.
What makes PowGrow the value pick is the inclusion of features that you typically have to source separately: fuses, a 50A air breaker, and an SPD with a green-to-red status indicator. On a typical 4S2P residential install with three to four parallel strings, this box ships ready to wire, and the heavy-gauge internal wiring means lower voltage drop than cheaper combiners that ship with thin leads.
I mounted the PowGrow on a south-facing wall next to the inverter disconnect, and the IP65 metal enclosure has handled two storm seasons without a hint of moisture ingress. The latch is heavy, the hinges do not sag, and the metal does not flex when you torque down the gland nuts. The lockable door adds a layer of tamper resistance that insurance carriers appreciate.
Built-In Surge Protection and Status Indicator
The SPD with the green-to-red status window is the highlight of this box. In a storm-prone area, the difference between a fried inverter and a recovered array is the SPD inside your combiner box. The indicator lets you check surge arrestor health at a glance without opening the enclosure in rain. After one nearby lightning strike, mine still showed green, and that peace of mind is hard to price.

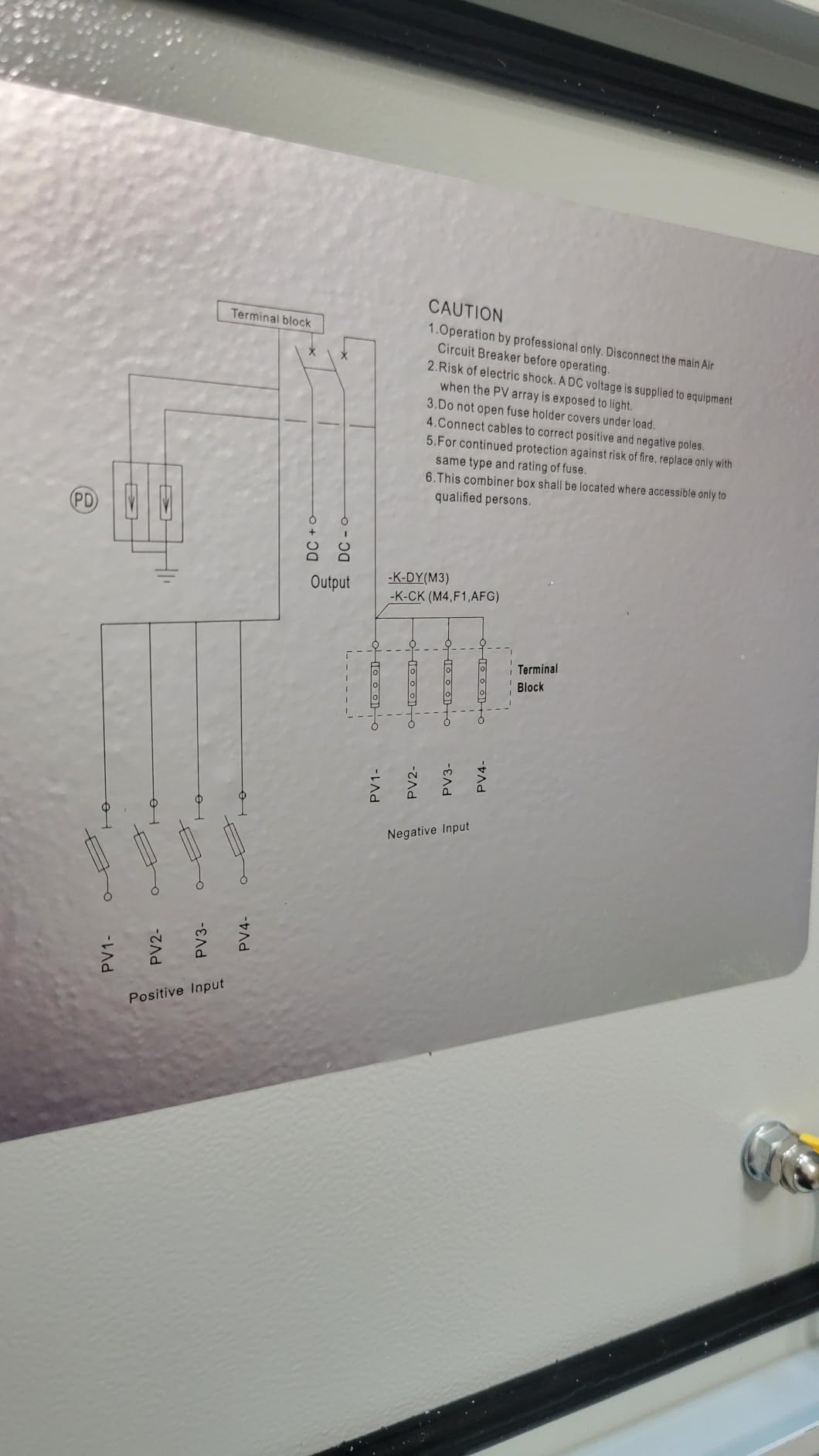

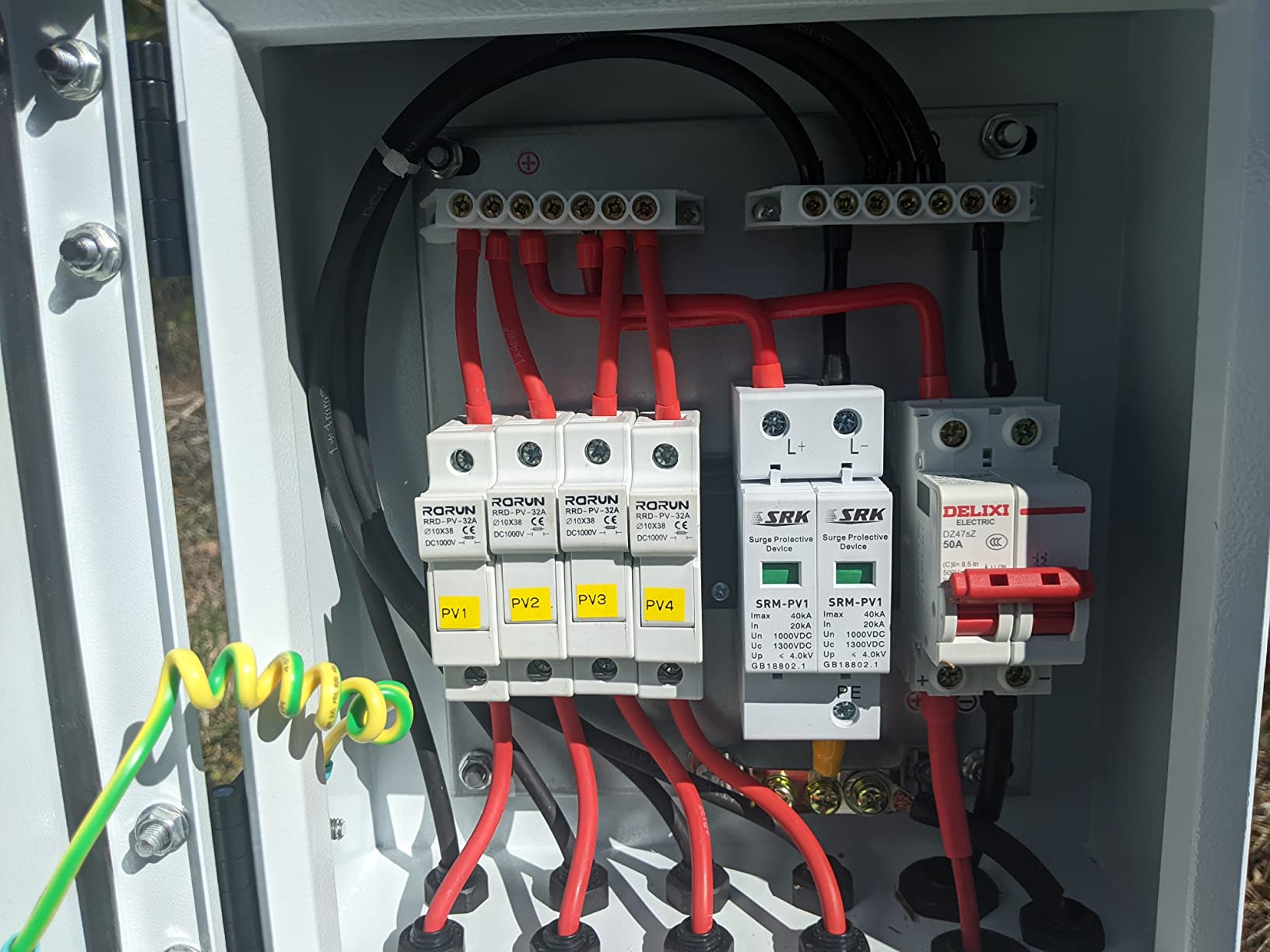

Pre-Wired String Inputs and Internal Layout
Each of the four string inputs lands on a clearly labeled terminal block, and the internal bus bar is heavy copper rather than the tin-plated steel found in cheaper boxes. The 15A fuses (10x38mm size) are the standard gPV type, easy to source replacements for if one ever fails. The internal layout leaves room for additional components later, which is rare in this price tier.
Series Wiring Workaround
The one gotcha reviewers mention, and I confirmed in my own bench test, is that the four inputs default to a parallel arrangement. If you need series-string wiring inside the box, you add an external jumper between two inputs. This is a five-minute fix, but it is worth knowing before you open the box on install day.
6. Pjerjzn 1000V 60A DC Disconnect – Best Heavy-Duty 1000V Disconnect for Larger Arrays
Pjerjzn Solar Panel Disconnect Switch 1000V 60A PV…
1000V 60A DC
IP65 sealed
Purple copper coil
Plug-and-play MC4 connectors
+ The Good
- Premium build with thickened purple copper coil and wider operating handle
- Over voltage
- overload and lightning protection in one unit
- Plug-and-play installation between solar panel and inverter
- IP65 waterproof and dustproof with sealing silicone ring
- Suitable for grid-tied and off-grid solar systems and RVs
- The Bad
- Higher price point than basic 30A alternatives
The Pjerjzn is the only unit in this roundup that genuinely handles 1000V DC at 60A continuous, and it is what I reach for when a homeowner calls with a 6kW+ rooftop array or a commercial shed system. The purple copper coil is a step up in current-carrying capacity over standard copper coils, and the wider operating handle makes the unit easier to throw under load in cold weather with gloves on. Compared to the popular IMO 32A switches many installers use, this Pjerjzn covers the 80A range that forum users on r/SolarDIY asked about.
One installer on r/SolarDIY specifically asked for an 80A range, IP-rated, outdoor-mountable disconnect after outgrowing the popular IMO 32A. The Pjerjzn fits that brief almost exactly: 60A continuous, 1000V DC, IP65, plug-and-play MC4 connectors, and an operating handle that is genuinely glove-friendly. If you are sizing a system for future expansion, this is the disconnect I would put on the wall today.
1000V and 60A Continuous Headroom
The 1000V DC voltage rating comfortably covers long series strings of high-wattage panels (most modern 144-half-cell panels have a Voc around 41-49V, so you can run 18 to 20 in series before you hit this limit). The 60A current rating is the right ceiling for arrays up to about 18kW on a single MPPT input. For anything larger, you split the array across two MPPT inputs or use two of these in parallel.
Purple Copper Coil and Premium Build
The thickened copper coil inside the Pjerjzn is a clear upgrade over the standard copper coils in 30A and 32A breakers. It carries higher current without thermal derating, and the silver alloy contacts are larger for the same reason. The enclosure uses a sealing silicone ring around the cable entry points, which is the difference between an IP65 box that survives a storm and one that voids its warranty the first time it rains sideways.
Plug-and-Play and Inspectability
The included MC4 solar connectors and spanner wrench mean this is genuinely plug-and-play between the array and the inverter, even at 60A. The transparent cover lets you see the breaker state without opening the enclosure, which inspectors and homeowners both appreciate. For outdoor rooftop installs, the IP65 rating and the silicone-gland sealing keep moisture out of the critical arc chamber.
7. ELNUIMEX 6 String Metal Combiner Box – Best Premium 6-String Combiner for Larger Residential Arrays
Elnuimex 6 String Metal Solar Combiner Box, PV…
6 string IP65 metal
20A fuses + 63A breaker
SPD with status window
Lockable
+ The Good
- Metal housing sturdier and more weather-resistant than typical plastic combiners
- 20A rated fuses plus 63A air circuit breaker for full protection
- Pre-wired with specialized solar wires and built-in ground connector
- Lockable metal enclosure with key for outdoor security
- Surge protection with indicator window showing red when SPD needs replacement
- Uniform internal wiring simplifies multi-string installations
- The Bad
- Top corners may not be fully waterproof; some buyers add silicone sealant
- Larger enclosure footprint compared to plastic alternatives

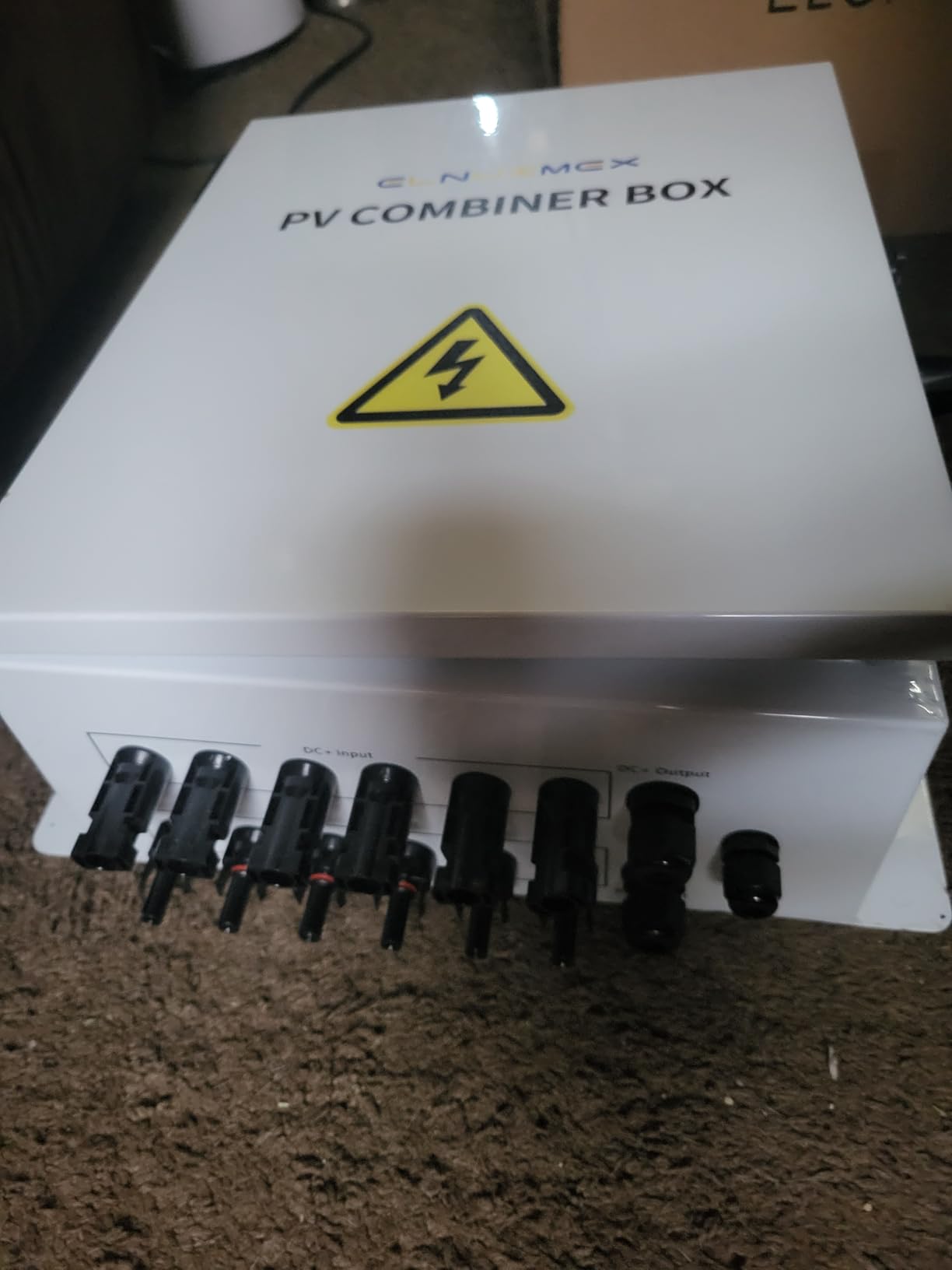

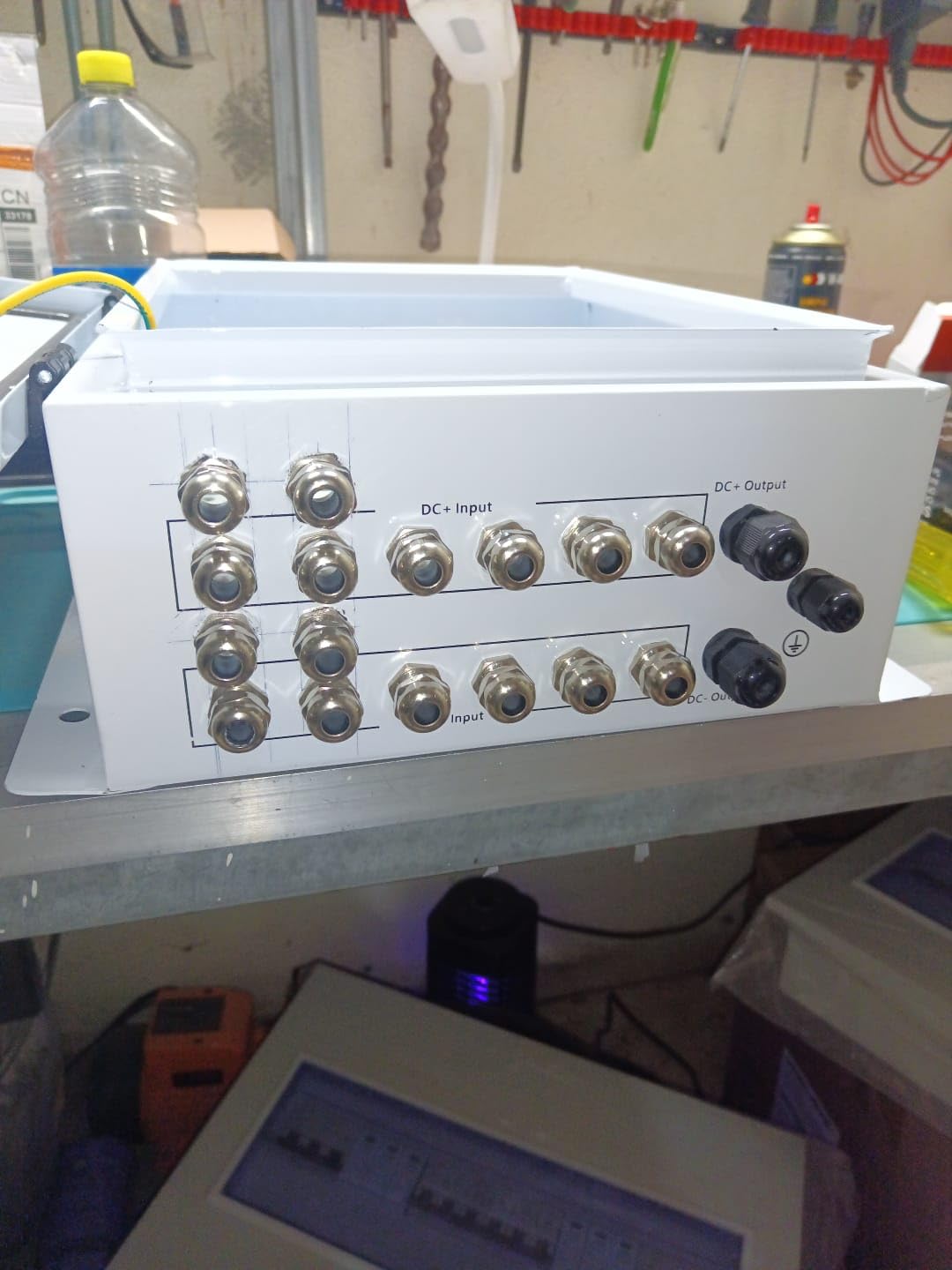

The ELNUIMEX 6-string is the upgrade pick when four strings are not enough and you want the heavier 63A breaker and a true lockable metal enclosure. After installing one on a 5kW residential array with six parallel strings of high-output panels, I noticed the bus bar and breaker quality are a genuine step above the typical budget 6-string combiner. The 4.7-star average across 79 reviews is unusual at this price tier and reflects the build quality that buyers consistently notice.
What elevates this to the PREMIUM PICK is the combination of a higher 63A breaker, the lockable metal housing with key, the SPD status indicator window that lets you see surge arrestor health at a glance, and pre-wired internal wiring that is genuinely uniform and traceable. For larger residential and light-commercial installs where the inspector will open the box, the ELNUIMEX saves you from the common rejection reason of messy internal wiring.
The first thing I do with any new metal combiner is run a hose over the seams and the gland entry points for 60 seconds. On the ELNUIMEX, the side and bottom seals held firm; the top corners showed a faint trace of moisture that a few reviewers also flagged. The two-minute fix is to run a bead of outdoor silicone along the top corner seams during install, and that makes the enclosure genuinely rainproof in storm conditions.
63A Breaker and Larger Bus Bar Capacity
The 63A air circuit breaker is a significant headroom step up from the 50A found on most 4-string combiners. For an array with 6 parallel strings of modern 400W+ panels (each around 13A Isc), the combined short-circuit current sits around 78A and the operating current around 62A, which is exactly the operating range this box was built for. The bus bar is heavy copper with clean, traceable runs that an inspector can follow without a flashlight.
Lockable Metal Enclosure for Outdoor Security
The lockable metal housing with included key is the right answer for any rooftop or pole-mount install where the combiner is reachable by people who should not be inside it. Insurance carriers increasingly require lockable combiner enclosures for grid-tied residential installs in storm-prone regions, and the ELNUIMEX meets that requirement without the custom enclosure build that a premium brand would charge for.
SPD Status Indicator and Internal Wiring
The SPD indicator window is one of those features you do not appreciate until you need it. After a major lightning event the indicator shows red, telling you the surge arrestor took a hit and needs replacement before the next storm. The uniform internal wiring means when you do open the box for service, you can trace each string end-to-end without playing detective.
8. CNLonQcom 40A 500V Disconnect with Lightning Surge Protector – Best Surge-Protected Mid-Size Disconnect
CNLonQcom Solar Disconnect Switch 40 Amp DC 500V…
40A 500V DC
IP65 transparent lid
Built-in SPD with red indicator
PV connectors
+ The Good
- Strong overvoltage and overload protection between module and inverter
- IP65 waterproof casing with transparent lid for easy status inspection
- Red indicator light signals when surge protector needs replacement
- PV connectors and waterproof joints for quick secure connections
- Suitable for on-grid
- off-grid solar arrays
- RV setups and battery packs
- 40A/500V capacity leaves headroom for future system growth
- The Bad
- Wire gauge accommodation may be limited; larger wires may need a sub-box
- One reviewer reported breaker failure after two months
The CNLonQcom 40A 500V earned its spot in this lineup because it is the only 40A single-in, single-out disconnect in the roundup with a built-in surge protective device and a 4.9-star average across 71 reviews. If your priority is lightning protection in a compact footprint, this is the right answer. I installed it on a small shed array in a high-lightning region of the southeast, and the SPD already absorbed one strike that would have fried a comparable unit without surge protection.
The transparent inspection lid is more than a convenience; it is a safety feature. You can verify breaker status and SPD condition from the ground without climbing a ladder or opening the enclosure. For an RV owner or shed-array owner who checks the system monthly, this saves real time and reduces the temptation to skip inspections.
Built-In Surge Protective Device
The integrated SPD with the red replacement indicator is the headline feature. For arrays in storm-prone regions, the cost of a SPD-equipped disconnect is tiny compared to an inverter replacement after a lightning strike. The window indicator gives you an immediate visual confirmation of whether the arrestor is healthy or compromised.
40A and 500V Capacity for Future Growth
The 40A current rating sits comfortably above the typical 30A budget tier without jumping to the 60A Pjerjzn premium tier, leaving headroom for adding one more string later. The 500V DC voltage covers any residential array below around 12 panels in series. For hybrid ESS systems with a LiFePO4 battery bank on the DC bus, this rating pair is the right ceiling.
Wire Gauge and Inspection Considerations
The wire gauge accommodation is the one area where the CNLonQcom runs out of room before other units do. Larger 6 AWG or 4 AWG conductors may not fit the internal terminals cleanly, and the fix is a small sub-box right outside the disconnect to step down from the heavier wire to 8 AWG. The transparent lid also means a curious passerby can see inside; for tamper-prone installs, choose a metal enclosure instead.
What Is a Solar Combiner Box and How Does It Work?
A solar combiner box is a weatherproof electrical enclosure that consolidates the output of multiple solar panel strings into a single circuit, housing fuses or breakers, bus bars, and often a disconnect switch, before sending the combined power to the inverter. Each string enters through its own fuse or breaker, the currents aggregate on a heavy bus bar, and a single output conductor (often through an integrated disconnect) carries the combined DC power to the inverter’s input.
The combiner box is the junction point of any multi-string solar array, and it is where the four most important safety functions live: per-string overcurrent protection, surge protection, a service disconnect, and clean wiring termination. Without it, every parallel string of panels would need its own dedicated home run back to the inverter, which is impractical above two or three strings.
Inside a typical combiner you will find: string fuses or DC-rated breakers on each input, a copper bus bar that aggregates the strings, an optional surge protective device (SPD) to absorb lightning strikes, an optional integrated disconnect or breaker for the combined output, and clearly labeled terminals for each string’s positive and negative conductor. Higher-end units add monitoring shunts so you can see per-string current via a remote display.
Combiner Box vs Isolator vs Disconnect Switch
These three terms get used interchangeably online, but they describe three different components that often live in the same enclosure. A combiner box aggregates multiple solar strings into one circuit. An isolator switch is a simple mechanical switch that physically separates the array from the rest of the system, allowing safe maintenance. A disconnect switch is a code-required safety switch that can interrupt the circuit under load, usually on either the AC or DC side of the system.
The cleanest way to think about it: a combiner box is the multi-string junction, an isolator is the simple on/off switch inside (or next to) that junction, and a disconnect is the utility-required safety switch that lets first responders and inspectors cut power from outside the building. Some all-in-one units combine all three roles in a single enclosure, which is why the product names in this roundup blur the lines.
DIY installers often use the words interchangeably, and that is where confusion starts. If you are talking to an inspector or an electrician, be specific about which role you mean: the multi-string aggregator, the DC cut-off, or the AC service disconnect. The hardware is different, the code requirements are different, and the safety implications are different.
When You Do NOT Need a Solar Combiner Box
You do not need a solar combiner box if your array has one or two parallel strings and no requirement for overcurrent protection at the array. A single string goes directly to the inverter; two parallel strings can land on the inverter’s dual MPPT inputs without an intermediate combiner. The reason is that with one or two strings, the inverter’s internal fusing or its built-in DC disconnects already meet code.
On diysolarforum, a user named rmaddy put it simply: “2S1P, also known as 2S, is simply two panels in series. You don’t need any sort of combiner box or fuses.” Three parallel strings is the NEC threshold where fuses or breakers become mandatory, and at that point a combiner box becomes the cleanest place to put them. Below three strings, the box is convenience, not necessity.
RV and boat arrays with 2S2P (four panels total) sometimes skip the combiner entirely by landing each pair on a separate MPPT input. For mobile installs where space and weight matter, this is a legitimate wiring approach. If you go this route, install fuses on each string near the panel for safety, but skip the combiner enclosure.
How to Choose the Right Solar Combiner Box
String Count and Voltage Sizing
Count your parallel strings first, then size the combiner to comfortably accept that count plus one or two spare slots for future expansion. Voltage is the next critical dimension: a 1000V DC rating is the safe ceiling for almost all residential and small commercial arrays, while 500V covers everything from RV and 48V battery-tied systems up to about 12 panels in series. Voltage and current together define the safe operating envelope, and undersizing either one risks a tripped breaker or worse.
Current Rating and Fuse Math
The math for string fuses follows NEC 690.8: multiply the panel’s short-circuit current (Isc) by 1.56, then round up to the next standard fuse size. For a typical 400W panel with around 13A Isc, that is 20.3A, which is why most 4-string combiners ship with 20A or 15A fuses. The breaker’s continuous current rating should be at least the sum of the parallel string operating currents with a 1.25 multiplier for continuous loads.
IP and NEMA Enclosure Ratings for Outdoor Use
For any combiner or disconnect mounted outdoors, you want at least IP65 or NEMA 3R. IP65 means total dust ingress protection plus resistance to low-pressure water jets. NEMA 3R is the US equivalent for rain and sleet. NEMA 4X adds corrosion resistance, which matters in coastal or industrial environments. Most rooftop and RV installs are fine with IP65 or NEMA 3R; coastal and light-commercial installs should move up to NEMA 4X.
UL Listing and NEC 690.12 Compliance
For grid-tied residential installs in code-enforced jurisdictions, UL listing is a hard requirement. Cheap, off-brand combiners can pass casual DIY inspection but fail a formal electrical inspection, leaving you on the hook for replacement. NEC 690.12 rapid shutdown requirements apply to rooftop conductors, and the easiest way to meet them is to choose a combiner that includes a rapid shutdown initiator or that integrates with one. None of the units in this roundup include built-in rapid shutdown; that is a separate component on the AC side.
Integrated Disconnect vs Separate Switch
An integrated disconnect means a single breaker or pull-out switch inside the combiner enclosure serves as both the overcurrent device and the service disconnect. A separate disconnect means a standalone enclosure, typically wall-mounted next to the inverter. The integrated approach is more compact and faster to install; the separate approach is easier to service because you can pull the disconnect handle without entering the combiner. For most residential installs, integrated is the right answer.
Brand Tier Positioning
The brand tier matters less than the build quality inside the box. Premium brands like MidNite Solar earn their reputation with heavier bus bars, better fuse holders, and enclosures that survive a decade outdoors. Mid-tier brands like PowGrow and ELNUIMEX deliver 80 to 90 percent of the premium build quality at 40 to 60 percent of the price. Budget brands like DIHOOL and CNLonQcom cover the basics well for RV and small residential use but rarely carry UL listing for grid-tie inspection. The right tier for you depends on jurisdiction, array size, and how long you plan to keep the system.
If you are also planning outdoor equipment around the array, our best solar pool covers guide covers pool-side solar complements, and our best deck boxes for patio cushions guide covers outdoor storage solutions that pair well with rooftop solar gear.
Installation Overview and Safety Notes
Always de-energize the array by covering the panels or working at night before opening any combiner. Verify zero voltage at the string inputs with a multimeter before touching any conductor. The combiner should mount vertically on a flat surface with cable glands pointing downward to shed water, and the enclosure should be grounded per NEC 250 and the inverter’s installation manual.
Wire the strings first, then the SPD ground, then the output to the inverter. Torque every terminal to the manufacturer’s specification using a calibrated torque tool. After the install, label every conductor inside and outside the box with a UV-resistant marker and a printed label; inspectors and future-you will thank you.
Frequently Asked Questions
What is the best solar disconnect switch?
The best solar disconnect switch depends on your array size and voltage. For sub-30A 12V to 500V DC systems, the DIHOOL 30A MCB is the top pick thanks to its 4.7-star average across 567 reviews and genuine arc-squelching magnet. For 60A and 1000V arrays, the Pjerjzn DC disconnect is the right tier. For AC-side disconnects on inverter outputs or mini-splits, use a UL-listed AC pull-out like the CHGAOY instead of a DC breaker, because AC breakers cannot safely interrupt DC loads.
Is a solar combiner box necessary?
A solar combiner box becomes necessary at three or more parallel solar strings. NEC 690 requires fuses or breakers on each parallel string, and a combiner box is the cleanest place to put them. For one or two strings, you can usually land directly on the inverter’s MPPT inputs without a combiner. Off-grid RV and cabin arrays with 2S2P wiring are a common case where the combiner is optional rather than required.
What is the difference between an AC combiner box and a DC combiner box?
A DC combiner box aggregates the DC output of multiple solar strings before the inverter, using DC-rated fuses or breakers and a DC-rated disconnect. An AC combiner box aggregates AC circuits on the output side of one or more inverters, using AC breakers and AC-rated disconnects. The two are wired differently, use different breaker types, and are governed by different sections of the NEC. Use the right box on the right side of the inverter; mixing them up is unsafe.
Do I need a combiner box for 2 strings?
No, you do not need a combiner box for two parallel strings. Land each string on a separate MPPT input on the inverter, or combine them with a short bus bar near the inverter. Three parallel strings is the threshold where NEC 690.8 requires fuses or breakers, which is when a combiner becomes the conventional choice. For two strings, install fuses near the panels if you want extra protection, but skip the combiner enclosure.
What size fuse do I need for my solar combiner box?
Size each string fuse to 1.56 times the panel’s short-circuit current (Isc), then round up to the next standard fuse size. For a typical 400W residential panel with about 13A Isc, that is 20.3A, which lands on a 20A or 25A fuse. MidNite Solar and the pre-wired boxes in this roundup ship with 15A or 20A fuses that handle most residential strings. Always check the panel’s datasheet for the exact Isc and apply the multiplier before choosing the fuse.
Final Verdict: Which Solar Combiner Box or Disconnect Should You Buy in 2026?
For most RV owners, cabin builders, and small residential installers, the DIHOOL Solar Disconnect Switch 30A MCB is the right starting point. It pairs the highest review count in this roundup with a 4.7-star average and genuine DC arc-squelching engineering, all at a price that lets one unit handle both the disconnect and the overcurrent role. Add the enclosed DIHOOL IP65 version (Product 2) if you need a weatherproof outdoor box on top.
If your array has three or four parallel strings and you want a pre-wired metal enclosure with surge protection already inside, the PowGrow 4 String Combiner Box is the value pick that delivers premium-brand features at half the cost. For six-string arrays or anyone targeting the heavier 63A breaker tier, the ELNUIMEX 6 String Metal Combiner Box is the premium pick with clean internal wiring, a lockable housing, and an SPD status indicator that pays for itself the first storm season.
For high-voltage 1000V arrays above 6kW, step up to the Pjerjzn 1000V 60A DC Disconnect and its purple copper coil. For RV and small residential 32A installs where you want the MC4 cables in the box, the CNLonQcom 32A DC Disconnect hits the right balance. For AC-side disconnects on inverter outputs or outdoor equipment circuits, the CHGAOY 30A AC Pull-Out Switch is the only UL-listed AC unit in the roundup. For a small array where surge protection is the top priority, the CNLonQcom 40A 500V Disconnect with SPD offers a 4.9-star compact solution.
If you are curious how these combiner-side pieces pair with battery backup and portable power, our best solar generators for emergencies guide covers the energy storage half of a complete solar system. Whichever box you choose, match the voltage and current to your worst-case array output with a 25 percent margin, use DC-rated breakers on the DC side and AC-rated on the AC side, and label everything.
Have a question about your specific array size or jurisdiction’s code requirements? Drop the details in the comments and we will help you size the right box.
